TRANSPORT – HANDLING
FLEXYII_WSHP-IOM-0909-E Page 12

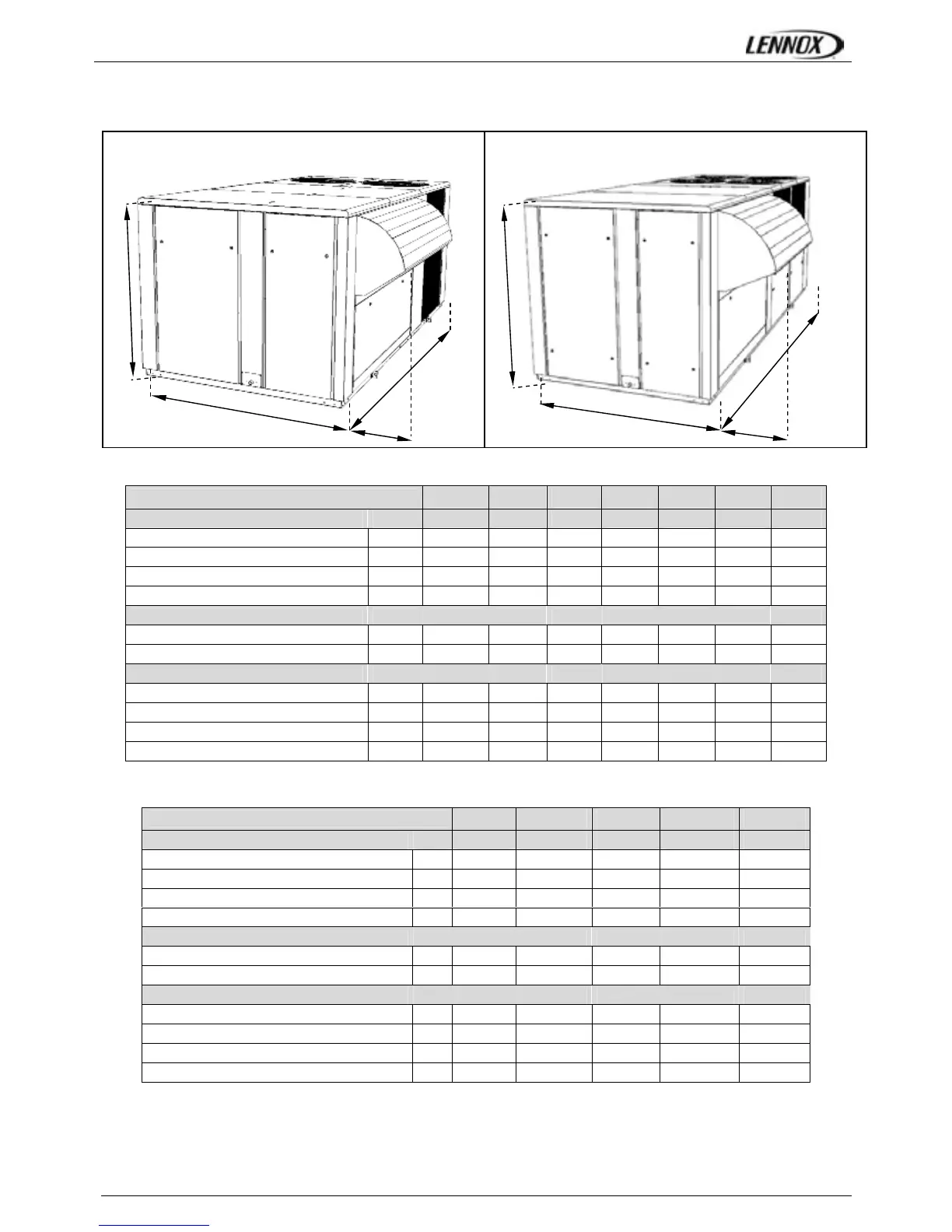

DIMENSIONS AND WEIGHTS
FLEXY2 FCM/FHM/FGM/FDM
85 100 120 150 170 200 230
View (F, G, H box)
F BOX F BOX F BOX G BOX G BOX H BOX H BOX
A
mm 2200 2200 2200 2200 2200 2200 2200
B
mm 3350 3350 3350 4380 4380 5533 5533
C
mm 1510 1510 1510 1834 1834 2134 2134
D
mm 360 360 360 450 450 615 615
Weight of standard units FCM
Without economiser kg 934 1009 1085 1367 1430 1650 1950
With economiser kg 990 1065 1141 1442 1505 1752 2052
Weight gas unit FGM
Standard heat Without economiser kg 1041 1116 1192 1608 1671 1914 2214
Standard heat With economiser kg 1097 1172 1248 1683 1746 2016 2316
High heat without economiser kg 1111 1186 1262 1631 1694 1954 2254
High heat With economiser kg 1167 1242 1318 1706 1769 2056 2356
WSHP FWH/FWM
85 100 120 150 170
View (F & G box)
F BOX F BOX F BOX G BOX G BOX
A
mm 2200 2200 2200 2200 2200
B
mm 3350 3350 3350 4380 4380
C
mm 1510 1510 1510 1834 1834
D
mm 360 360 360 450 450
Weight of standard units FWH
Without economizer kg 797 883 969 1250 1313
With economizer kg 853 939 1026 1325 1388
Weight gas unit FWM
Standard heat Without economiser kg 904 990 1076 1491 1554
Standard heat With economiser kg 960 1046 1133 1566 1629
High heat without economiser kg 974 1060 1146 1514 1577
High heat With economiser kg 1030 1116 1203 1589 1652
F & G BOX H BOX
A
D
B
C
D
A
B
C
