Lennox G32 SERIES Unit Information

Page 5

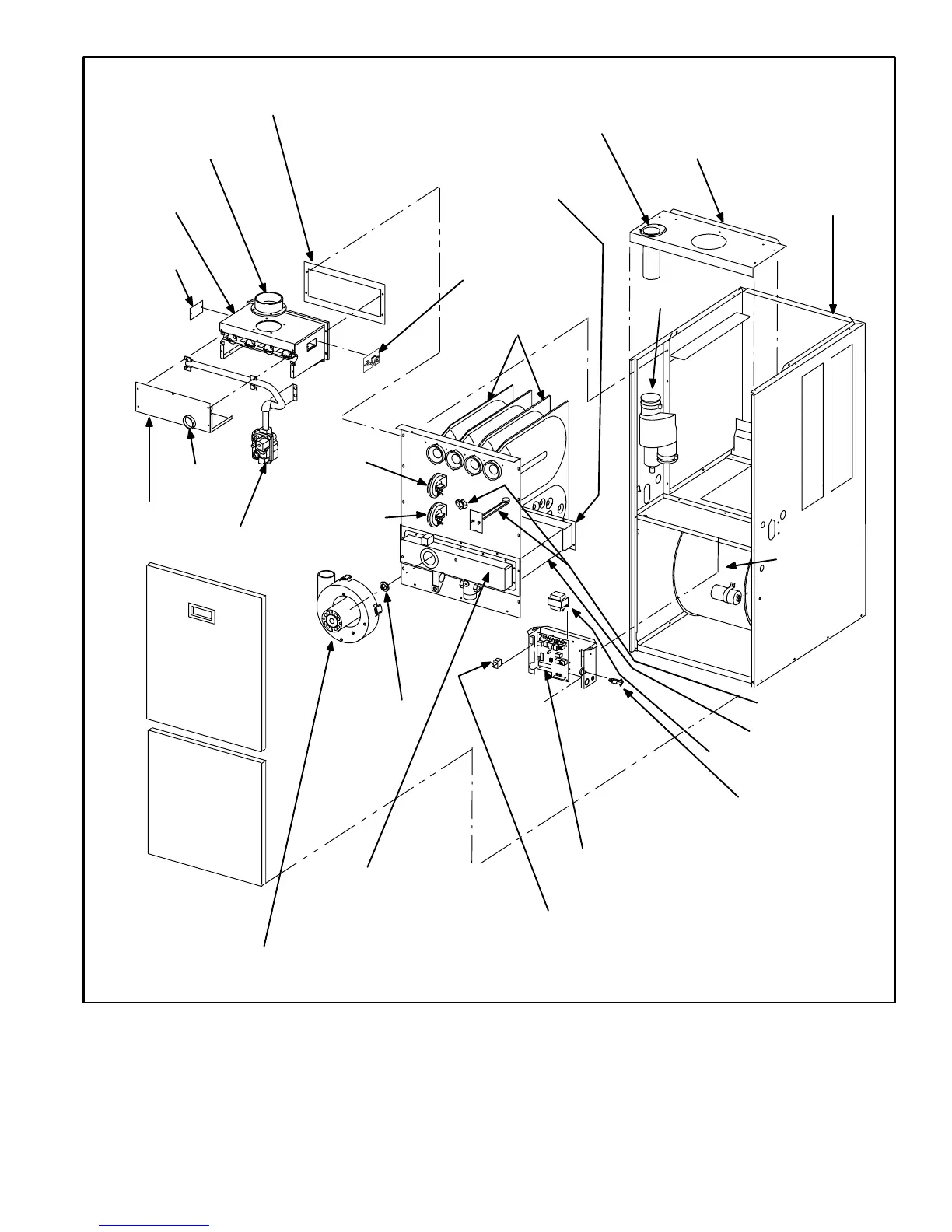

FIGURE 1
G32 PARTS ARRANGEMENT
TOP CAP
CABINET
GLASS FIBER GASKET
FRESH AIR
INTAKE FITTING
BURNER BOX
ASSEMBLY
PATCH
PLATE
PATCH PLATE WITH
BARBED FITTING
AND FLAME
ROLL−OUT SWITCH
TWOSTAGE
GAS VALVE AND
MANIFOLD
BURNER
BOX
COVER
FLAME SIGHT
GLASS
DuralokPlus
TM
HEAT EXCHANGER
ASSEMBLY
CONDENSER COIL
CONTROL TRANSFORMER
CONTROL VOLTAGE
CIRCUIT BREAKER
WARM
HEADER
(COLLECTOR)
BOX
COLD HEADER
(COLLECTOR)
BOX
TWO−SPEED
COMBUSTION AIR
INDUCER
COMBUSTION
AIR
ORIFICE
BLOWER
ACCESS
DOOR
BURNER
ACCESS
PANEL
FLUE
TRANSITION
LOW HEAT
DIFFERENTIAL
PRESSURE
SWITCH
SUPPLY
AIR
BLOWER
PRIMARY LIMIT
(ALTERNATE STYLES)
FLUE COLLAR
DOOR INTERLOCK SWITCH
SURELIGHT
TM
TWO−STAGE
INTEGRATED CONTROL BOARD
HIGH HEAT
DIFFERENTIAL
PRESSURE
SWITCH
(−75 only)
