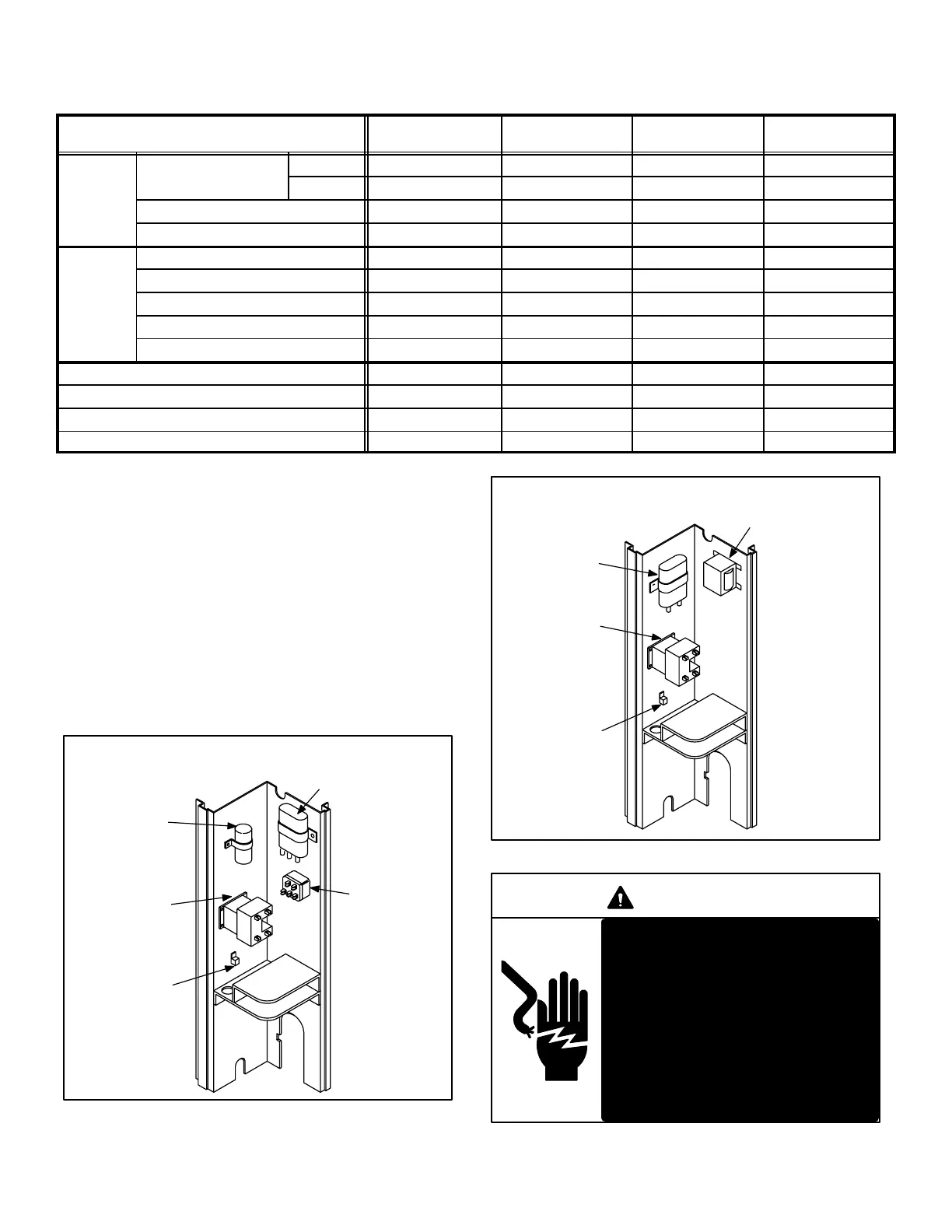

SPECIFICATIONS (continued)
Model No.
HS24Ć411
HS24Ć413
HS24Ć461
HS24Ć463
HS24Ć511
HS24Ć513
HS24Ć651
HS24Ć653
Net face area Outer coil 14.70 14.70 20.00 20.00
Condenser (sq. ft.) Inner coil Ć Ć Ć Ć 9.80 Ć Ć Ć Ć 15.40
Coil Tube diameter (in.) & no. of rows 3/8 Ċ 1 3/8 Ċ 1.67 3/8 Ċ 1 3/8 Ċ 1.77
Fins per inch 20 20 20 20
Diameter (in.) & no. of blades 20 Ċ 3 20 Ċ 3 24 Ċ 4 24 Ċ 4
Condenser Motor hp 1/6 1/6 1/4 1/4
Fan Cfm 2700 2450 3900 4000
Rpm 840 840 835 830
Watts 205 210 340 355
*Refrigerant Ċ 22 charge furnished 5 lbs. 15 oz. 9 lbs. 6 oz. 9 lbs. 0 oz. 11 lbs. 5 oz.
Liquid line (o.d. in.) connection (sweat) 3/8 3/8 3/8 3/8
Suction line (o.d. in.) connection (sweat) 3/4 7/8 7/8 1Ć1/8
Shipping weight (lbs.) 1 package 182 223 238 271
*Refrigerant charge sufficient for 25 ft. length of refrigerant lines.
I - UNIT INFORMATION
HS24 condensing units are available in 1, 1 Ć1/2, 2, 2 Ć1/2,
3, 3 Ć1/2, 4 and 5 ton capacities.
All major components (indoor blower/coil) must be
matched according to Lennox recommendations for the
compressor to be covered under warranty. Refer to the EnĆ
gineering Handbook for approved system matchups. A
misapplied system will cause erratic operation and can reĆ
sult in early compressor failure.
II - UNIT COMPONENTS
A - Control Box (Figures 1 and 2)
FIGURE 1
DUAL CAPACITOR
(C12)
START
CAPACITOR
(C7)
POTENTIAL
RELAY K31
(461,511,651)
COMPRESSOR
CONTACTOR
(K1)
HS24 UNIT CONTROL BOX
SINGLE PHASE
GROUNDING
LUG
FIGURE 2
FAN
CAPACITOR
(C1)
HS24 UNIT CONTROL BOX ALL
THREE PHASE UNITS
TRANSFORMER(T5)
J" VOLTAGE
UNITS ONLY
GROUNDING
LUG
COMPRESSOR
CONTACTOR
(K1)
DANGER
Shock Hazard
All single phase HS24 units use
singleĆpole contactors. One leg of
compressor, capacitor and conĆ
denser fan are connected to line
voltage at all times. Potential exĆ
ists for electrical shock resulting
in injury or death. Remove all powĆ
er at disconnect before servicing.
Can cause personal injury or death.
