LGH036−360 Agency

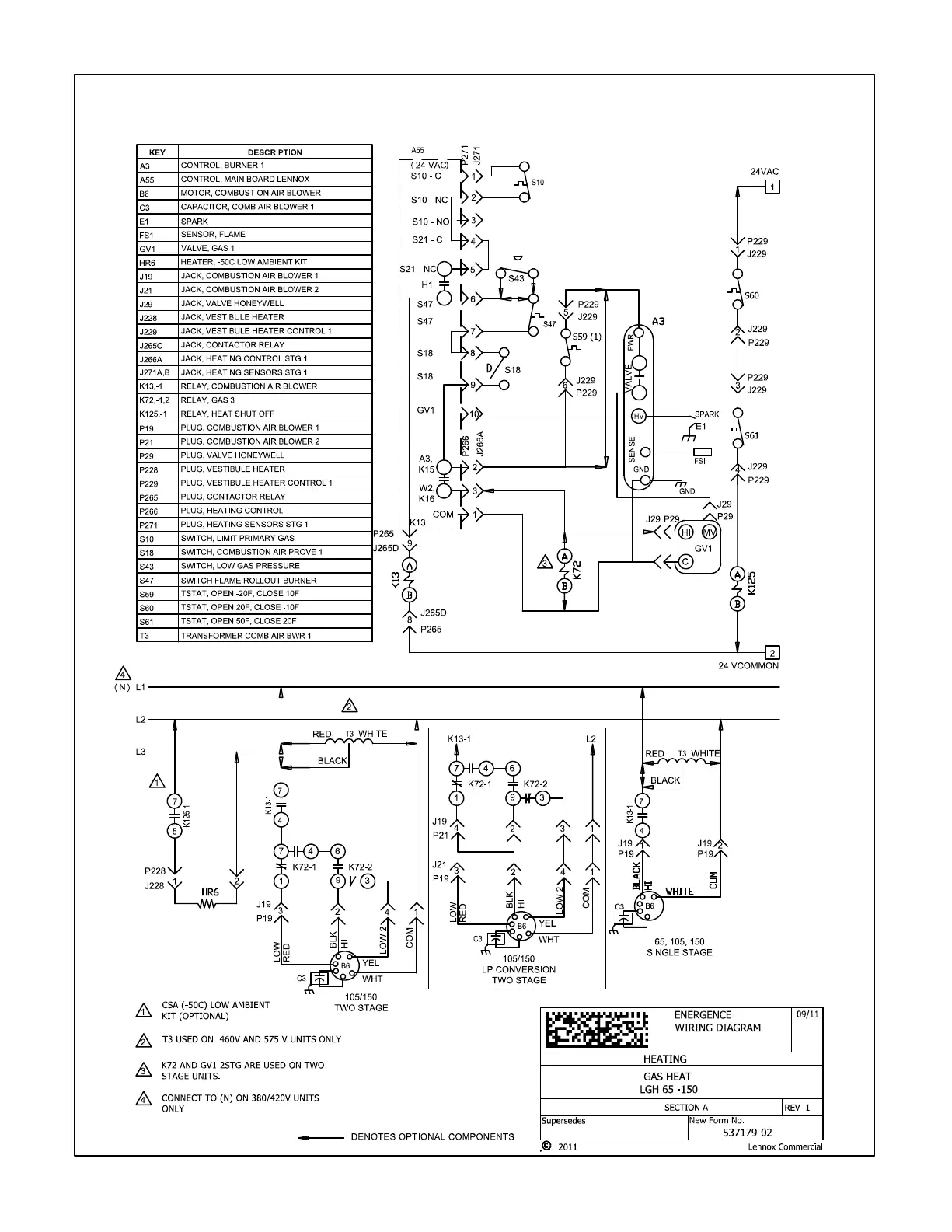

TYPICAL GAS HEAT SCHEMATIC
This schematic is typical. See the wiring schematic on the unit for actual unit wiring.
