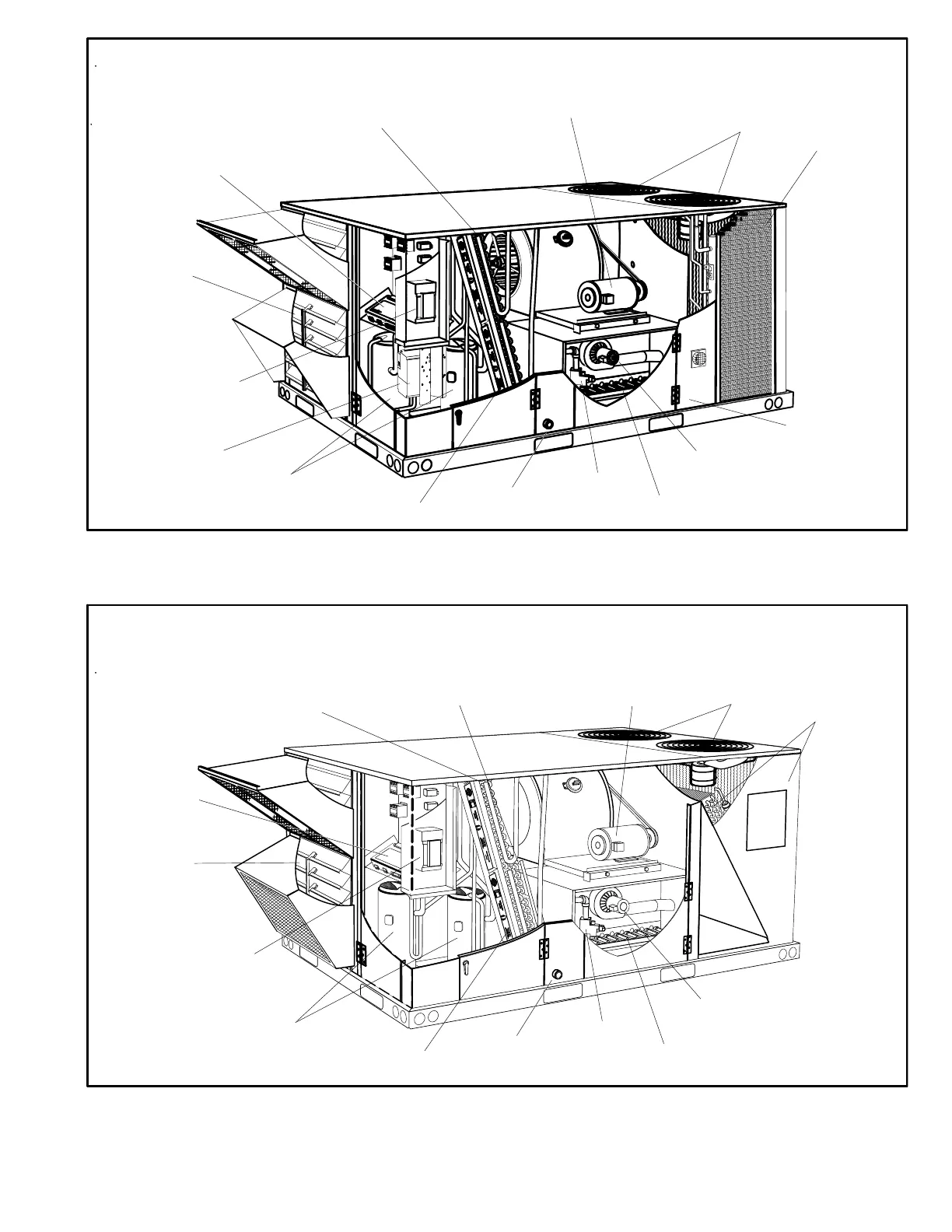

PARTS ARRANGEMENT - 092H, 102H, 120H, 150S
ALL-ALUMINUM COIL SYSTEM
FIGURE 1
3
3
UNIT
CONTROLLER
EVAPORATOR
COIL
CONDENSER
FANS
CONDENSER
COIL
COMPRESSORS
CONDENSATE
DRAIN
FILTERS
(FOUR - 20 X 25 X 2”)
ECONOMIZER
(OPTIONAL)
BLOWER
MOTOR
GAS VALVE
BURNERS
COMBUSTION
AIR INDUCER
DISCONNECT /
CIRCUIT BREAKER
(FACTORY OR FIELD
INSTALLED OPTION)
BLOWER
INVERTER
(OPTIONAL)
HINGED
ACCESS PANEL
(OPTIONAL)
PARTS ARRANGEMENT - 092H, 102H, 120H, 150H
FIN/TUBE COIL
FIGURE 2
UNIT
CONTROLLER
EVAPORATOR
COIL
CONDENSER
FANS
CONDENSER
COILS
COMPRESSORS
CONDENSATE
DRAIN
FILTERS
(FOUR - 20 X 25 X 2”)
ECONOMIZER
(OPTIONAL)
BLOWER
BLOWER
MOTOR
GAS VALVE
BURNERS
COMBUSTION
AIR INDUCER
REHEAT COIL
(Hot Gas Reheat
Units Only)
DISCONNECT /
CIRCUIT BREAKER
(FACTORY OR FIELD
INSTALLED OPTION)
33
33
LL
EE
NN
OO
XX
NN
LL
EE
NN
OO
XX
NN
BLOWER
