Lennox Mini-Split Service Manual / Page 49

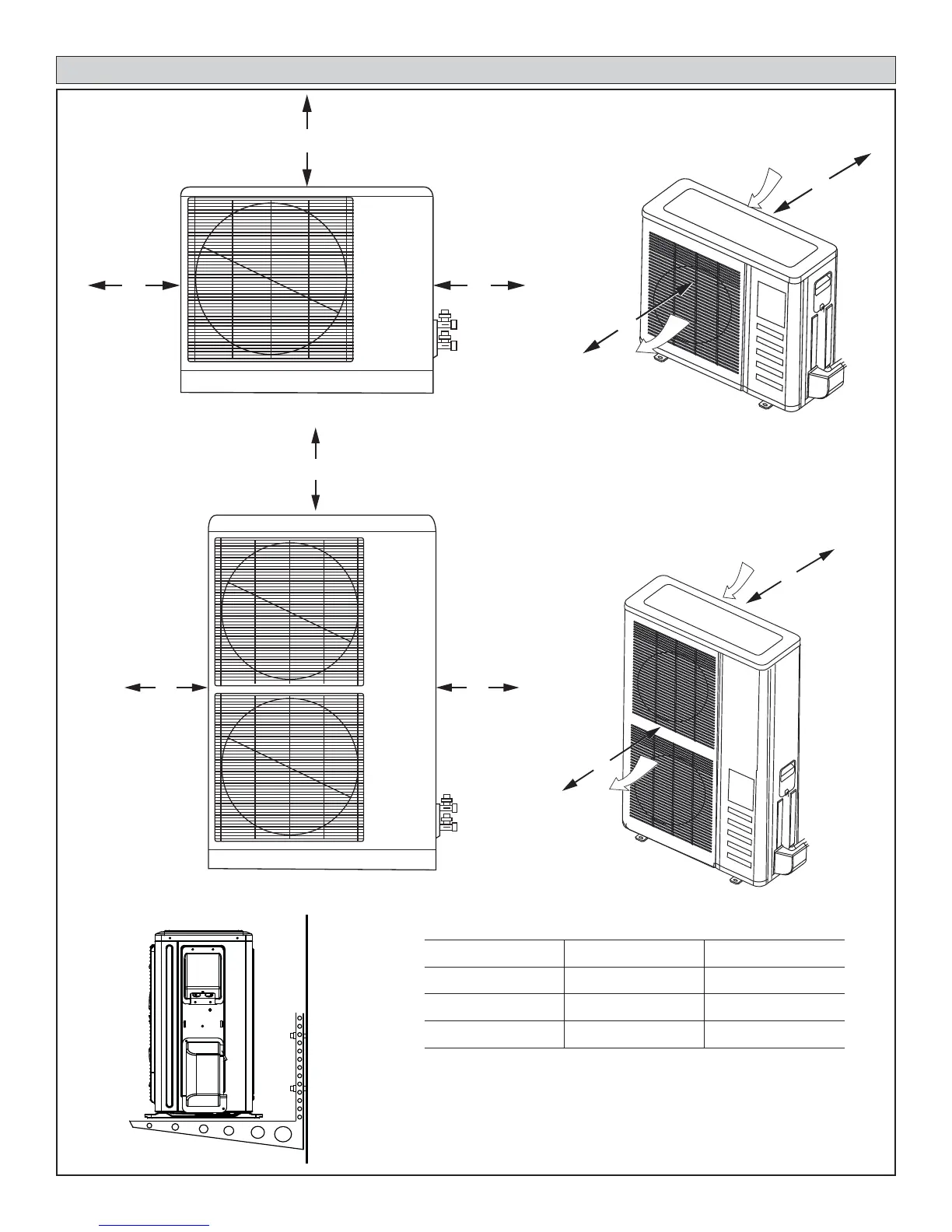

Outdoor Unit Clearances
A
C A
Air Outlet
Air Inlet
B
A
1
Dimension in. mm
A 24 610
B 79 2007
2
C 12 305
1
Clearance dimensions apply to both single-fan cabinets and
double-fan cabinets.
2
Minimum rear clearance can be 6 inches (152 mm) when
mounted on brackets and with no obstructions on the other
three sides.
A
C A
Air Outlet
Air Inlet
B
A
