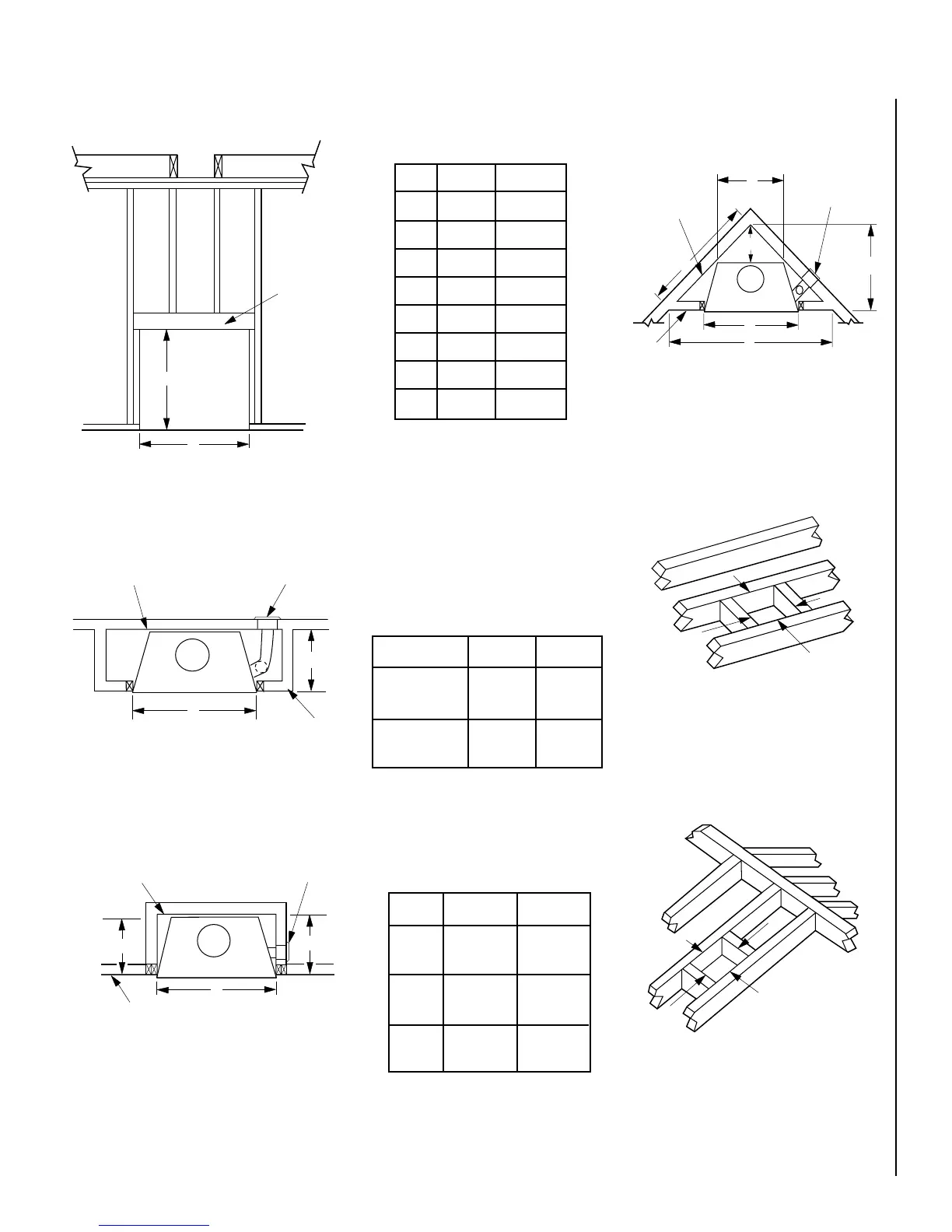

FRAMING SPECIFICATIONS
Figure 11
Figure 12
Figure 13
Figure 15
Figure 16
Figure 14
Framing Dimensions
A 48" 1219 mm
B 46 ¹⁄₂" 1181 mm
C 33" 838 mm
D 17 ¹⁄₂" 445 mm
E 81" 2057 mm
F 40 ³⁄₈" 1026 mm
G 24" 607 mm
H 23" 584 mm
J 57 ¹⁄₄" 1454 mm
Framing Dimensions for Roof
Pitch C D*
0/12 16 ¹⁄₂" 16 ¹⁄₂"
(419 mm) (419 mm)
6/12 16 ¹⁄₂" 19"
(419 mm) (483 mm)
12/12 16 ¹⁄₂" 23 ¹⁄₂"
(419 mm) (597 mm)
Framing Dimensions for Ceiling
Flue Type A B
FTF8 Vertical 16 ¹⁄₂" 16 ¹⁄₂"
(419 mm) (419 mm)
FTF8 Offset 30° 16 ¹⁄₂" 27"
(419 mm) (686 mm)
* Perpendicular to roof ridge
A
B
Ceiling Framing
C
D
Roof Framing
Header
Fireplace Framing
B
A
A
Outside Chase
G
H
Back Wall of Chase/Enclosure
Including Finising Materials
if any
Rough
Framing Face
(Unfinished Shown)
FOAK
Combustion
Air Kit - Optional
Corner Installation
J
D
A
E
F
Back Wall of
Chase/Enclosure
Including Finising
Materials
if any
Rough
Framing Face
(Unfinished Shown)
FOAK Combustion
Air Kit - Optional
C
A
G
Inside Chase
Back Wall of Chase/Enclosure
Including Finising Materials if any
Rough
Framing Face
(Unfinished Shown)
FOAK Combustion
Air Kit
Note: All framing dimensions calcu-
lated for 5/8" nailing flange depth and
1/2" dry wall at the fireplace face. If
sheathing the chase or finishing with
other thickness materials, calculations
will need to be made.
Note: C and G dimensions include 1"
clearance to combustibles.
