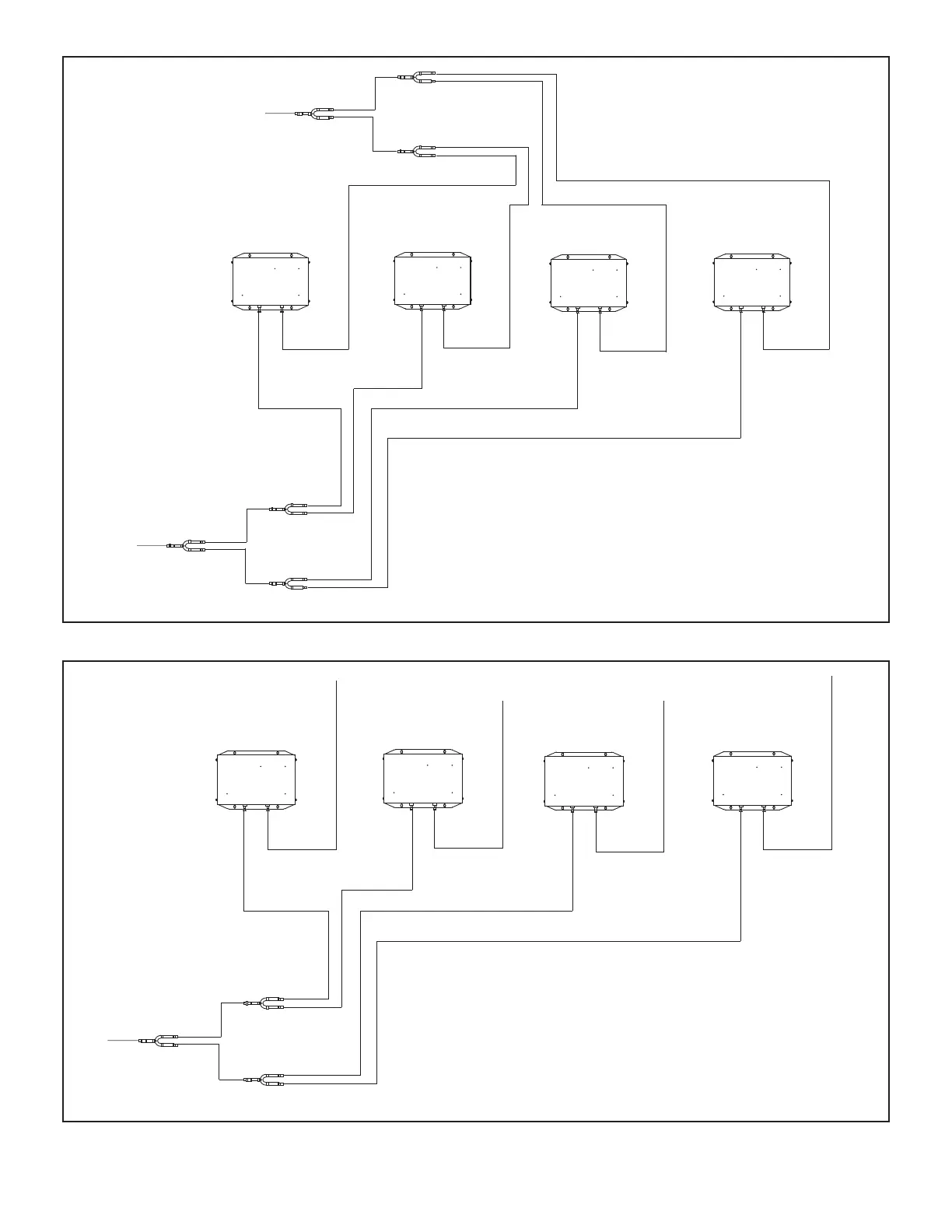

Figure 23. Four (4) Parallel Kits Connecting One (1) Large Coil
Connect to Outdoor Unit
Connect to Coil
Branch
Pipe
Kit
Branch
Pipe
Kit
Figure 24. Four (4) Parallel Kits Connecting Four (4) Coils Individually
Connect to Coil
Connect to Coil Connect to Coil
Connect to Coil
Connect to Outdoor Unit
Branch
Pipe
Kit
NOTE - Observe 24 in. straight pipe requirement on each side of
branch pipe kit. See Figure 25.
