Appendix A. CRU instructions
43

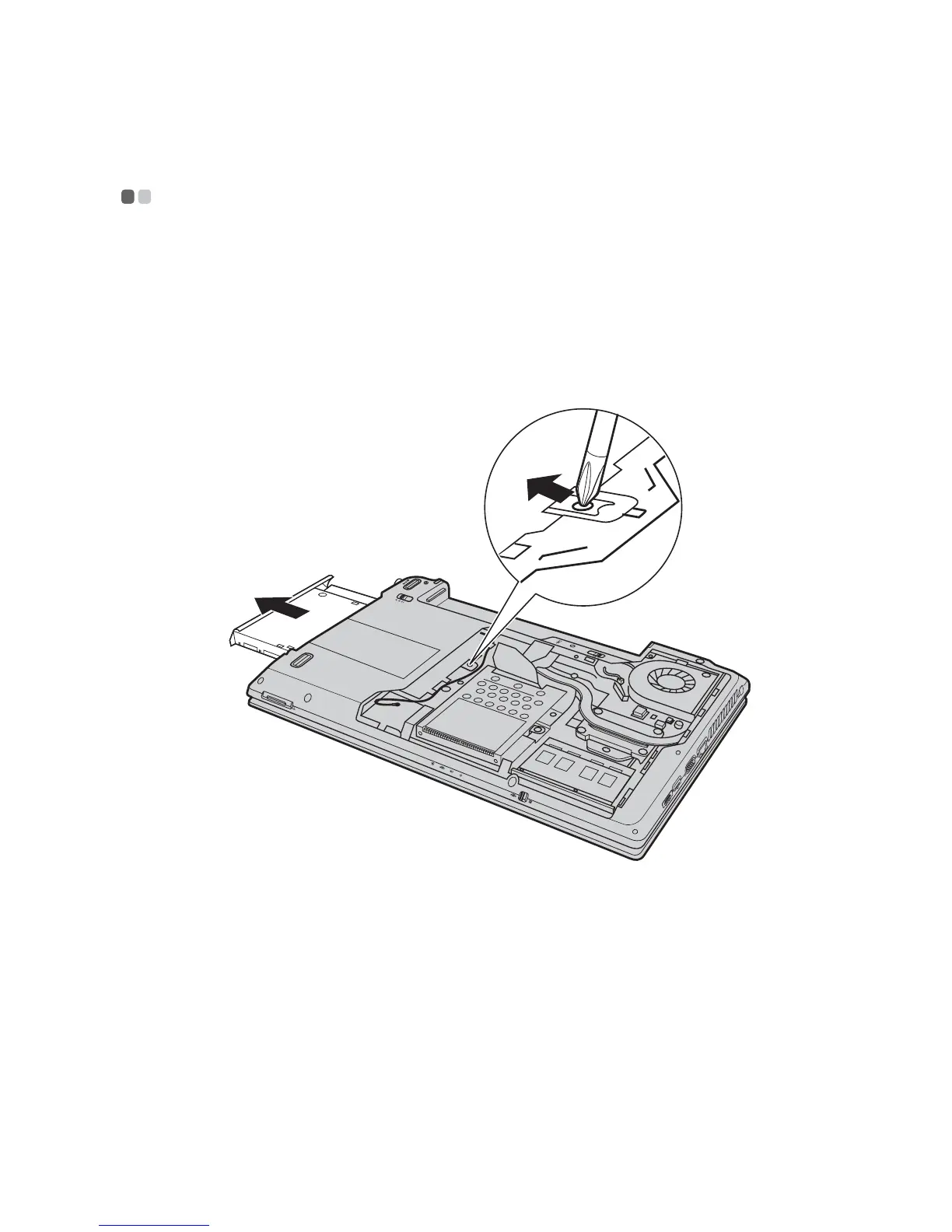

Removing the optical drive - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
To remove the optical drive, do the following:
1
Remove the Hard disk drive (HDD)/Memory/CPU (Central processing
unit)/Mini PCI Express Card slot compartment cover.
2
Remove the screw shown in the illustration .
3
Gently pull the optical drive out .
a
b
a
b

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Lenovo G565 and is the answer not in the manual?

Lenovo G565 Specifications

General IconGeneral
RAMUp to 4GB DDR3
Battery6-cell Lithium-Ion
Wireless802.11 b/g/n Wi-Fi
Webcam0.3 MP
Storage250GB or 320GB HDD
Display15.6-inch HD (1366 x 768)
GraphicsATI Radeon HD 4200 / ATI Mobility Radeon HD 5470
Operating SystemWindows 7 Home Premium
Optical DriveDVD-RW
Weight2.6 kg
ProcessorAMD Athlon II Dual-Core Mobile Processor
