Identifying parts on the system board
The system board (sometimes called the planar or motherboard) is the main circuit
board in your computer. It provides basic computer functions and supports a
variety of devices that are installed or that you can install later.

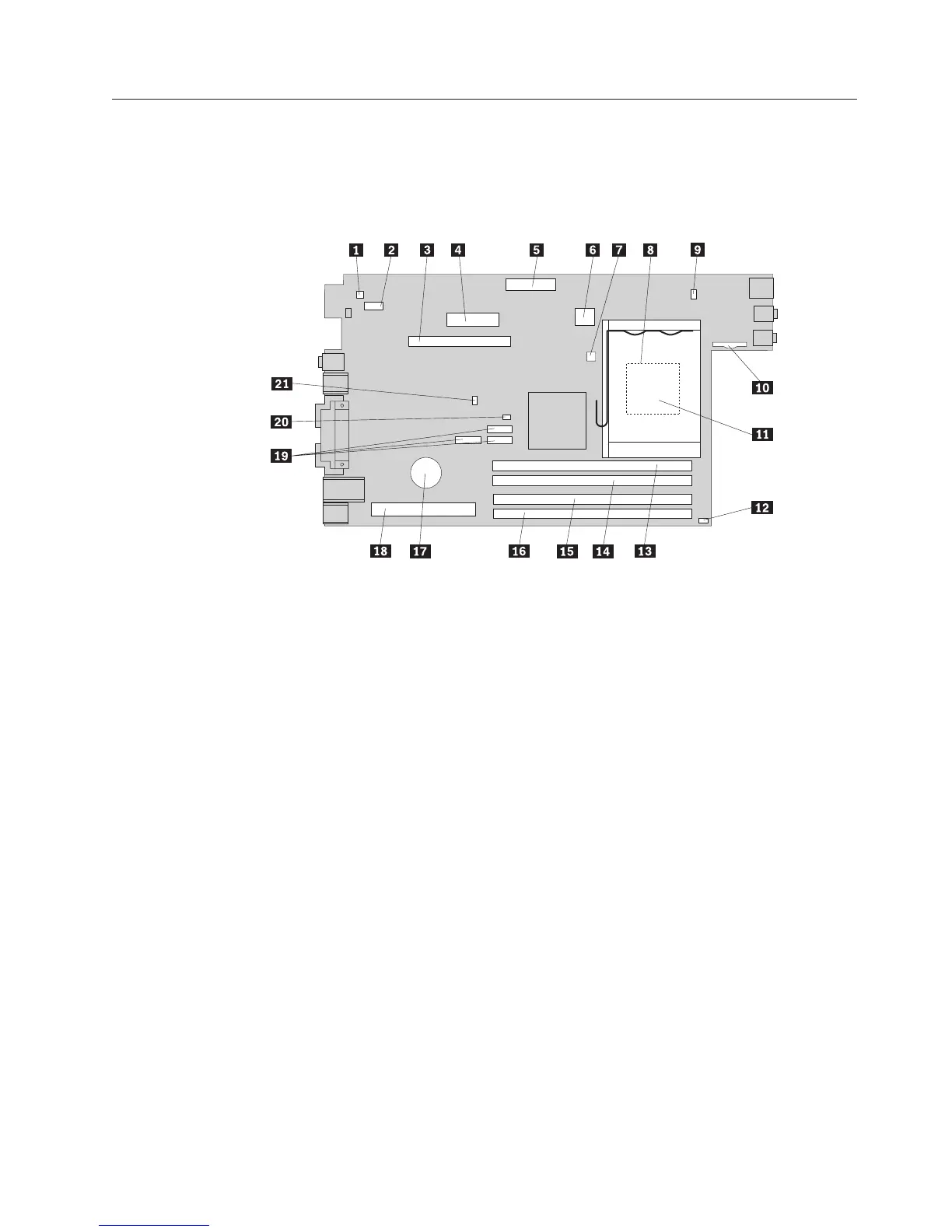

The following illustration shows the locations of parts on the system board.
1 Internal speaker connector 12 Fan connector 2
2 Serial connector 2 (COM2) 13 Memory connector 1
3 PCI Express (x16) graphics
adapter connector
14 Memory connector 2
4 Power supply connector 15 Memory connector 3
5 Diskette drive connector 16 Memory connector 4
6 12v power connector 17 Battery
7 Temperature sensor connector 18 PCI riser connector
8 Microprocessor heat sink 19 SATA IDE connectors (3)
9 Fan connector 1 20 Clear CMOS/Recovery jumper
10 Front panel connector 21 Cover presence switch (some models)
11 Microprocessor
Chapter 3. Installing options 23

Lenovo ThinkCentre M55 Specifications

General

Tcase	61.4 °C
Bus type	FSB
Stepping	R0
Processor cache	2 MB
Processor cores	2
Processor model	E6300
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor socket	LGA 775 (Socket T)
Processor codename	Conroe
Processing Die size	111 mm²
Processor frequency	1.86 GHz
Processor cache type	L2
Processor lithography	65 nm
Processor manufacturer	Intel
Processor front side bus	1066 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	65 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	7
Number of Processing Die Transistors	167 M
Audio system	High Definition Audio
Product type	PC
Motherboard chipset	Intel® Q963 Express
Memory slots	2x DIMM
Internal memory	1 GB
Memory clock speed	667 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	4 GB
Memory layout (slots x size)	2 x 0.5 GB
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD-ROM
Total storage capacity	80 GB
Power supply type	AC
Power requirements	120 - 230 V
External drive bays	1 x 5.25\
Internal drive bays	1 x 3.5\
Networking features	Gigabit Ethernet
Intel segment tagging	Enterprise, Professional
Compliance industry standards	IEEE802.3, IEEE802.3u, IEEE802.3ab
On-board graphics card	Yes
Discrete graphics card model	Intel® GMA 3000
Maximum graphics card memory	- GB
Operating system installed	Windows Vista Business
USB 2.0 ports quantity	8
Firewire (IEEE 1394) ports	0
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power supply	225 W
Chassis type	SFF
Product color	Black
Processor code	SLGW2
Processor ARK ID	27248
Processor package size	37.5 x 37.5 mm

Weight and Dimensions

Depth	358 mm
Width	310 mm
Height	88 mm
Weight	8500 g
