Lenovo ThinkCentre M55 User Manual

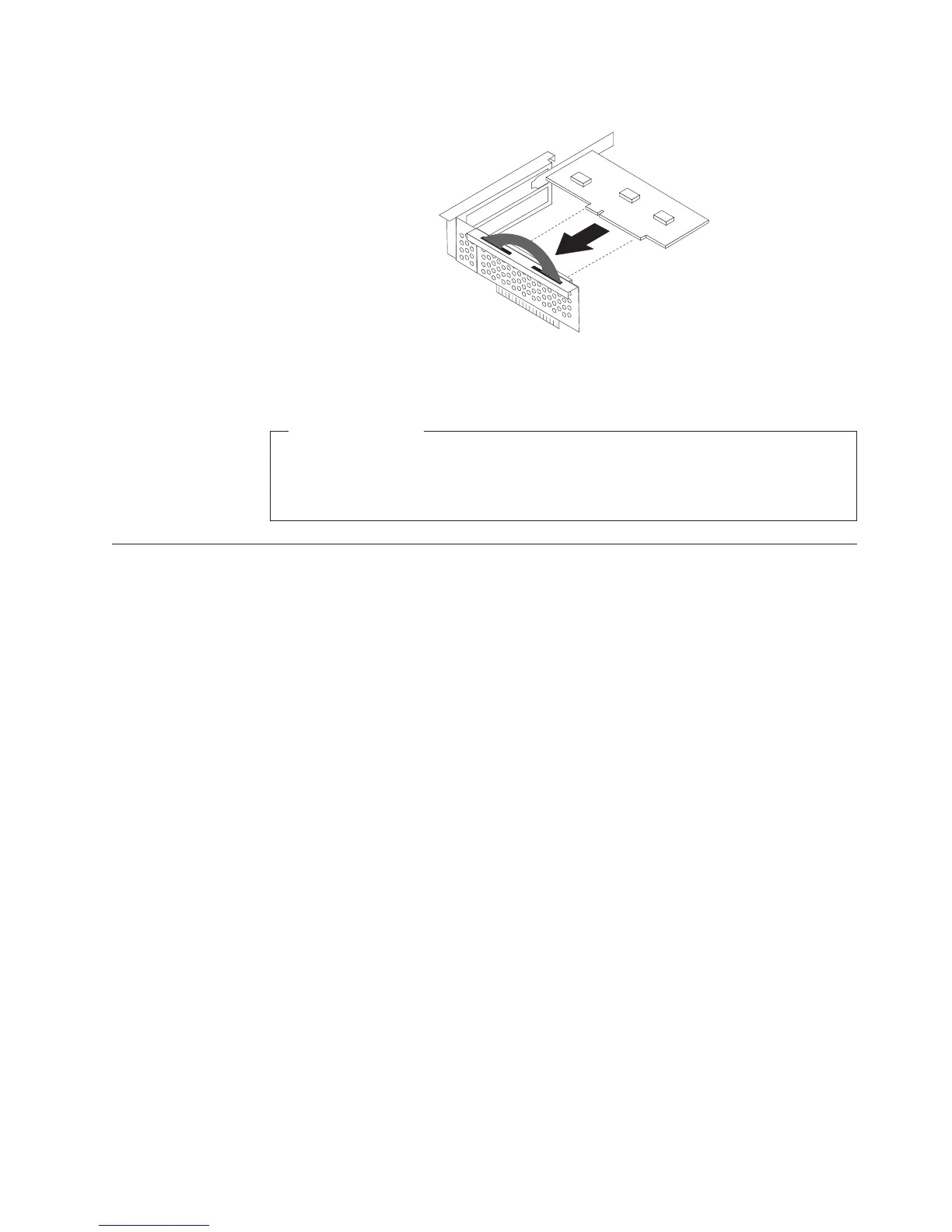

5. Install the adapter into the appropriate connector in the PCI riser.
6. Position the adapter latch to retain the adapters.
7. Reinstall the PCI riser assembly.
What to do next:
v To work with another option, go to the appropriate section.
v To complete the installation, go to “Closing the cover and connecting the
cables” on page 39.
Installing internal drives
This section provides information and instructions for installing and removing
internal drives.
Internal drives are devices that your computer uses to read and store data. You can
add drives to your computer to increase storage capacity and to enable your
computer to read other types of media. Some of the different drives that are
available for your computer are:
v Serial Advanced Technology Attachment (SATA) hard disk drives
v Parallel ATA hard disk drives
v Optical drives, such as CD drives or DVD drives
v Removable media drives
Note:
These different drives are also referred to as integrated drive electronics
(IDE) drives.
Internal drives are installed in bays. In this book, the bays are referred to as bay 1,
bay 2, and so on.
When you install an internal drive, it is important to note what type and size of
drive that you can install in each bay. Also, it is important to correctly connect the
internal drive cables to the installed drive.
Chapter 3. Installing options 27

Lenovo ThinkCentre M55 Specifications

General

Tcase	61.4 °C
Bus type	FSB
Stepping	R0
Processor cache	2 MB
Processor cores	2
Processor model	E6300
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor socket	LGA 775 (Socket T)
Processor codename	Conroe
Processing Die size	111 mm²
Processor frequency	1.86 GHz
Processor cache type	L2
Processor lithography	65 nm
Processor manufacturer	Intel
Processor front side bus	1066 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	65 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	7
Number of Processing Die Transistors	167 M
Audio system	High Definition Audio
Product type	PC
Motherboard chipset	Intel® Q963 Express
Memory slots	2x DIMM
Internal memory	1 GB
Memory clock speed	667 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	4 GB
Memory layout (slots x size)	2 x 0.5 GB
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD-ROM
Total storage capacity	80 GB
Power supply type	AC
Power requirements	120 - 230 V
External drive bays	1 x 5.25\
Internal drive bays	1 x 3.5\
Networking features	Gigabit Ethernet
Intel segment tagging	Enterprise, Professional
Compliance industry standards	IEEE802.3, IEEE802.3u, IEEE802.3ab
On-board graphics card	Yes
Discrete graphics card model	Intel® GMA 3000
Maximum graphics card memory	- GB
Operating system installed	Windows Vista Business
USB 2.0 ports quantity	8
Firewire (IEEE 1394) ports	0
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power supply	225 W
Chassis type	SFF
Product color	Black
Processor code	SLGW2
Processor ARK ID	27248
Processor package size	37.5 x 37.5 mm

Weight and Dimensions

Depth	358 mm
Width	310 mm
Height	88 mm
Weight	8500 g
