Lenze 13466184 EDBSL03 v20 EN, DE, FR, IT, ES 9

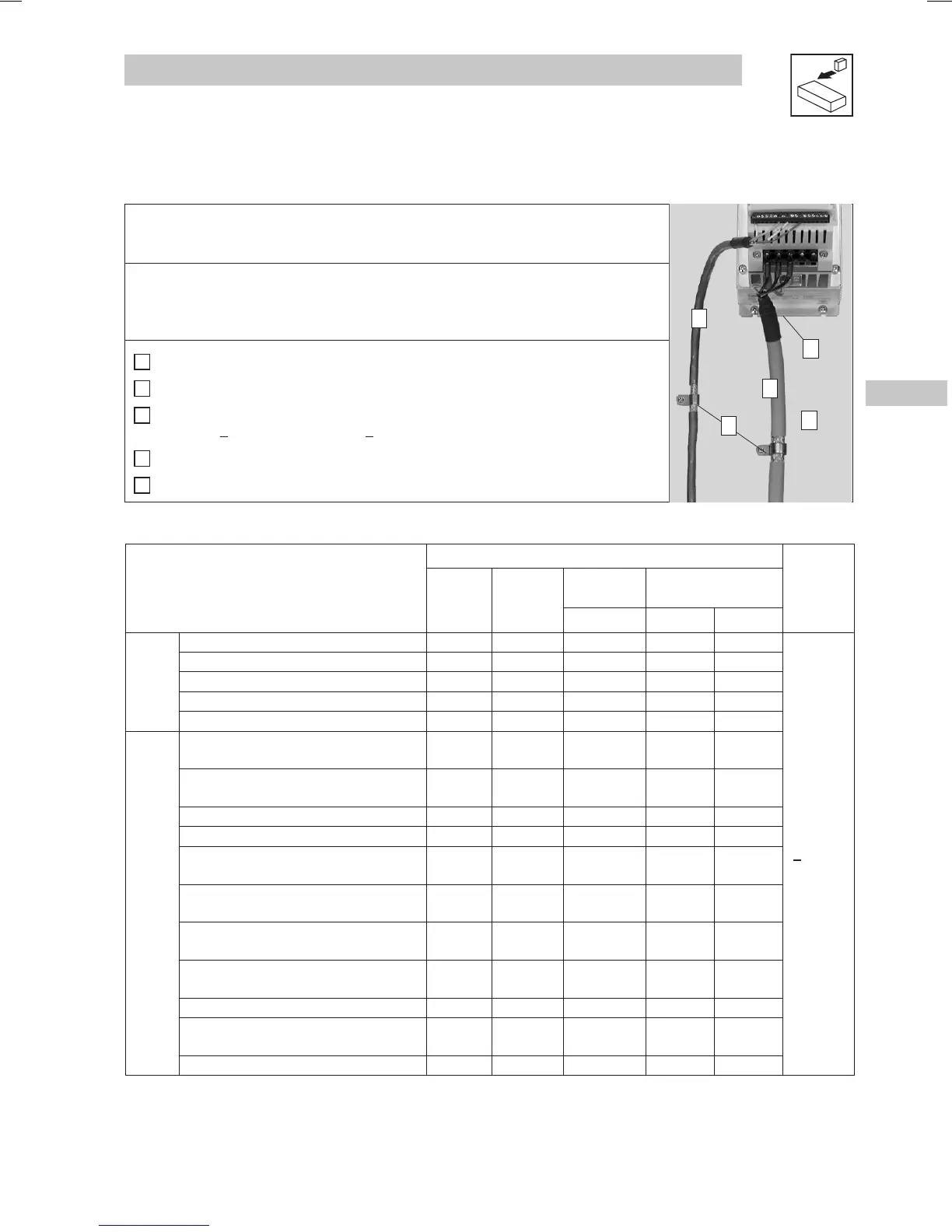

EMC
Compliance with EN 61800-3/A11
Noise emission
Compliance with limit value class A according to EN 55011 if installed in a control
cabinet with the appropriate footprint lter and the motor cable length does not
exceed 10m
A
Screen clamps
B
Control cable
C
Low-capacitance motor cable
(core/core < 75 pF/m, core/screen < 150 pF/m)
D
Electrically conductive mounting plate
E
Filter
Tmd005
B
C
D
A
E
3.2.2 Fuses/cable cross-sections
3.2 Electrical installation
3.2.1 Installation according to EMC requirements
(1)
Type
Recommendations E.l.c.b.
(2)
Fuse Miniature
circuit
breaker
(5)
Fuse
(3)
or
Breaker
(6)
Input Power Wiring
(L1, L2/N, L3, PE)
(N. America)
[mm²] [AWG]
1/N/PE
ESMD371L2YXA M10 A C10 A 10 A 2.5 14
> 30 mA
ESMD751L2YXA M16 A C16 A 15 A 2.5 14
ESMD112L2YXA M20 A C20 A 20 A 4
(4)
12
ESMD152L2YXA M25 A C25 A 25 A 6
(4)
12
ESMD222L2YXA M32 A C32 A 30 A 4 10
3/PE
ESMD371L2YXA ... ESMD751L2YXA
ESMD371L4TXA ... ESMD222L4TXA
M10 A C10 A 10 A 2.5 14
ESMD112L2YXA, ESMD152L2YXA
ESMD302L4TXA
M16 A C16 A 12 A 2.5 14
ESMD222L2YXA M16 A C16 A 15 A 2.5 12
ESMD402L4TXA M16 A C16 A 15 A 2.5 14
ESMD302L2TXA
ESMD552L4TXA
M20 A C20 A 20 A 4
(4)
12
ESMD402L2TXA
ESMD752L4TXA
M25 A C25 A 25 A 6
(4)
10
ESMD552L2TXA
ESMD113L4TXA
M40 A C40 A 35 A 6 8
ESMD752L2TXA
ESMD153L4TXA
M50 A C50 A 45 A 10 8
ESMD183L4TXA M63 A C63 A 60 A 16 6
ESMD113L2TXA
ESMD223L4TXA
M80 A C80 A 70 A 16 6
ESMD153L2TXA M100 A C100 A 90 A 16 4
(1) Observe the applicable local regulations.
(2) Pulse-current or universal-current sensitive earth leakage circuit breaker.
(3) UL Class CC or T fast-acting current-limiting type fuses, 200,000 AIC, required. Bussman KTK-R, JJN, JJS or equivalent.
(4) Connection without end ferrules or with attached pin end connectors.
(5) Installations with high fault current due to large supply mains may require a type D circuit breaker.
(6) Thermomagnetic type breakers preferred.
