Lenze G50AB045 User Manual

Mechanical installation
Preparation
Mounting the hoseproof hollow shaft cover
4
42
Lenze ¯ MA 12.0014 ¯ 5.1

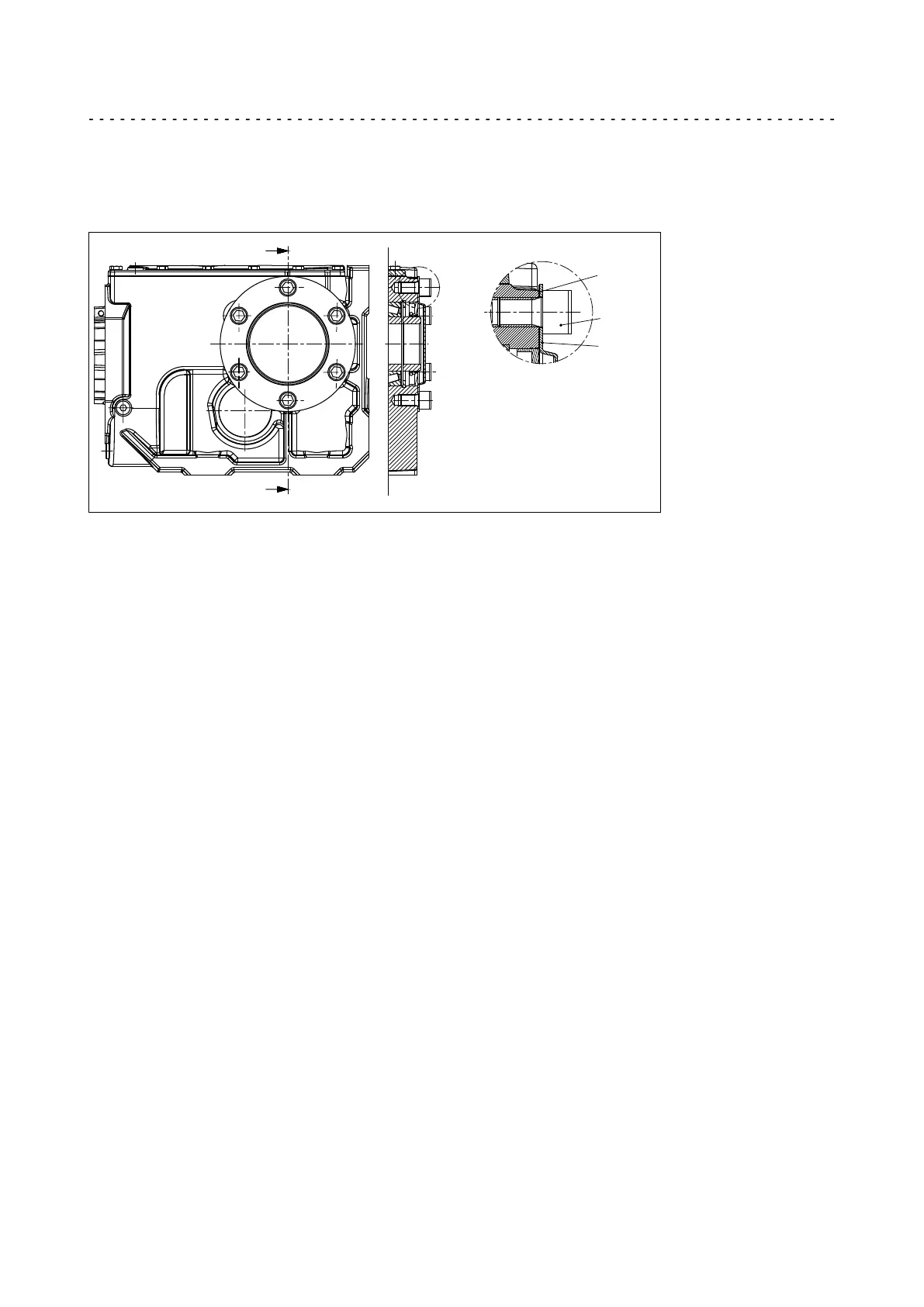

4.3.12 Mounting the hoseproof hollow shaft cover
With the g500−B gearbox, the hoseproof hollow shaft cover is bolted down directly in
the housing.
A
X
A
A-A
X
1
2
4
1 Protection cover 4 Seal
2 Cheese head screw
1. Place seal (4) between the flange and the protection cover (1).
2. Fasten the protection cover (1) on the housing flange using cheese head screws
(2).
