Mechanical installation
Preparation
4
21
Lenze ¯ MA 12.0012 ¯ 4.0

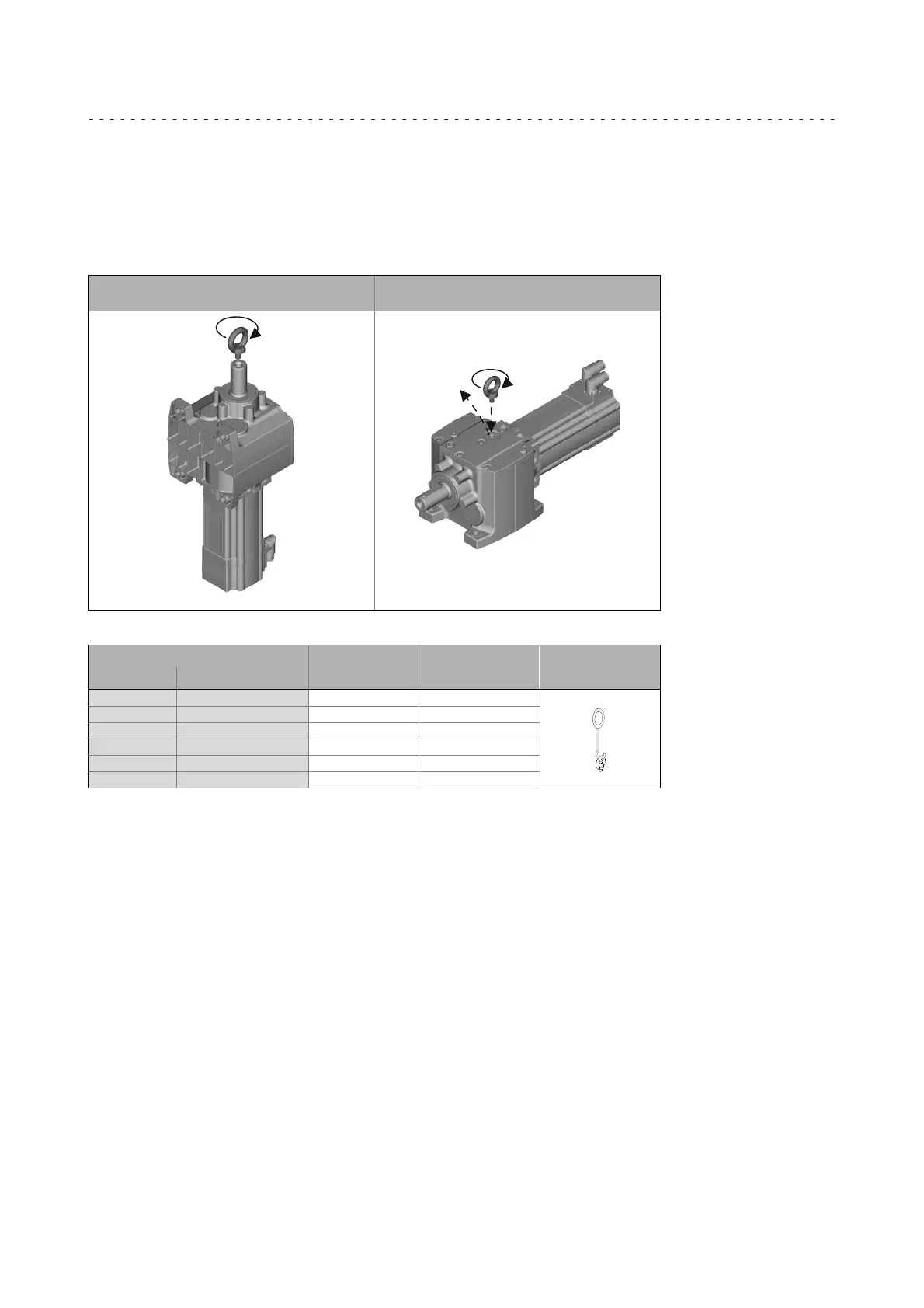

The following figures show the position of the transport threads. As a standard,
gearboxes from size g500−H210/G50BH121 onwards come with a transport thread for
eye bolts in compliance with DIN 580 in the gearbox cover. In the case of smaller drives,
the thread in the output shaft can be used. The eye bolt is not included in the scope of
supply!
g500−H45 ... g500−H140
G50AH045 ... G50BH114
from g500−H210/G50BH121
1.
2.
Fig. 3 Eye bolt position
Gearbox
Thread Max. load carrying
capacity
Eye bolt as specified
by
DIN 580
Code Type
G50AH045 g500−H45 M6 80
G50BH110 g500−H100 M6 80
G50BH114 g500−H140 M8 140
G50BH121 g500−H210 M8 140
G50BH132 g500−H320 M10 230
G50BH145 g500−H450 M12 340
Tab. 2 Load carrying capacity of eye bolt in kg
4.3 Preparation
¯ Protect shaft sealing rings against contact with solvents!
¯ Thoroughly remove anticorrosion agents from the output shaft and from flange
faces.
¯ Repair paintwork damage.
¯ In some cases, due to lack of space, stud bolts with nuts must be used instead of
head screws. In these cases, contact Lenze, if necessary.
Tighten all screw connections with the torques given and lock them with standard
screw locking adhesive!
