4.2 Wire range
The wire range is protected against contact by means of several plates. All plates can be
removed so that the cables can be connected easier.
If required, the cables can also be connected without removing the plates if the cable
entries are bent or broken open.
With a device of size X8 the angle for strain relief and/or shield connection can be mounted
inside or outside:
ƒ Internal mounting: When single cores are used
ƒ External mounting: When multi−core cables are used, can also be shielded

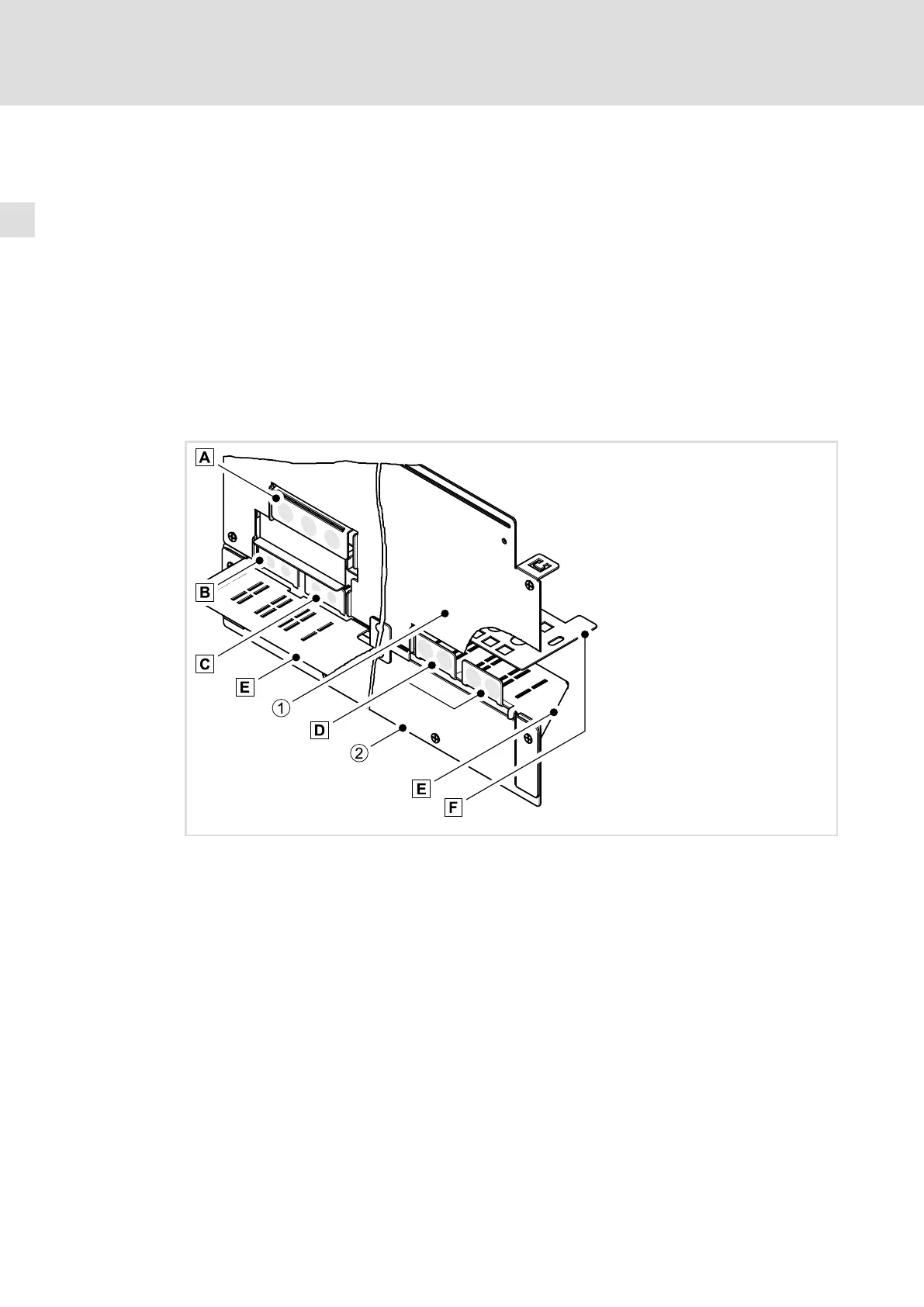

Device size 8S
SSP94KE0X8
Top/front cover
Bottom/back cover
Knockout cable entry − mains
Knockout cable entry − DC bus
Knockout cable entry − brake resistor
Knockout cable entry − motor
Shield connection and/or strain relief, can be optionally mounted inside (in case of single
cores) or outside (multi−core cables).
Barrier between mains input and other power terminals
