Commissioning
Parameter setting
Servo controller ECS
6
 42
BA33.0001 EN 2.0

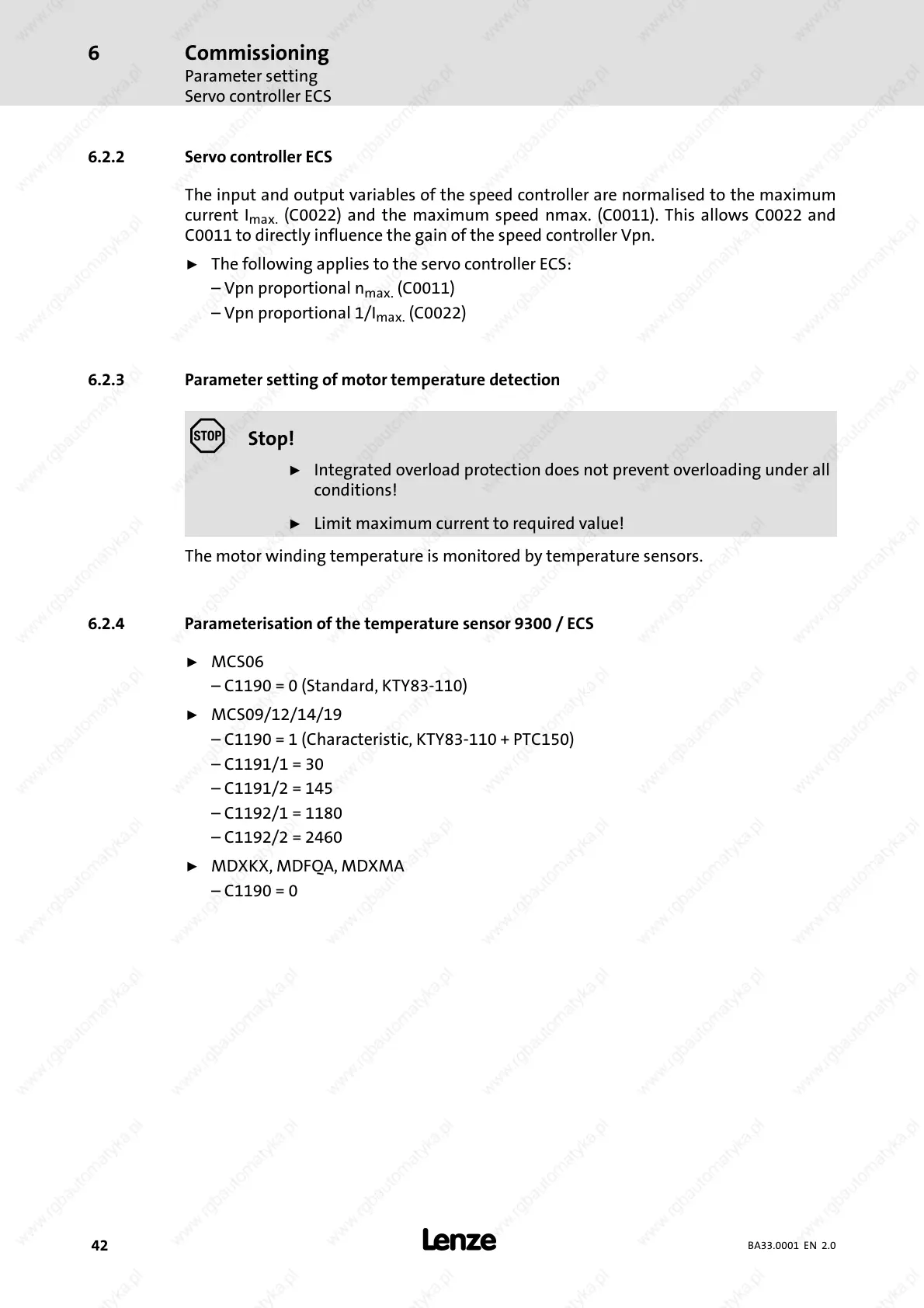

6.2.2 Servo controller ECS
The input and output variables of the speed controller are normalised to the maximum
current I
max.
(C0022) and the maximum speed nmax. (C0011). This allows C0022 and
C0011 to directly influence the gain of the speed controller Vpn.
ƒ The following applies to the servo controller ECS:
– Vpn proportional n
max.
(C0011)
– Vpn proportional 1/I
max.
(C0022)
6.2.3 Parameter setting of motor temperature detection
 Stop!
ƒ Integrated overload protection does not prevent overloading under all
conditions!
ƒ Limit maximum current to required value!
The motor winding temperature is monitored by temperature sensors.
6.2.4 Parameterisation of the temperature sensor 9300 / ECS
ƒ MCS06
–C1190=0(Standard,KTY83-110)
ƒ MCS09/12/14/19
–C1190=1(Characteristic,KTY83-110+PTC150)
– C1191/1 = 30
– C1191/2 = 145
– C1192/1 = 1180
– C1192/2 = 2460
ƒ MDXKX, MDFQA, MDXMA
–C1190=0
