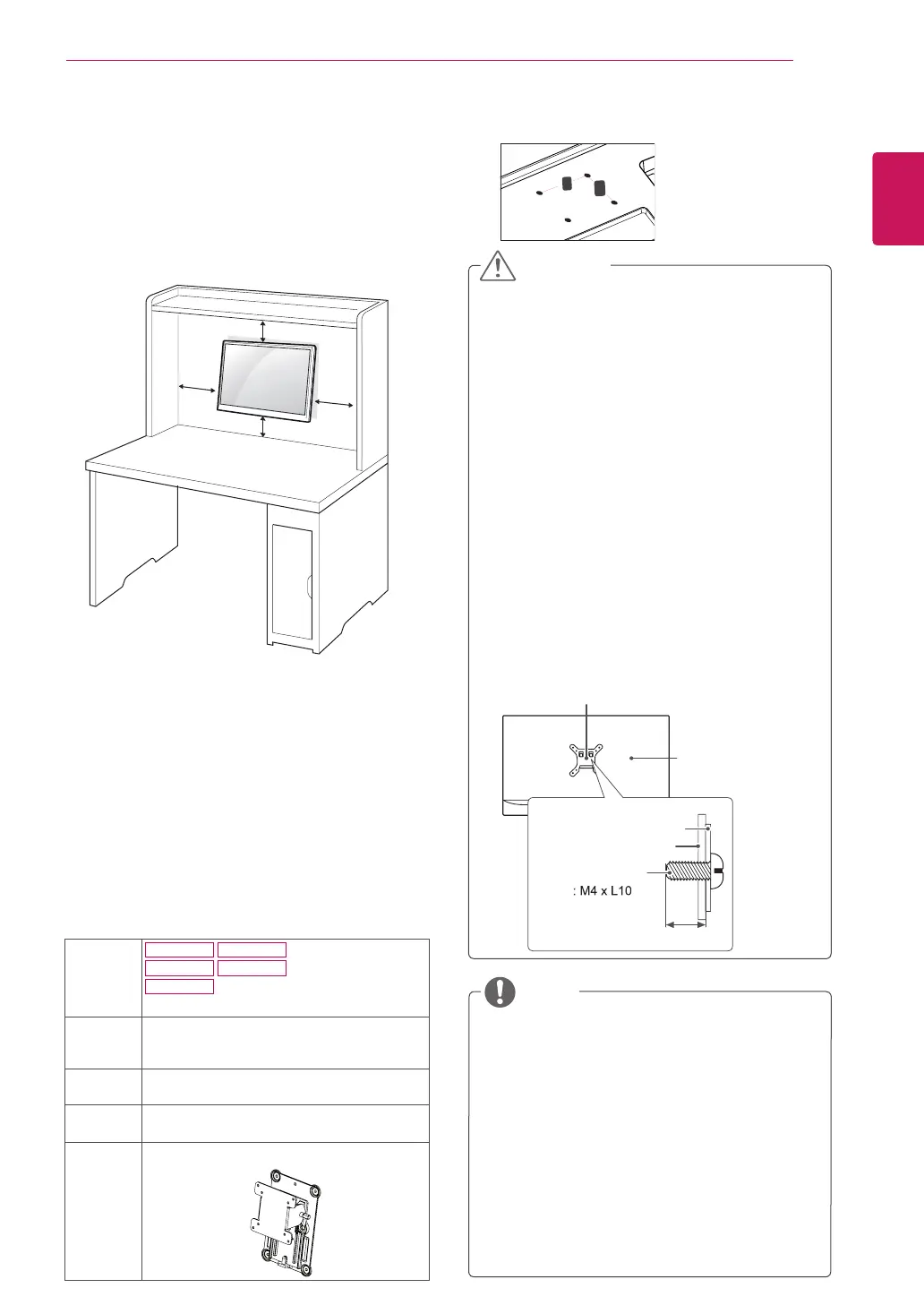

ASSEMBLING AND PREPARING
Mounting on a wall
For proper ventilation, allow a clearance of 10 cm
on each side and from the wall. Detailed
instructions are available from your dealer, see the
optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
If you intend to mount the Monitor set to a wall,
attach Wall mounting interface (optional parts) to
the back of the set.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
1 If you use screw longer than standard, the moni-
tor might be damaged internally.
2 If you use improper screw, the product might be
damaged and drop from mounted position.
In this case, LG Electronics is not responsible
for it.
10 cm
10 cm
10 cm
10 cm
y
Disconnect the power cord first, and then
move or install the Monitor set. Otherwise
electric shock may occur.
y
If you install the Monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury.
y
Use only an authorized LG wall mount
and contact the local dealer or qualified
personnel.
y
Do not over tighten the screws as this may
cause damage to the Monitor set and void
your warranty.
y
Use only screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
y
Screw length from outer surface of back
cover should be under 8mm.
y
Use the screws that are listed on the VESA
standard screw specifications.
y
The wall mount kit will include an installation
manual and necessary parts.
y
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y
The length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
y
For more information, refer to the
instructions supplied with the wall mount.
CAUTION
NOTE
Back Cover
Wall mount Pad
Wall mount Pad
Back Cover
Standard screw
Max.8mm
Model
22MP48A
22MP48D
22MP48HQ
23MP48D
23MP48HQ
Wall
Mount (A
x B)
75 x 75
Standard
screw
M4 x L10
Number
of screws
4
Wall
Mount
Plate
(Optional)
RW120
y
Wall Mount (A x B)
A
B

LG 22MP48HQ Specifications

General

3D	No
Color gamut	72 %
Screen shape	Flat
Display surface	Matt
Display diagonal	21.5 \
Display technology	LED
Native aspect ratio	16:9
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
AC adapter included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	85 kWh
Power consumption (standby)	0.3 W
Power consumption (typical)	23 W
Sustainability certificates	EPEAT Gold, ENERGY STAR
Certification	TCO (6.0), TUV-Type, UL (cUL), RCM
Product color	Black
Panel mounting interface	75 x 75 mm
Cables included	AC, HDMI, VGA

Weight and Dimensions

Depth (with stand)	187 mm
Height (with stand)	387 mm
Weight (with stand)	2700 g
Depth (without stand)	57 mm
Width (without stand)	508 mm
Height (without stand)	313 mm
Weight (without stand)	2500 g
