ASSEMBLE AND DISASSEMBLE

Product Identification:

Marketing Name / Model Description

27UL500 32” LED monitor

Purpose: The document is intended for use by end-of-

life recyclers or treatment facilities. It provides the basic instructions for the disassembly of products to remove components and

materials requiring selective treatment.

1. Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components and materials requiring

selective treatment can be removed.

Tool Description Tool Size (if applicable)

Screw driver

2. Product disassembly Process

2.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment :

2.2 OPTIONAL : Depending upon the complexity of the disassembly process, a graphic depicting the locations of items contained within the product

which require selective treatment (with descriptions and arrows identifying locations) can be inserted below:

2.3 How to describe the basic steps to disassembly a components.

1) Provide a picture of disassembly process

2) All the screws are showed in the picture

3) All the PCBAs are showed in the picture

4) LCD panel are showed in the picture

5) All the accessories like remote controller, batteries, and cables are showed in the picture

Caution: SVC man must check insulation sheet on the module before assembling the set

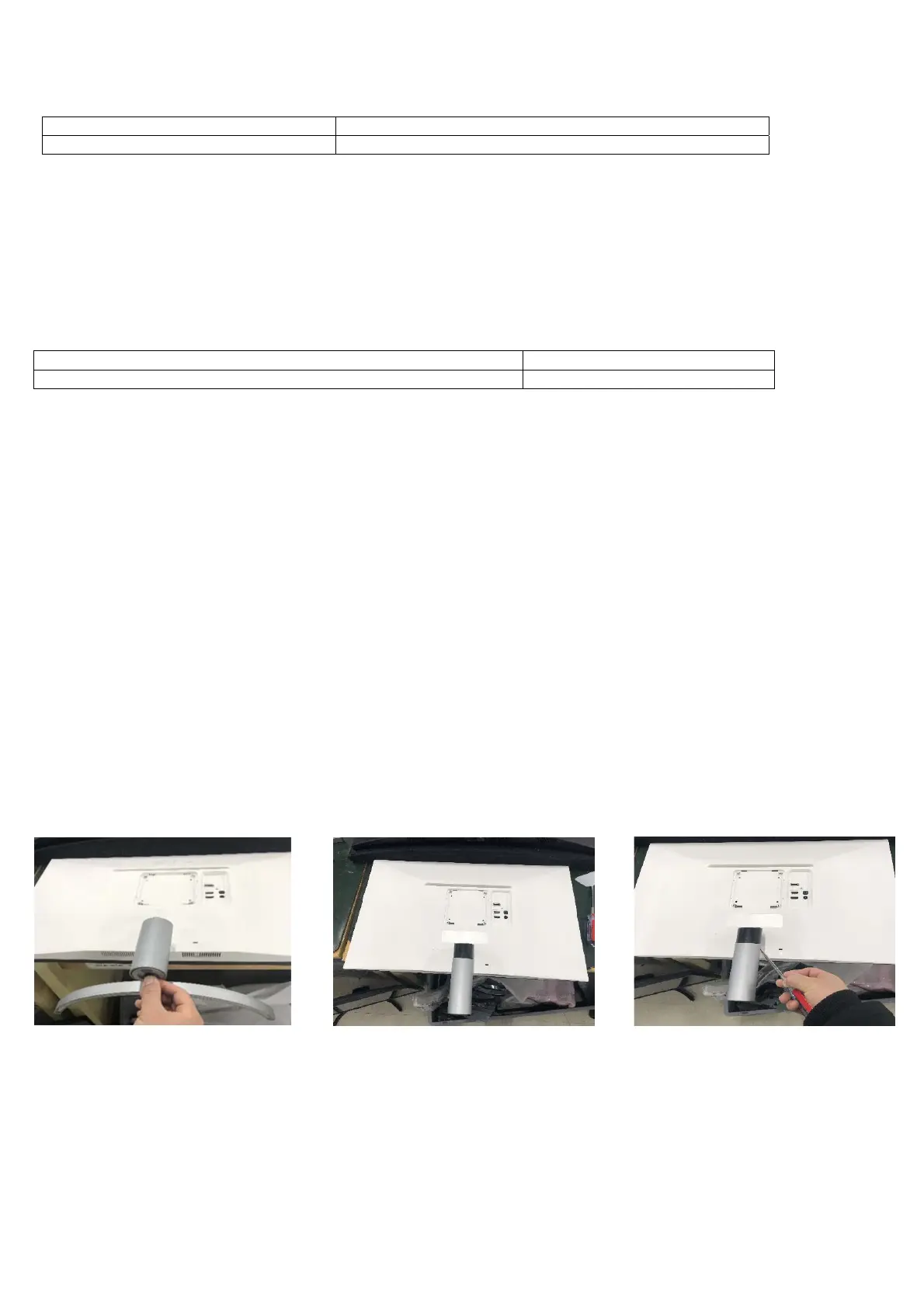

Disassemble Stand base and Body by

Thumb screw

Disassemble top cover
