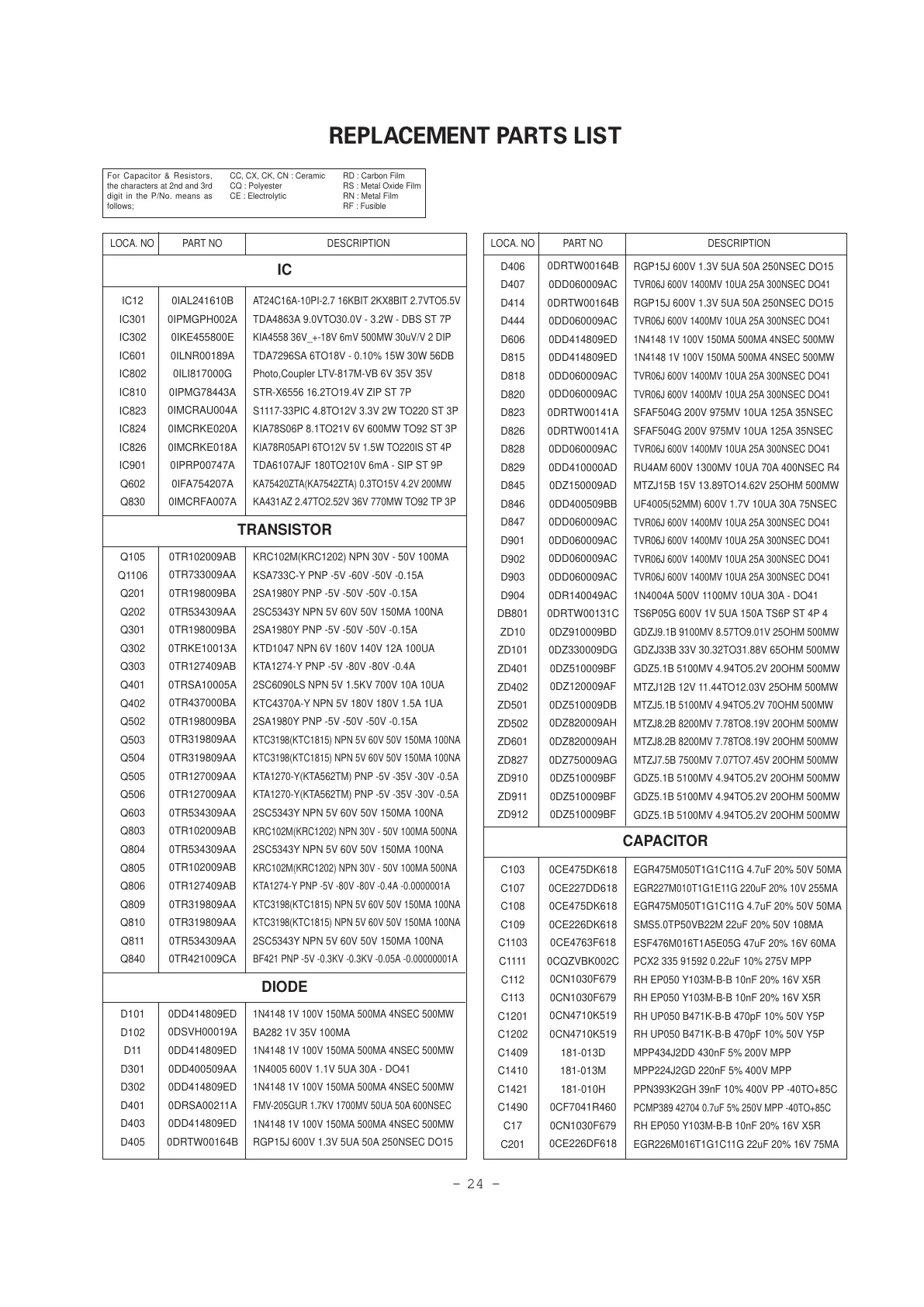

REPLACEMENT PARTS LIST
LOCA. NO PART NO DESCRIPTION
D406
D407
D414
D444
D606
D815
D818
D820
D823
D826
D828
D829
D845
D846
D847
D901
D902
D903
D904
DB801
ZD10
ZD101
ZD401
ZD402
ZD501
ZD502
ZD601
ZD827
ZD910
ZD911
ZD912
C103
C107
C108
C109
C1103
C1111
C112
C113
C1201
C1202
C1409
C1410
C1421
C1490
C17
C201
0DRTW00164B
0DD060009AC
0DRTW00164B
0DD060009AC
0DD414809ED
0DD414809ED
0DD060009AC
0DD060009AC
0DRTW00141A
0DRTW00141A
0DD060009AC
0DD410000AD
0DZ150009AD
0DD400509BB
0DD060009AC
0DD060009AC
0DD060009AC
0DD060009AC
0DR140049AC
0DRTW00131C
0DZ910009BD
0DZ330009DG
0DZ510009BF
0DZ120009AF
0DZ510009DB
0DZ820009AH
0DZ820009AH
0DZ750009AG
0DZ510009BF
0DZ510009BF
0DZ510009BF
0CE475DK618
0CE227DD618
0CE475DK618
0CE226DK618
0CE4763F618
0CQZVBK002C
0CN1030F679
0CN1030F679
0CN4710K519
0CN4710K519
181-013D
181-013M
181-010H
0CF7041R460
0CN1030F679
0CE226DF618
RGP15J 600V 1.3V 5UA 50A 250NSEC DO15
TVR06J 600V 1400MV 10UA 25A 300NSEC DO41
RGP15J 600V 1.3V 5UA 50A 250NSEC DO15
TVR06J 600V 1400MV 10UA 25A 300NSEC DO41
1N4148 1V 100V 150MA 500MA 4NSEC 500MW
1N4148 1V 100V 150MA 500MA 4NSEC 500MW
TVR06J 600V 1400MV 10UA 25A 300NSEC DO41
TVR06J 600V 1400MV 10UA 25A 300NSEC DO41
SFAF504G 200V 975MV 10UA 125A 35NSEC
SFAF504G 200V 975MV 10UA 125A 35NSEC
TVR06J 600V 1400MV 10UA 25A 300NSEC DO41
RU4AM 600V 1300MV 10UA 70A 400NSEC R4
MTZJ15B 15V 13.89TO14.62V 25OHM 500MW
UF4005(52MM) 600V 1.7V 10UA 30A 75NSEC
TVR06J 600V 1400MV 10UA 25A 300NSEC DO41
TVR06J 600V 1400MV 10UA 25A 300NSEC DO41
TVR06J 600V 1400MV 10UA 25A 300NSEC DO41
TVR06J 600V 1400MV 10UA 25A 300NSEC DO41
1N4004A 500V 1100MV 10UA 30A - DO41
TS6P05G 600V 1V 5UA 150A TS6P ST 4P 4
GDZJ9.1B 9100MV 8.57TO9.01V 25OHM 500MW
GDZJ33B 33V 30.32TO31.88V 65OHM 500MW
GDZ5.1B 5100MV 4.94TO5.2V 20OHM 500MW
MTZJ12B 12V 11.44TO12.03V 25OHM 500MW
MTZJ5.1B 5100MV 4.94TO5.2V 70OHM 500MW
MTZJ8.2B 8200MV 7.78TO8.19V 20OHM 500MW
MTZJ8.2B 8200MV 7.78TO8.19V 20OHM 500MW
MTZJ7.5B 7500MV 7.07TO7.45V 20OHM 500MW
GDZ5.1B 5100MV 4.94TO5.2V 20OHM 500MW
GDZ5.1B 5100MV 4.94TO5.2V 20OHM 500MW
GDZ5.1B 5100MV 4.94TO5.2V 20OHM 500MW
EGR475M050T1G1C11G 4.7uF 20% 50V 50MA
EGR227M010T1G1E11G 220uF 20% 10V 255MA
EGR475M050T1G1C11G 4.7uF 20% 50V 50MA
SMS5.0TP50VB22M 22uF 20% 50V 108MA
ESF476M016T1A5E05G 47uF 20% 16V 60MA
PCX2 335 91592 0.22uF 10% 275V MPP
RH EP050 Y103M-B-B 10nF 20% 16V X5R
RH EP050 Y103M-B-B 10nF 20% 16V X5R
RH UP050 B471K-B-B 470pF 10% 50V Y5P
RH UP050 B471K-B-B 470pF 10% 50V Y5P
MPP434J2DD 430nF 5% 200V MPP
MPP224J2GD 220nF 5% 400V MPP
PPN393K2GH 39nF 10% 400V PP -40TO+85C
PCMP389 42704 0.7uF 5% 250V MPP -40TO+85C
RH EP050 Y103M-B-B 10nF 20% 16V X5R
EGR226M016T1G1C11G 22uF 20% 16V 75MA
LOCA. NO PART NO DESCRIPTION
IC12
IC301
IC302
IC601
IC802
IC810
IC823
IC824
IC826
IC901
Q602
Q830
Q105
Q1106
Q201
Q202
Q301
Q302
Q303
Q401
Q402
Q502
Q503
Q504
Q505
Q506
Q603
Q803
Q804
Q805
Q806
Q809
Q810
Q811
Q840
D101
D102
D11
D301
D302
D401
D403
D405
0IAL241610B
0IPMGPH002A
0IKE455800E
0ILNR00189A
0ILI817000G
0IPMG78443A
0IMCRAU004A
0IMCRKE020A
0IMCRKE018A
0IPRP00747A
0IFA754207A
0IMCRFA007A
0TR102009AB
0TR733009AA
0TR198009BA
0TR534309AA
0TR198009BA
0TRKE10013A
0TR127409AB
0TRSA10005A
0TR437000BA
0TR198009BA
0TR319809AA
0TR319809AA
0TR127009AA
0TR127009AA
0TR534309AA
0TR102009AB
0TR534309AA
0TR102009AB
0TR127409AB
0TR319809AA
0TR319809AA
0TR534309AA
0TR421009CA
0DD414809ED
0DSVH00019A
0DD414809ED
0DD400509AA
0DD414809ED
0DRSA00211A
0DD414809ED
0DRTW00164B
AT24C16A-10PI-2.7 16KBIT 2KX8BIT 2.7VTO5.5V
TDA4863A 9.0VTO30.0V - 3.2W - DBS ST 7P
KIA4558 36V_+-18V 6mV 500MW 30uV/V 2 DIP
TDA7296SA 6TO18V - 0.10% 15W 30W 56DB
Photo,Coupler LTV-817M-VB 6V 35V 35V
STR-X6556 16.2TO19.4V ZIP ST 7P
S1117-33PIC 4.8TO12V 3.3V 2W TO220 ST 3P
KIA78S06P 8.1TO21V 6V 600MW TO92 ST 3P
KIA78R05API 6TO12V 5V 1.5W TO220IS ST 4P
TDA6107AJF 180TO210V 6mA - SIP ST 9P
KA75420ZTA(KA7542ZTA) 0.3TO15V 4.2V 200MW
KA431AZ 2.47TO2.52V 36V 770MW TO92 TP 3P
KRC102M(KRC1202) NPN 30V - 50V 100MA
KSA733C-Y PNP -5V -60V -50V -0.15A
2SA1980Y PNP -5V -50V -50V -0.15A
2SC5343Y NPN 5V 60V 50V 150MA 100NA
2SA1980Y PNP -5V -50V -50V -0.15A
KTD1047 NPN 6V 160V 140V 12A 100UA
KTA1274-Y PNP -5V -80V -80V -0.4A
2SC6090LS NPN 5V 1.5KV 700V 10A 10UA
KTC4370A-Y NPN 5V 180V 180V 1.5A 1UA
2SA1980Y PNP -5V -50V -50V -0.15A
KTC3198(KTC1815) NPN 5V 60V 50V 150MA 100NA
KTC3198(KTC1815) NPN 5V 60V 50V 150MA 100NA
KTA1270-Y(KTA562TM) PNP -5V -35V -30V -0.5A
KTA1270-Y(KTA562TM) PNP -5V -35V -30V -0.5A
2SC5343Y NPN 5V 60V 50V 150MA 100NA
KRC102M(KRC1202) NPN 30V - 50V 100MA 500NA
2SC5343Y NPN 5V 60V 50V 150MA 100NA
KRC102M(KRC1202) NPN 30V - 50V 100MA 500NA
KTA1274-Y PNP -5V -80V -80V -0.4A -0.0000001A
KTC3198(KTC1815) NPN 5V 60V 50V 150MA 100NA
KTC3198(KTC1815) NPN 5V 60V 50V 150MA 100NA
2SC5343Y NPN 5V 60V 50V 150MA 100NA
BF421 PNP -5V -0.3KV -0.3KV -0.05A -0.00000001A
1N4148 1V 100V 150MA 500MA 4NSEC 500MW
BA282 1V 35V 100MA
1N4148 1V 100V 150MA 500MA 4NSEC 500MW
1N4005 600V 1.1V 5UA 30A - DO41
1N4148 1V 100V 150MA 500MA 4NSEC 500MW
FMV-205GUR 1.7KV 1700MV 50UA 50A 600NSEC
1N4148 1V 100V 150MA 500MA 4NSEC 500MW
RGP15J 600V 1.3V 5UA 50A 250NSEC DO15
IC
TRANSISTOR
CAPACITOR
DIODE
For Capacitor & Resistors,
the characters at 2nd and 3rd
digit in the P/No. means as
follows;
CC, CX, CK, CN : Ceramic
CQ : Polyester
CE : Electrolytic
RD : Carbon Film
RS : Metal Oxide Film
RN : Metal Film
RF : Fusible
