APPENDIX
129

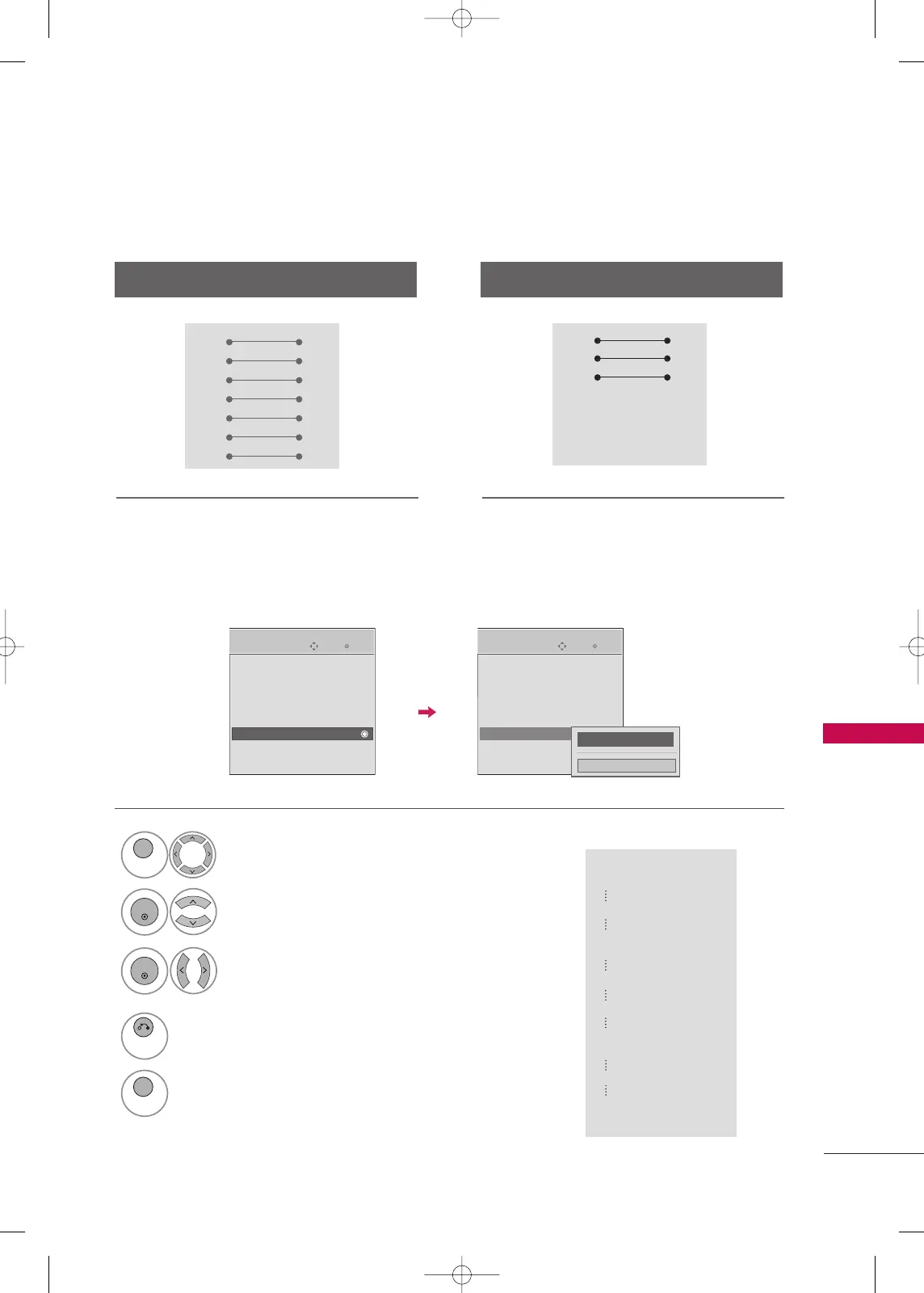

RS-232C Configurations
Either cable below can be used.
Set ID
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9
7-Wire Configuration
(
Serial female-female NULL modem cable
)
3-Wire Configurations
(
Not standard
)
Use this function to specify a TV ID number.
Refer to ‘Real Data Mapping’.
Enter
Move
OPTION
Menu Language : English
Input Label
SIMPLINK : On
Key Lock : Off
Caption/Text : Off
Set ID : 1
Power Indicator
Demo Mode : Off
Enter
Move
OPTION
Menu Language : English
Input Label
SIMPLINK : On
Key Lock : Off
Caption/Text : Off
Set ID : 1
Power Indicator
Demo Mode : Off
FF
1
GG
Close
Select
OOPPTTIIOONN
.
Select
SSeett IIDD
.
Choose the desired TV ID number.
The adjustment range of
SSeett IIDD
is
1~99.
1
MENU
3
2
ENTER
ENTER
4
RETURN
Return to the previous menu.
MENU
Return to TV viewing.
E E
**
RReeaall ddaattaa mmaappppiinngg
00 : Step 0
A : Step 10
F : Step 15
10 : Step 16
64 : Step 100
6E : Step 110
73 : Step 115
74 : Step 116
C7 : Step 199
FE : Step 254
FF : Step 255
(For 22/26/32LD330, 42LD420, 32LD340, 26/32LD331C:
BACK Button)
(For 22/26/32LD330, 42LD420, 32LD340, 26/32LD331C:
EXIT Button)
MFL58486305-Edit4-en- 5/28/10 2:43 PM Page 129
