5/22
Copyright © 2011 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

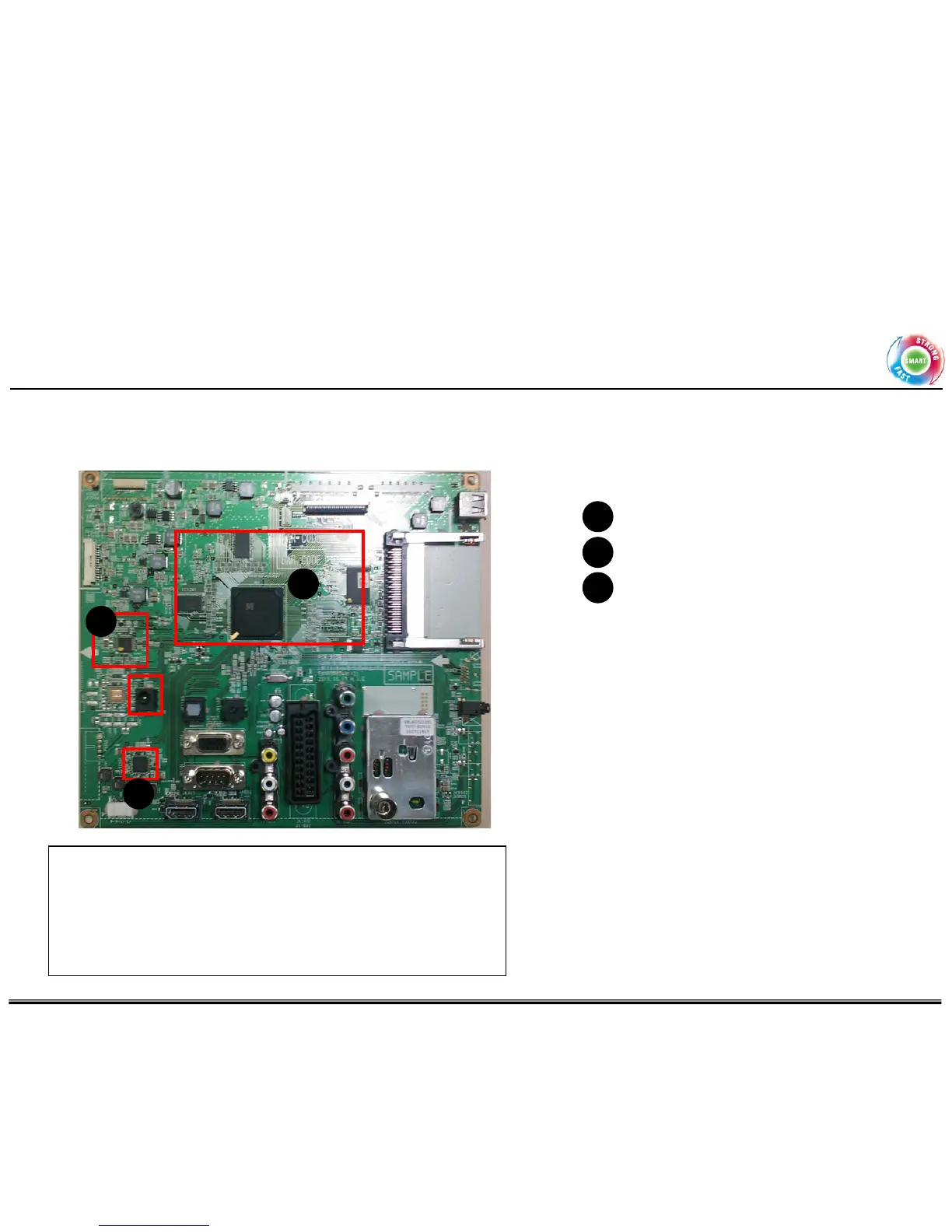

Main PCB
1
Main processor, DDR Memory
Flash Memory
2
3
Micom for Key/IR sensing
Audio AMP (5W+5W)
2
3
To LCD Module
* 22/26LK330_S7 Reused (’11)
Main IC : LGE101_Mstar
Tuner Type : TDTJ-S001D (DVB-T/C)
Display Type (Resolution) : LCD TV (1366 x 768)
Interface : HDMI 2EA , Component 1EA, AV 1EA, USB 1EA
Difference : Without FRC, HDMI Position , Resolution , Interface, Wafer
Position (Sub)
22/26LK330
(50HZ)
Adapter
1
To Next Page
