47
EXTERNAL EQUIPMENT SETUP
OTHER A/V SOURCE SETUP

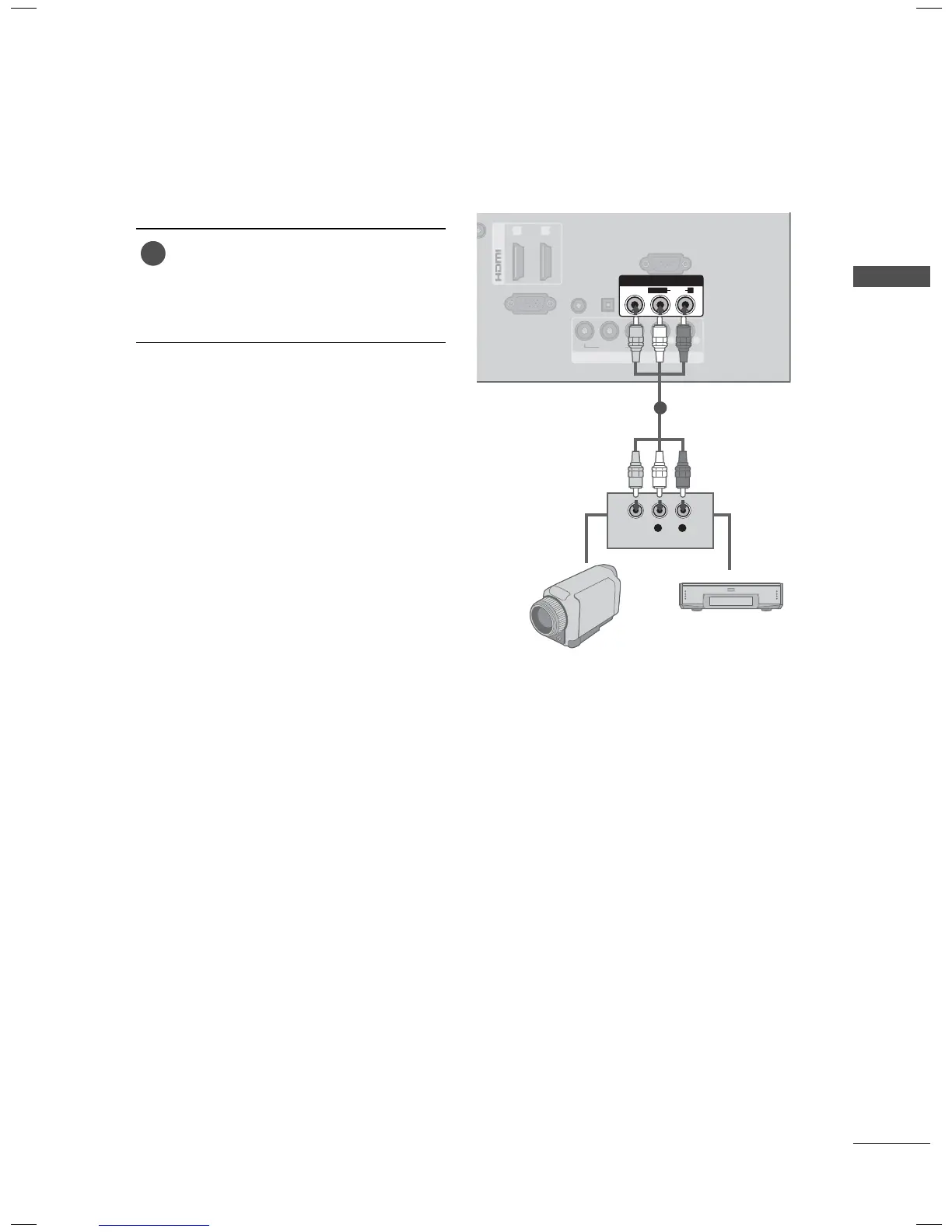

1. How to connect
1
Connect the AUDIO/VIDEO jacks
between TV and external equipment.
Match the jack colors
.
(
Video = yellow, Audio Left = white, and
Audio Right = red
)
2. How to use
ꔛ
Select the AV, AV1 or AV2* input source
on the TV using the INPUT button on
the remote contr
ol.
ꔛ
Operate the corresponding external
equipment.
C-IN
RGB IN (PC)
AUDIO IN
RGB/DVI
(DVI)
OPTICAL
DIGITAL
AUDIO OUT
/DVI IN
COMPONENT IN
RS-232C IN
(
CONTROL&SERVICE)
1 2
VIDEO
AUDIO
YP
B
P
R
L R
AV IN
VIDEO
AUDIO
L(MONO)
R
L R
VIDEO
AUDIO
Camcorder
Video Game Set
1
* AV2: For 42/50PJ250, 42/50PJ350, 32LD350,
32/42LD420, 32/42LD420C, 32/37/42/47LD460,
37/42LD461C, 32/37/42/47LD465,
32/37/42/47/55LE5300, 32/42/47/55LE4600
