15
ENGLISH

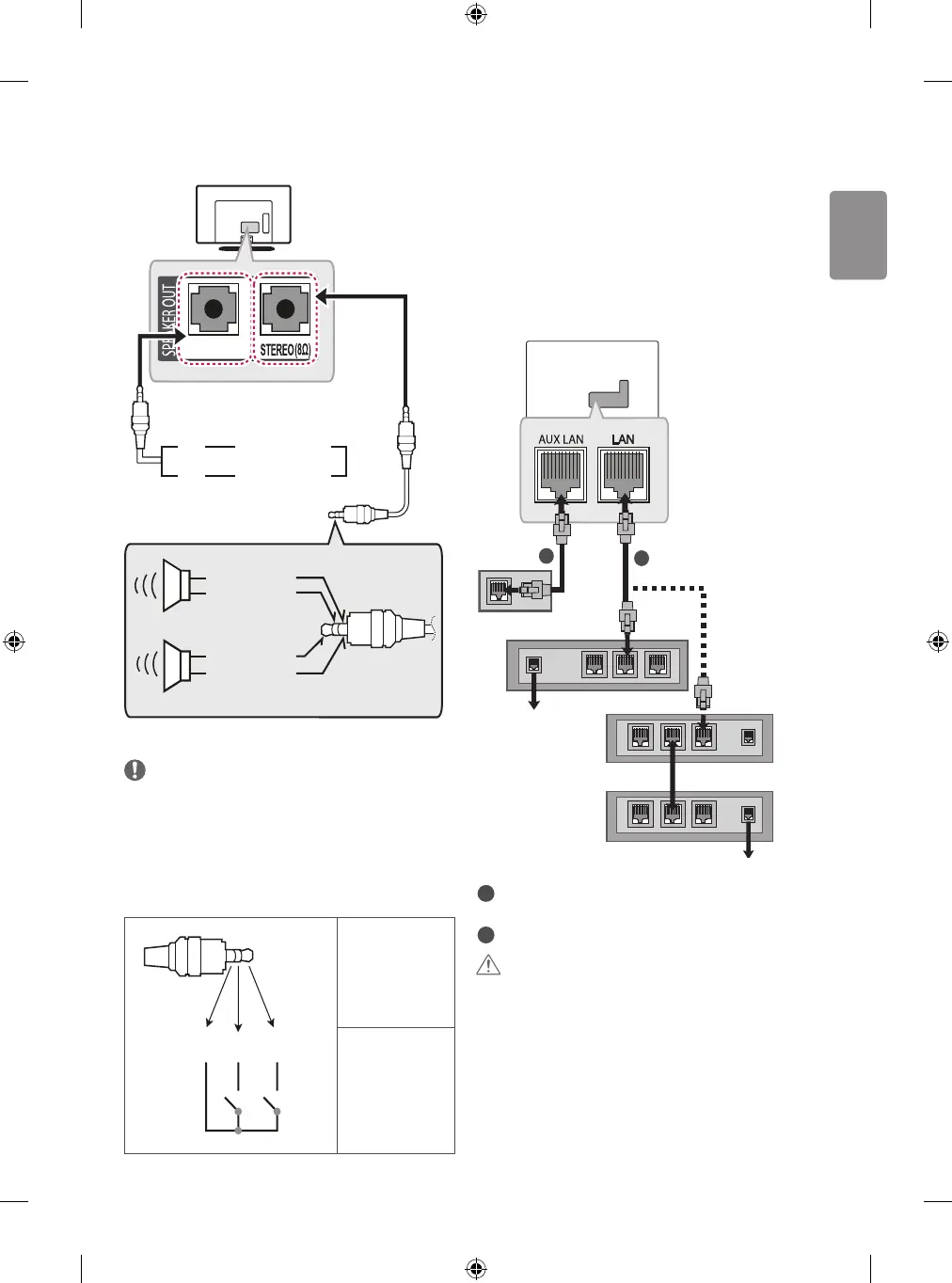

Speaker Output Setup
• Image shown may dier from your TV.
VOLUME CONTROL
+
-
UP
DOWN
GND
RIGHT
LEFT
GND
Control port for Speaker out
NOTE
• Use only with the 3 Pole 3.5mm Stereo Jack.
• Do not connect your headphones or earphones to the port for
connecting an external speaker.
Method of Volume control port
• Cable Spec.
VOLUME CONTROL
+
-
GND / UP / DOWN
Each Up / Down pin
is pulled to 3.3V with
CPU GPIO.
CPU detects transition
from 3.3V to GND level
for volume control.
Network Setup
Wired network connection
(Depending on model)
• Image shown may dier from your TV.
This TV can be connected to a Pro:Centric server via the LAN port. After
making the physical connection, the TV needs to be set up for network
communication.
Connect the LAN port of the Modem or Router from Pro:Centric server
to the LAN port on the TV.
2
1
Pro:Centric Server
Broadband Modem
Broadband Modem
Pro:Centric Server
Router
Broadband Modem
1
Connect the LAN port of the Modem or Router to the LAN port
on the TV.
2
Connect the LAN port of the PC to the AUX LAN port on the TV.
CAUTION
• Do not connect a modular phone cable to the LAN port.
• Since there are various connection methods, please follow the
specications of your telecommunication carrier or internet service
provider.
