EXTERNAL CONTROL
DEVICE SETUP
RS-232C Setup
• Image shown may dier from your TV.

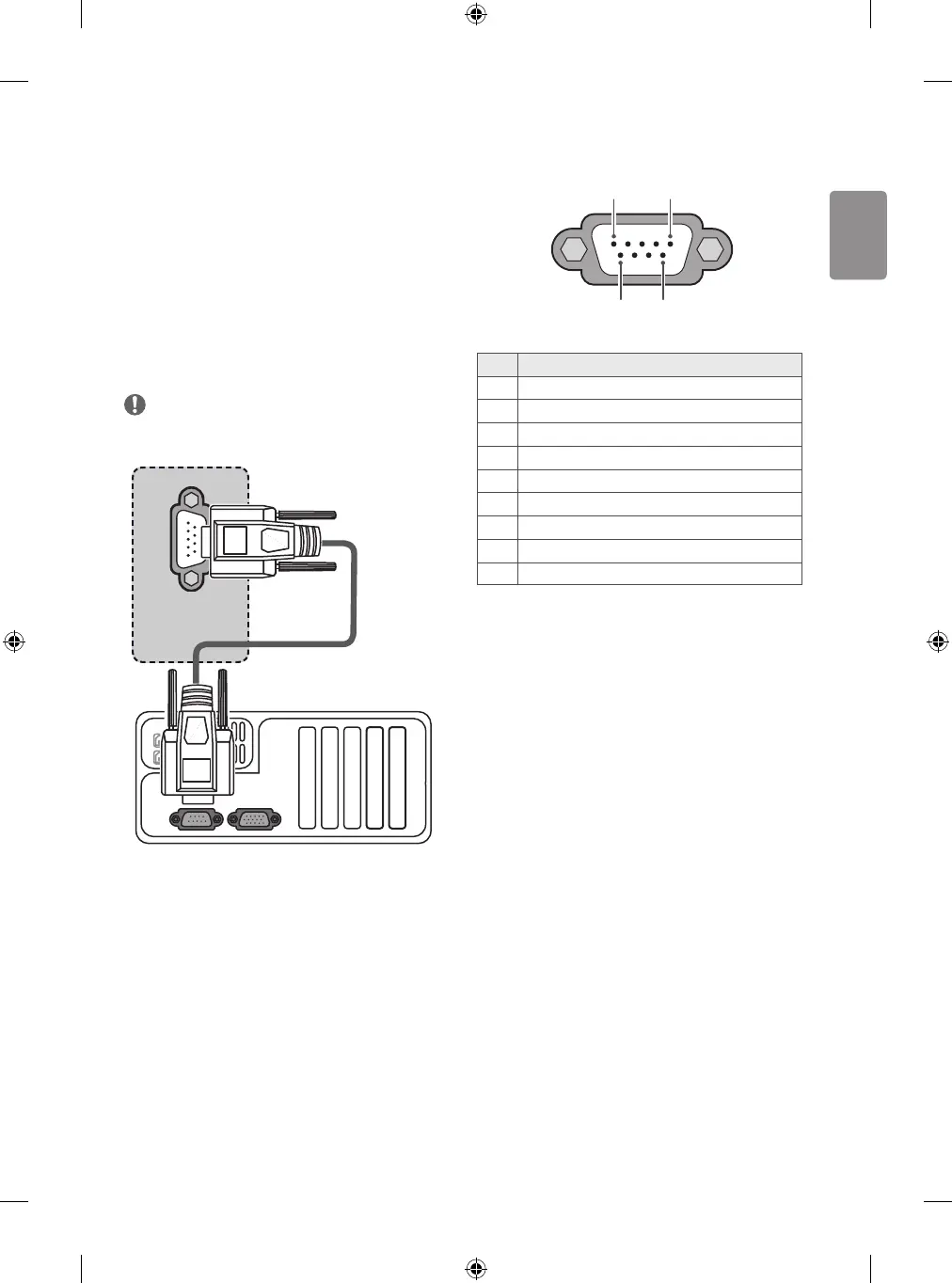

Connect the RS-232C (serial port) input jack to an external control
device (such as a computer or an A/V control system) to control the
product’s functions externally.
Connect the serial port of the control device to the RS-232C jack on the
product back panel.
NOTE
• RS-232C connection cables are not supplied with the product.
RS-232C IN
(CONTROL & SERVICE)
(*Not Provided)
Type of Connector : D-Sub 9-Pin
Male
6
1 5
9
No. Pin name
1
3.5 V
2
RXD (Receive data)
3
TXD (Transmit data)
4
IR OUT from TV
5
GND
6
No Connection
7
5 V
8
No Connection
9 12 V
