LG 42LA6130 Service Manual

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
S_FLASH_OS
2012/06/20
13
NC4_S7LRM
SPI_SCK
+3.5V_ST+3.5V_ST
C1300
0.1uF
R1301
4.7K
OPT
/SPI_CS
SPI_SDO
IC1300
MX25L8006EM2I-12G
SPI_FLASH_MACRONIX
3
WP#
2
SO/SIO1
4
GND
1
CS#
5
SI/SIO0
6
SCLK
7
HOLD#
8
VCC
R1302
33
R1300
10K
OPT
SPI_SDI
/FLASH_WP
IC1300-*1
W25Q80BVSSIG
SPI_FLASH_WINBOND
3
%WP[IO2]
2
DO[IO1]
4
GND
1
CS
5
DI[IO0]
6
CLK
7
HOLD[IO3]
8
VCC
+3.5V_ST

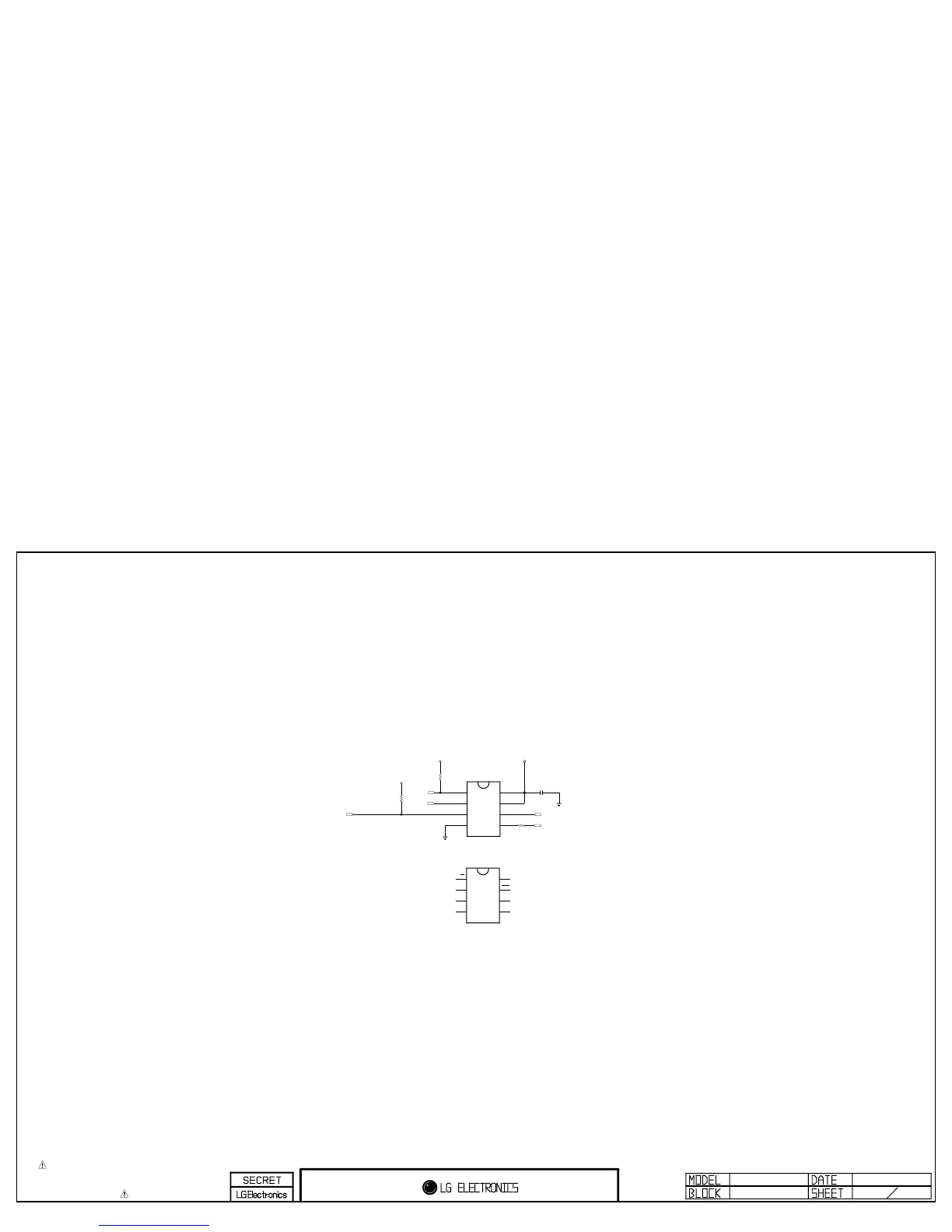

Serial Flash for SPI boot(OS)
Copyright ⓒ 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

LG 42LA6130 Specifications

General

Display diagonal	42 \
Native aspect ratio	16:9
Native refresh rate	50 Hz
LED backlighting type	Direct-LED
Supported video modes	1080p
Display diagonal (metric)	106.68 cm
Supported graphics resolutions	1920 x 1080 (HD 1080)
Motion interpolation technology	MCI (Motion Clarity Index) 100
3D	Yes
3D glasses quantity	2
Annual energy consumption	139.5 kWh
Supported 3D technologies	LG Cinema 3D
Tuner type	Digital
Analog signal format system	-
Digital signal format system	DVB-C, DVB-T
Audio system	Virtual Surround
RMS rated power	20 W
DVI port	No
HDMI version	1.4
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Audio formats supported	AAC, AC3, HE-AAC, MP3, PCM
Image formats supported	JPG, JPS, MPO
Video formats supported	DIVX, MPEG
Product color	Silver
Power consumption (standby)	- W

Weight and Dimensions

Depth (with stand)	235 mm
Height (with stand)	628 mm
Weight (with stand)	10400 g
Depth (without stand)	79 mm
Width (without stand)	968 mm
Height (without stand)	566 mm
Weight (without stand)	9500 g
