VCR SETUP
■
To avoid picture noise (interference), leave an adequate distance between the VCR and TV.
■
Typically a frozen still picture from a VCR. If the 4:3 picture format is used; the fixed images on the sides
of the screen may remain visible on the screen.
S-VIDEO
OUT
IN
(R) AUDIO (L) VIDEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
VIDEO
S-VIDEO
( )
AUDIO
AV IN 3
VIDEO
S-VIDEO
( )
AUDIO
AV IN 3
HDMI INHDMI IN
AUDIO OUTUDIO OUT
VARIABLE
ANTENNAANTENNA
IN
VV CC RR
1
2

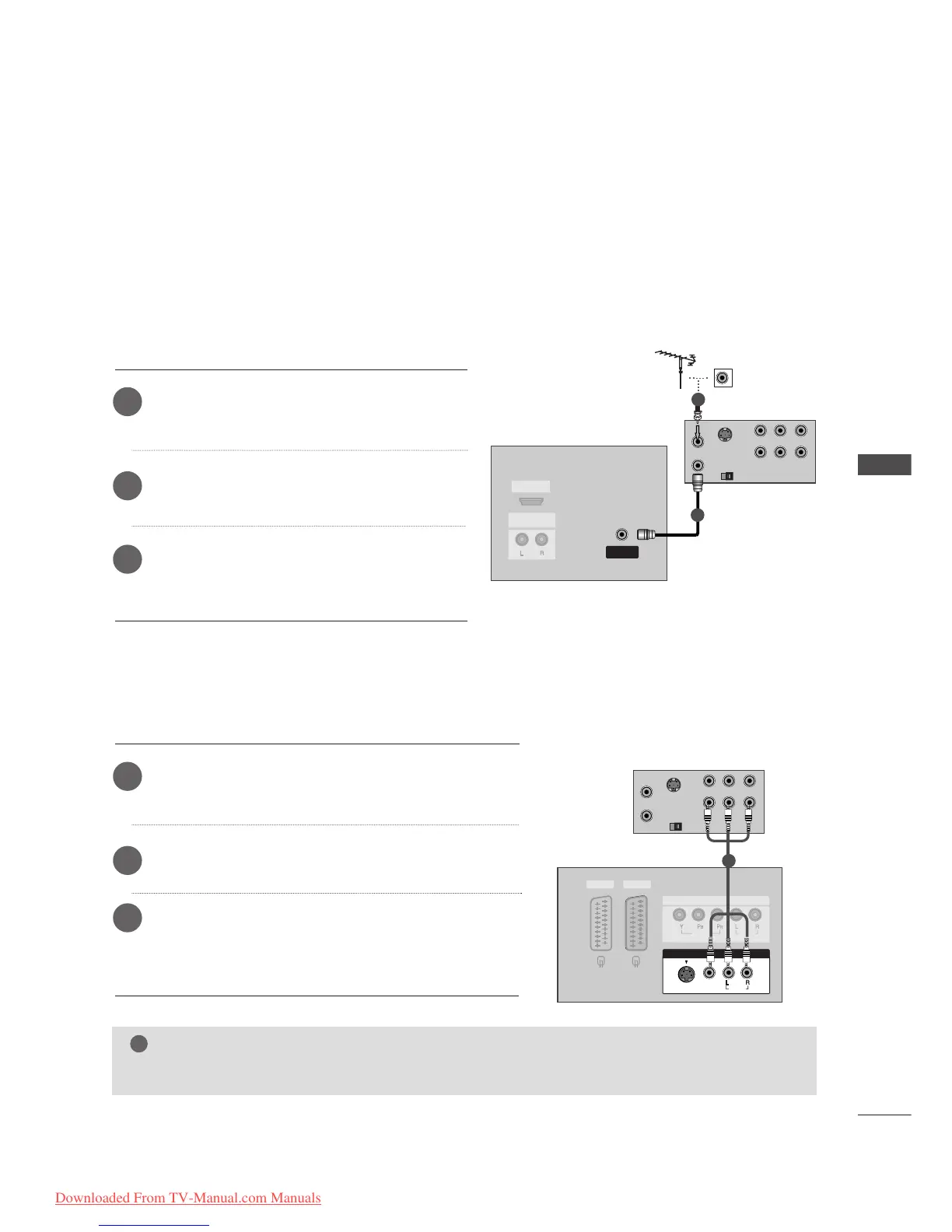

When connecting with an antenna
Connect the
AANNTT OOUUTT
socket of the VCR to the
AANNTTEENNNNAA IINN
socket on the set.
Connect the antenna cable to the
AANNTT IINN
socket of the VCR.
Press the
PPLLAAYY
button on the VCR and match the
appropriate programme between the TV and VCR
for viewing.
S-VIDEO
OUT
IN
(R) AUDIO (L) VIDEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
VIDEO
S-VIDEO
( )
AUDIO
AV IN 3
VIDEO
AUDIO
COMPONENT IN
AV 1 AV 2
VIDEO
S-VIDEO
MONO
( )
AUDIO
AV IN 3
HDMI IN
AUDIO OUT
VARIABLE
ANTENNA
IN
VV CC RR
1
1
2
3
When connecting with a RCA cable
Connect the
AAUUDDIIOO
/
VVIIDDEEOO
jacks between TV and VCR.
Match the jack colors (Video = yellow, Audio Left = white,
and Audio Right = red).
Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
Select
AAVV33
input source using the
IINNPPUUTT
button on the
remote control.
- If connected to
AAVV IINN 44
, select
AV 4 input source.
(except 42PC3RV
*
, 42PC3RA
*
)
1
2
3
NOTE
!
GG
If you have a mono VCR, connect the audio cable from the VCR to the
AAUUDDIIOO LL//MMOONNOO
jack of the set.
