CONNECTION OPTION
INTRODUCTION
INTRODUCTION
This is the back panel of models 42PC1RV
*
, 42PC3RV
*
, 42PC3RA
*
TVs.

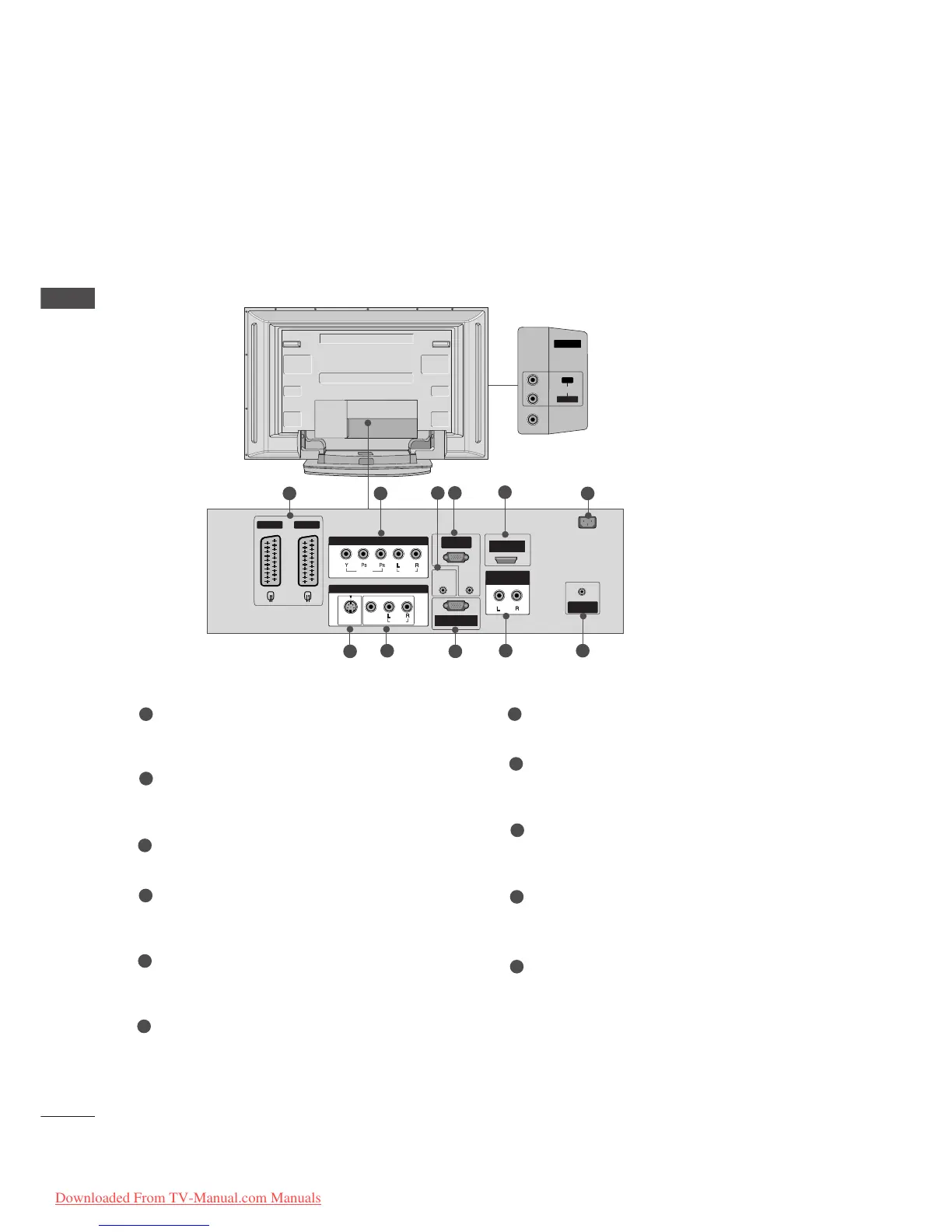

Back Connection Panel
42PC1RV
*
only
REMOTE
CONTROL IN
AUDIO IN
(RGB)
AC IN
AV 1V 1 AV 2
MONO
( )
AUDIOUDIO
RGB IN
(PC/DTV)
RS-232C INRS-232C IN
(CONTROL & SERVICE)
HDMI IN
ANTENNA
IN
VIDEOVIDEO
S-VIDEOS-VIDEO
AV IN 3
AUDIO OUT
VARIABLE
VIDEOVIDEO
AUDIOUDIO
COMPONENT INCOMPONENT IN
AV IN 4
L/MONO
R
AUDIOAUDIO
VIDEOVIDEO
AUDIO Input
Connections are available for listening
stereo sound from an external device.
VIDEO Input
Connects the video signal from a video
device.
7
8
21
4
3
9
5
10 11
6
Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from an
external device to these jacks.
Component Input
Connect a component video/audio device to
these jacks.
Remote Control Port
Connect your wired remote control here.
RGB/Audio Input
Connect the monitor output from a PC to the
appropriate input port.
HDMI Input
Connect a HDMI signal to HDMI port with HDMI
cable.
Power Cord Socket
This TV operates on an AC power. The voltage is
indicated on the Specifications page. Never
attempt to operate the TV on DC power.
S-Video Input
Connect S-Video out from an S-VIDEO device.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
RS-232C Input
(CONTROL&SERVICE) Port
Connect the serial port of the control devices to
the RS-232C jack.
Variable Audio Output
Connect an external amplifier or add a subwoofer
to your surround sound system.
Antenna Input
Connect over-the-air signals to this jack.
1
2
3
4
5
6
7
8
9
10
11
