LG 42PJ550 User Manual

A-5
PREPARATION

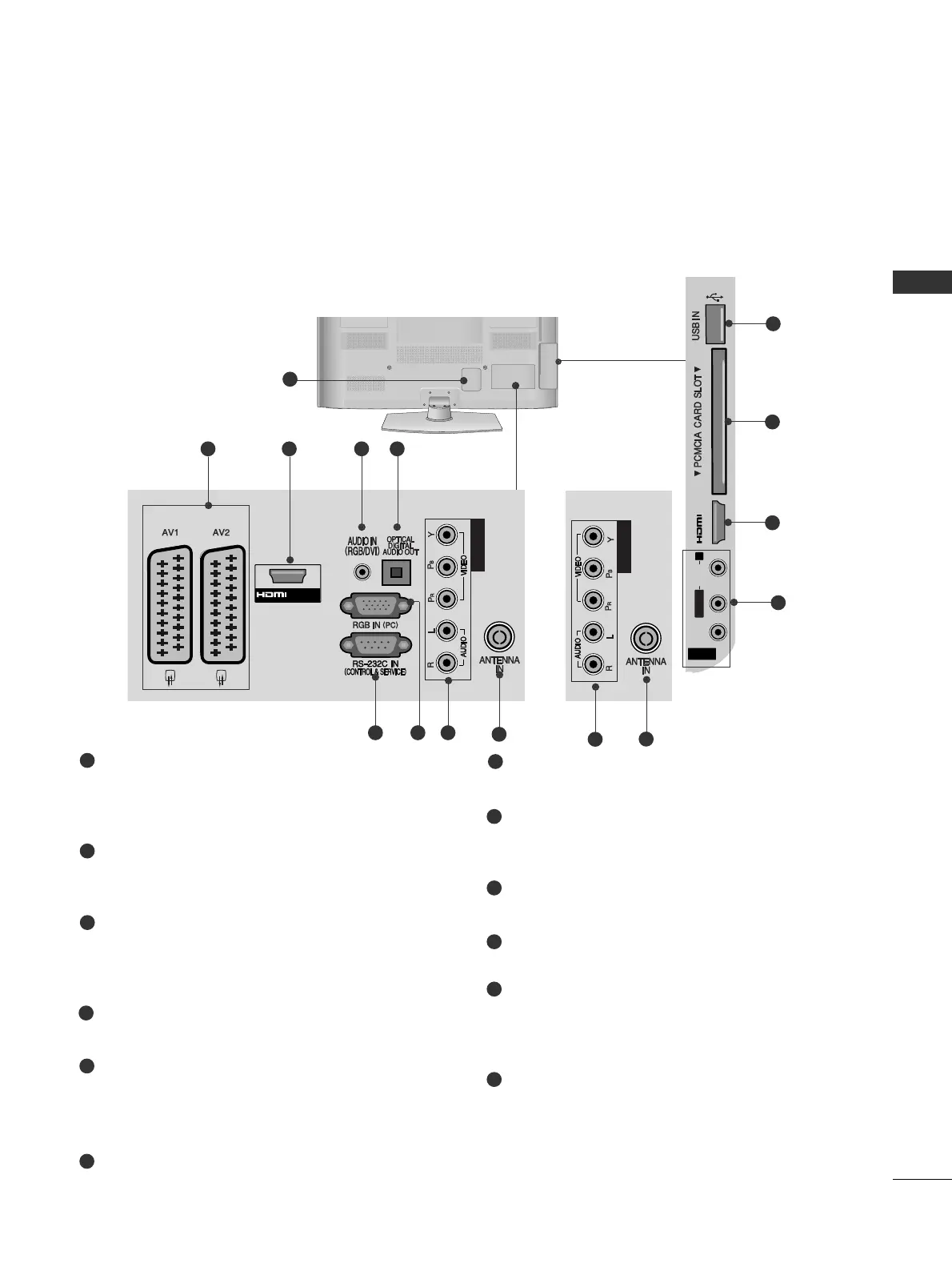

Power Cord Socket
This TV operates on an AC power. The voltage is
indicated on the Specifications page. (
GG
p.113 t o
114
) Never attempt to operate the TV on DC power.
Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from an
external device to these jacks.
HDMI/DVI IN Input
Connect an HDMI signal to HDMI IN. Or DVI
(VIDEO) signal to HDMI/DVI port with DVI to
HDMI cable.
RGB/DVI Audio Input
Connect the audio from a PC or DVI.
OPTICAL DIGITAL AUDIO OUT
Connect digital audio to various types of equipment.
Connect to a Digital Audio Component.
Use an Optical audio cable.
RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.
This port is used for Service or Hotel mode.
RGB IN Input
Connect the output from a PC.
Component Input
Connect a component video/audio device to
these jacks.
Antenna Input
Connect antenna or cable to this jack.
USB Input
Connect USB storage device to this jack.
PCMCIA (Personal Computer Memory Card
International Association) Card Slot
Insert the CI Module to
PPCCMMCCIIAA CCAARRDD SSLLOOTT..
(This feature is not available in all countries.)
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
1
2
3
4
5
6
7
8
9
10
11
12
AV IN 3
L/MONO
R
AUDIO
VIDEO
S-VIDEO
USB IN
SERVICE ONLY
COMPONENT IN
IN 2
1
/DVI IN 1
AV IN 3
L/MONO
R
AUDIO
VIDEO
S-VIDEO
USB IN
SERVICE ONLY
COMPONENT IN
IN 2
2 43 5
876
AV IN 3
L/MONO
R
AUDIOAUDIO
VIDEOVIDEO
S-VIDEO
USB IN
SERVICE ONLY
COMPONENT IN
IN 2
10
9
11
3
12
42/50PJ3
**
, 42/50PJ5
**
, 42/50PJ6
**
, 50PK3
**
COMPONENT IN
SERVICE
ONLY
SERVICE
ONL
Y
COMPONENT INCOMPONENT IN
IN 2
8
9
or

LG 42PJ550 Specifications

General

Integrated clock	Yes
Number of AV connections	2
Mean time between failures (MTBF)	100000 h
RS-232 ports	1
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
LED indicators	Stand-by
Display diagonal	42 \
Display brightness	1500 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	3000000:1
RMS rated power	20 W

Weight and Dimensions

Depth (with stand)	309.7 mm
Width (with stand)	1171.4 mm
Height (with stand)	786.2 mm
Weight (with stand)	31000 g
Depth (without stand)	55.3 mm
Height (without stand)	724.4 mm
Weight (without stand)	28600 g
