LG 47LB5800 Service Manual

- 14 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5.2. Tool Option setting & Inspection per
countries
5.2.1. Overview
(1) Tool option selection is only done for models in Non-USA
North America due to rating
(2) Applied model: LA46B Chassis applied to CANADA and
MEXICO
5.2.2. Country Group selection
(1) Press ADJ key on the Adj. R/C, and then select Country
Group Menu
(2) Depending on destination, select US, then on the lower
Country option, select US, CA, MX.
Selection is done using +, - KEY
5.2.3. Tool Option inspection
▪ Press Adj. key on the Adj. R/C, then select Tool option
Model Tool 1 Tool 2 Tool 3 Tool 4 Tool 5 Tool 6 Tool 7
32LB580B-UG(Sharp) 6769 13329 33152 64070 4566 1353 41771
32LB580B-UG(LGD) 625 13329 33152 64070 4310 1354 41771
32LB5800-UG 625 13329 33152 64070 4310 1353 41771
39LB5800-UG 14963 13329 33152 64070 4566 1353 41771
42LB5800-UG(LGD) 628 13329 33152 64070 4310 1433 41771
42LB5800-UG(AUO) 4724 13329 33152 64070 4310 1353 41771
47LB5800-UG 629 13329 33152 64070 4310 1353 41771
50LB5800-UG(AUO) 4726 13329 33152 64070 4310 1353 41771
50LB5800-UG(INX) 14966 13329 33152 64070 4310 1353 41771
55LB5800-UG(LGD) 631 13329 33152 64070 4310 1402 41771
55LB5800-UA(AUO) 4727 13329 33152 64070 4310 1353 41771
47LB6100-UG 677 13329 33152 64070 12502 1353 41771
50LB6100-UG(LGD) 678 13329 33152 64070 12502 1353 41771
50LB6100-UG(AUO) 4774 13329 33152 64070 12502 1353 41771
50LB6100-UG(INX) 15014 13329 33152 64070 12502 1353 41771
55LB6100-UG(LGD) 679 13329 33152 64070 12502 1402 41771
55LB6100-UG(AUO) 4775 13329 33152 64070 12502 1353 41771
60LB6100-UG 39592 13329 33152 64070 12502 1353 41771
65LB6190-UD 34467 13329 33152 64070 12502 1353 41771
※ Tool option can be reconstructed by Software
5.3. Magic Motion remote controller Check
5.3.1. Test equipment
▪ RF-remote controller for check, IR-KEY-CODE remote
controller.
▪ Check AA battery before test. A recommendation is that a
tester change battery every lots.
5.3.2. Test
(1) Make pairing with TV set by pressing “Start key(Wheel
key)” on RCU.
(2) Check a cursor on screen by pressing ‘Wheel key” of RCU
(3) Stop paring with TV set by pressing “Back+ Home” key of
RCU
5.3.3. Applied models
Chassis Model Name Magic RF receiver
LA46B 32LB580B-UG Dongle
32/39/42/47/50/55LB5800-
UG
47/50/55/60LB6100-UG
※ Dongle Model : An USB dongle-type receiver will be
supplied in form of accessory. So this
pairing test is not necessary for these
models

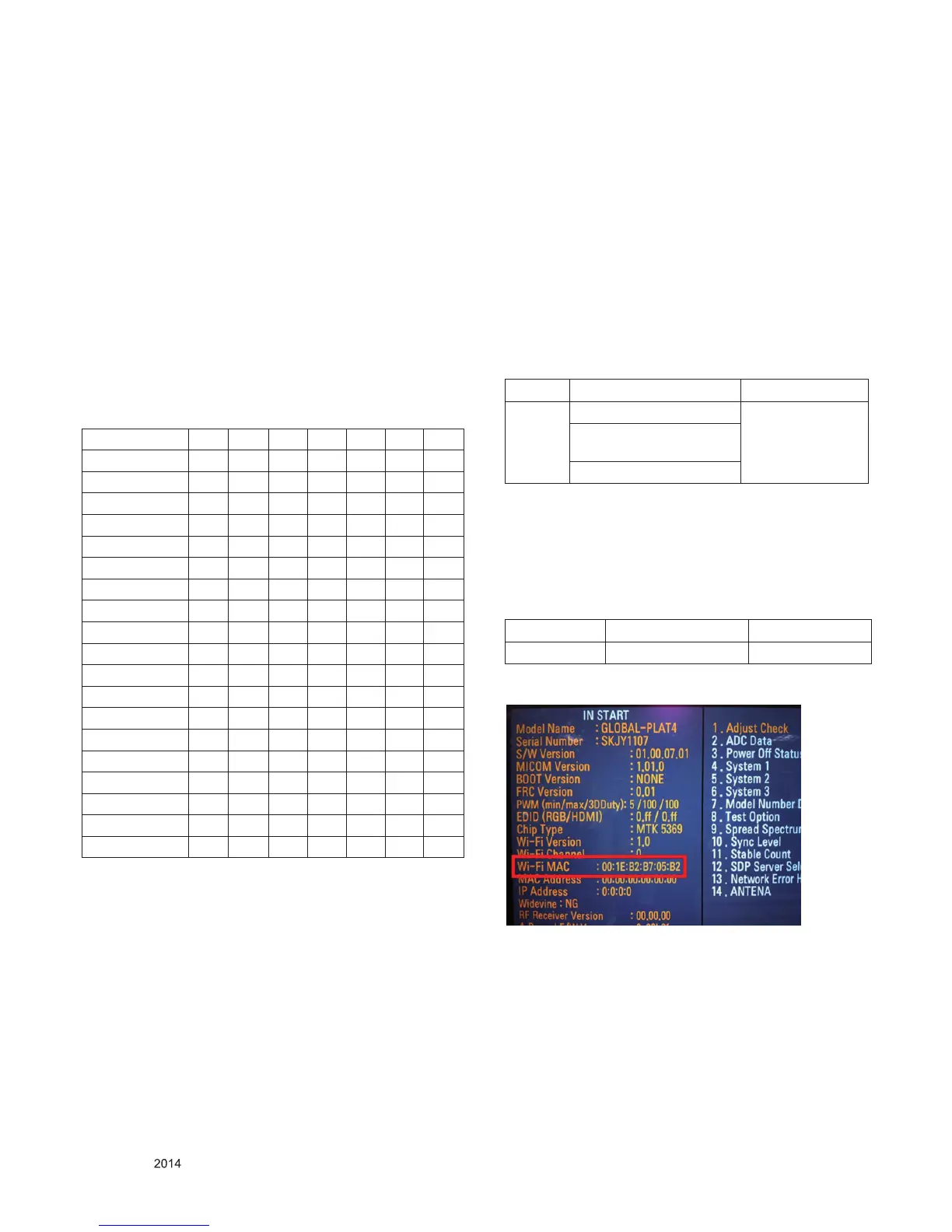

5.4. Wi-Fi MAC Address Check
5.4.1. Using RS232 Command
Command Set ACK
Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]
5.4.2. Check the menu on in-start

LG 47LB5800 Specifications

General

Screen Type	led
Wall Mount	400mm x 400mm
Screen Size	46.9 inches, 47 inches
Refresh Rate	60hz
USB Ports	1
RF Antenna	yes
Headphones Output	yes
Digital Optical Audio Outputs	1
Analog Audio Outputs	1
Component Video Inputs	1
Composite Video Inputs	1
DVI	1
Remote Control	standard
3D	no
Width with Stand	42.25 inches
Depth without Stand	2.25 inches
Height without Stand	24.88 inches
Net Weight without Stand	27.1 pounds
