MAKING CONNECTIONS
(Only LB87**)
VIDEO
MONO
( )
AUDIO
L R
COMPONENT
PB
Y
IN
COMPONENT
YP B AUDIO
AV
P R VIDEO
VCR / DVD / Blu-Ray /
HD Cable Box
RED RED
RED
WHITE
WHITE
WHITE
YELLOW
YELLOW
YELLOW
(Use the composite
gender cable provided.)
(*Not Provided)
YELLOW

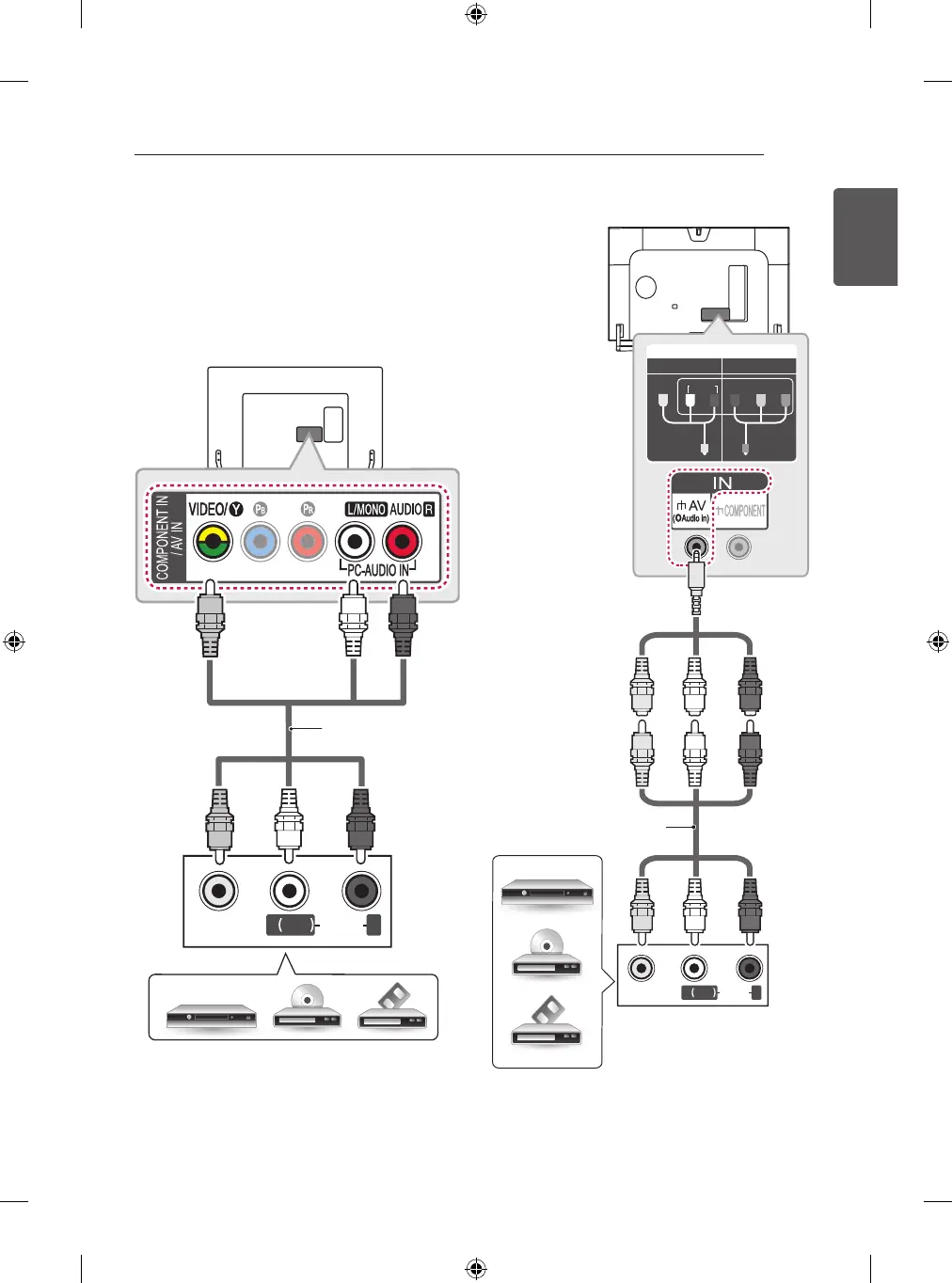

Composite connection
Transmits analog video and audio signals
from an external device to the TV. Connect the
external device and the TV with the composite
cable as shown.
(Only LB63**, LB65**, LB67**, LB69**, LB72**,
LB75**)
VIDEO
MONO
( )
AUDIOL R
YELLOW
WHITE
RED
RED
WHITE
DVD / Blu-Ray / HD Cable Box / VCR
YELLOW
(*Not Provided)
