Composite Connection

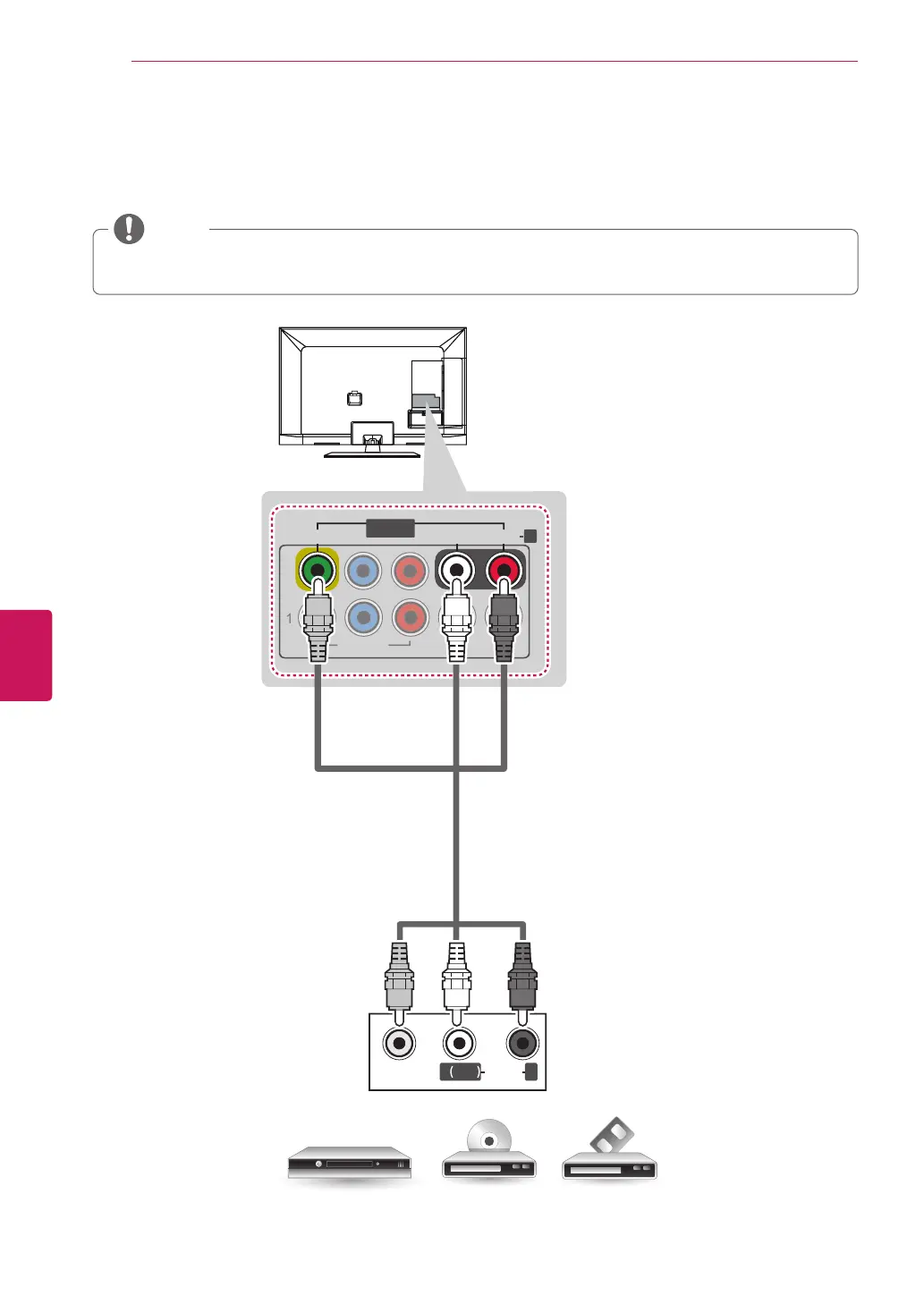

Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with the composite cable as shown in the following illustration.
If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the
TV.
NOTE
L
R
VIDEO
P
B
P
R
1
2
Y
AUDIO
R
L/MONO
V
IDE
O
AU
DI
O
AV IN
VIDEO
MONO
( )
AUDIOL R
VCR / DVD / Blu-Ray / HD Cable Box
(*Not Provided)
YELLOW
WHITE
RED
YELLOW
WHITE
RED
ENGLISH
26
MAKING CONNECTIONS
