LG 47LM7600 User Manual

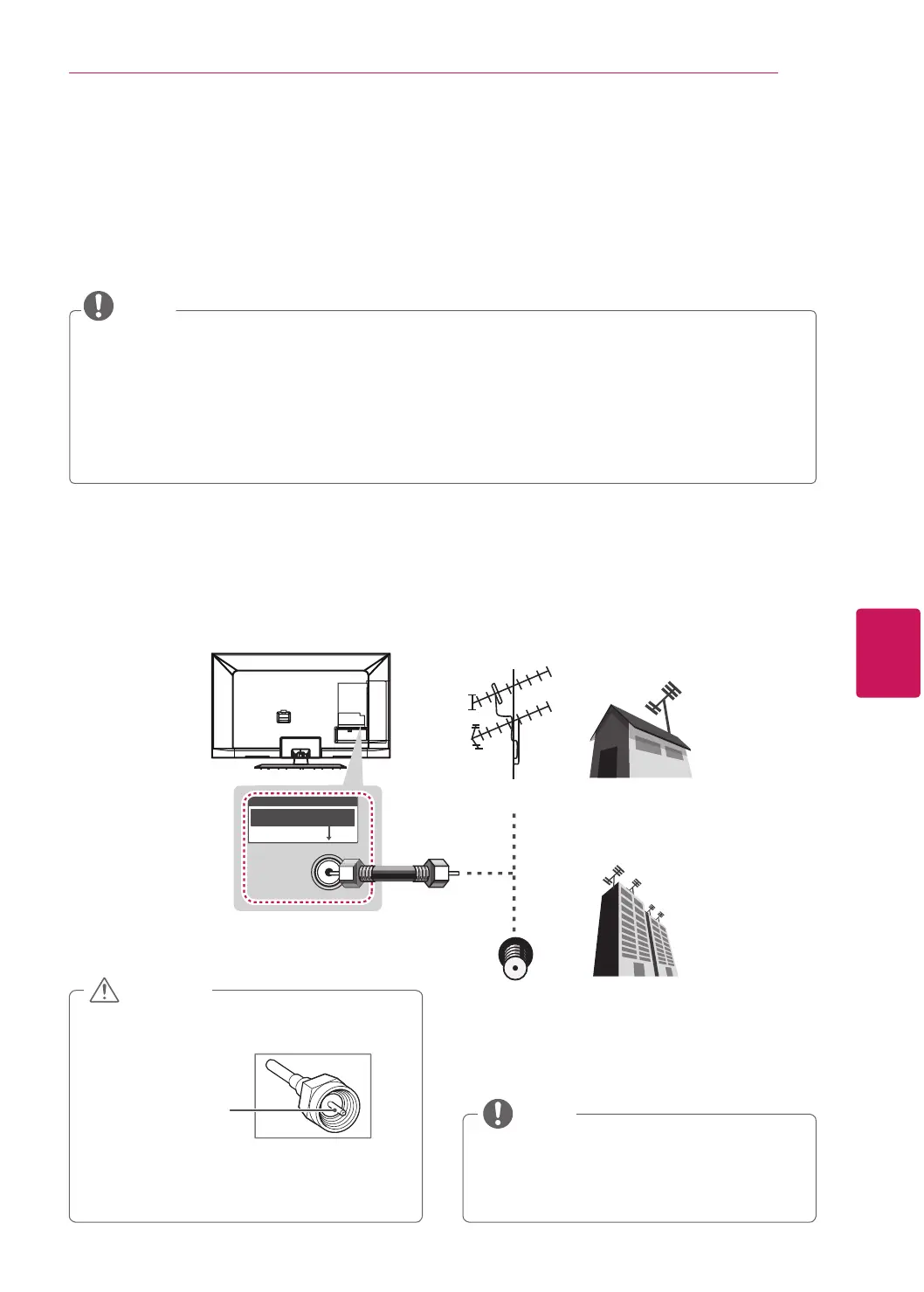

Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may
differ from the actual items and a RF cable is optional.
ANTENNA / CABLE
VHF Antenna
UHF Antenna
Antenna
Terminal
Coaxial (75Ω)
MAKING CONNECTIONS
Connect various external devices to the TV and switch input modes to select an external device. For more
information on external device’s connection, refer to the manual provided with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC,
gaming devices, and other external devices.
NOTE

If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable
to the TV through a DVD recorder or VCR. For more information on recording, refer to the manual
provided with the connected device.

The external device connection may differ from the model.

Connect external devices to the TV regardless of the order of the TV port.

If you connect a gaming device to the TV, use the cable supplied with the gaming device.

Refer to the external equipment’s manual for operating instructions.

Make sure not to bend the copper wire of
the RF cable.
Copper wire

Complete all connections between devices,
and then connect the power cord to the
power outlet to prevent damage to your TV.
CAUTION

Use a signal splitter to use more than 2 TVs.

Visit http://lgknowledgebase.com for more
information about the antenna and cable
connection. Search for antenna.
NOTE
ENGLISH
21
MAKING CONNECTIONS

LG 47LM7600 Specifications

General

Display diagonal	47 \
LED backlighting type	Edge-LED
Supported video modes	1080i, 1080p, 720p
Contrast ratio (dynamic)	9000000:1
Display diagonal (metric)	119.38 cm
Screen format adjustments	4:3, 16:9, Zoom
Supported graphics resolutions	1920 x 1080 (HD 1080)
Motion interpolation technology	TruMotion
3D	Yes
Supported 3D technologies	FPR 3D
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
Audio system	Dolby
RMS rated power	20 W
Number of speakers	2
DVI port	No
HDMI ports quantity	4
DVI-D ports quantity	0
Common interface (CI)	-
USB 2.0 ports quantity	3
Component video (YPbPr/YCbCr) in	1
Smart modes	Cinema, Game, Standard, Vivid
Lifestyle apps	Skype
On Screen Display (OSD) languages	ENG, ESP, FRE, KOR
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Sustainability certificates	ENERGY STAR
Package depth	135 mm
Package width	1321 mm
Package height	810 mm
Package weight	21520 g

Weight and Dimensions

Depth (with stand)	264 mm
Height (with stand)	701 mm
Weight (with stand)	17524 g
Depth (without stand)	33 mm
Width (without stand)	1064 mm
Height (without stand)	627 mm
Weight (without stand)	15300 g
