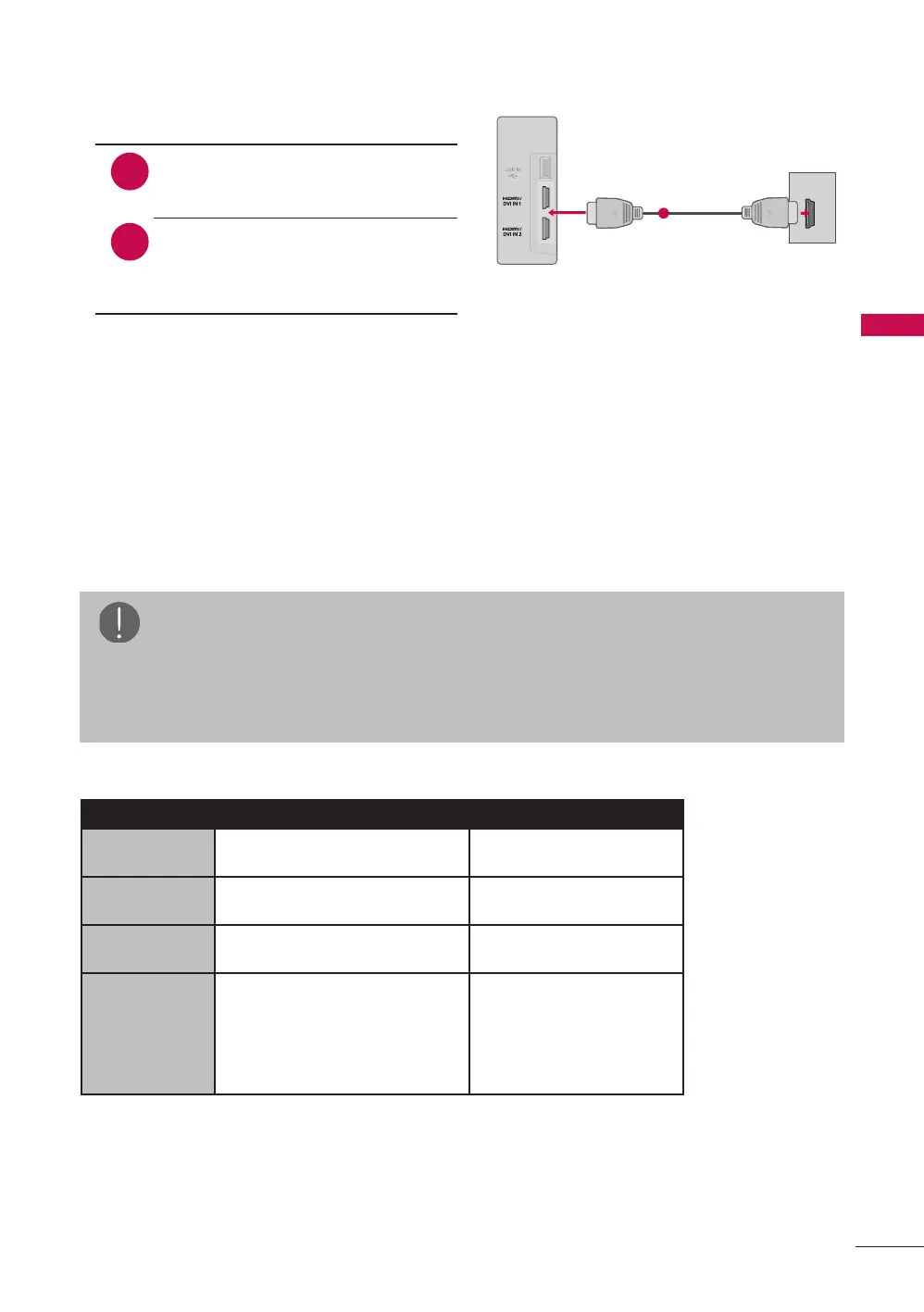

EXTERNAL EQUIPMENT SETUP
HDMI Connection
1. How to connect
1
2
Connect the digital set-top box
to HDMI/DVI IN 1, 2, or 3* jack
on the TV.
No separate audio connection is
necessary.
HDMI supports both audio and
video.
2. How to use
r Turn on the digital set-top box.
(Refer to the owner’s manual for the digital
set-top box operation.)
r Select the HDMI 1, HDMI 2, or HDMI 3* input
source on the TV using the INPUT button on
the remote control.
* HDMI 3: For 42LV4400, 47LV4400,
55LV4400
HDMI-DTV
Resolution Horizontal Frequency(kHz) Vertical Frequency(Hz)
720x480p
31.47
31.50
59.94
60.00
1280x720p
44.96
45.00
59.94
60.00
1920x1080i
33.72
33.75
59.94
60.00
1920x1080p
26.97
27.00
33.71
33.75
67.43 2
67.5 0
23.976
24.00
29.97
30.00
59.94
60.00
NOTE
a If an HDMI cable doesn’t support High Speed HDMI, it can cause flickers or no
screen display. In this case use the latest cables that support High Speed HDMI.
a HDMI Audio Supported Format: Dolby Digital (32 kHz, 44.1 kHz, 48 kHz), Linear
PCM (32 kHz, 44.1 kHz, 48 kHz)
