MAKING CONNECTIONS
MAKING CONNECTIONS
f This section uses illustrations of the UB8300 series.
You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD
players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.
For more information on external device’s connection, refer to the manual provided with each device.
f If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the
manual provided with the connected device.
f The external device connections shown may differ slightly from illustrations in this manual.
f Connect external devices to the TV regardless about the order of the TV port.
f If you connect a gaming device to the TV, use the cable supplied with the gaming device.
f Refer to the external equipment’s manual for operating instructions.
NOTE
Connecting to an Antenna or Cable

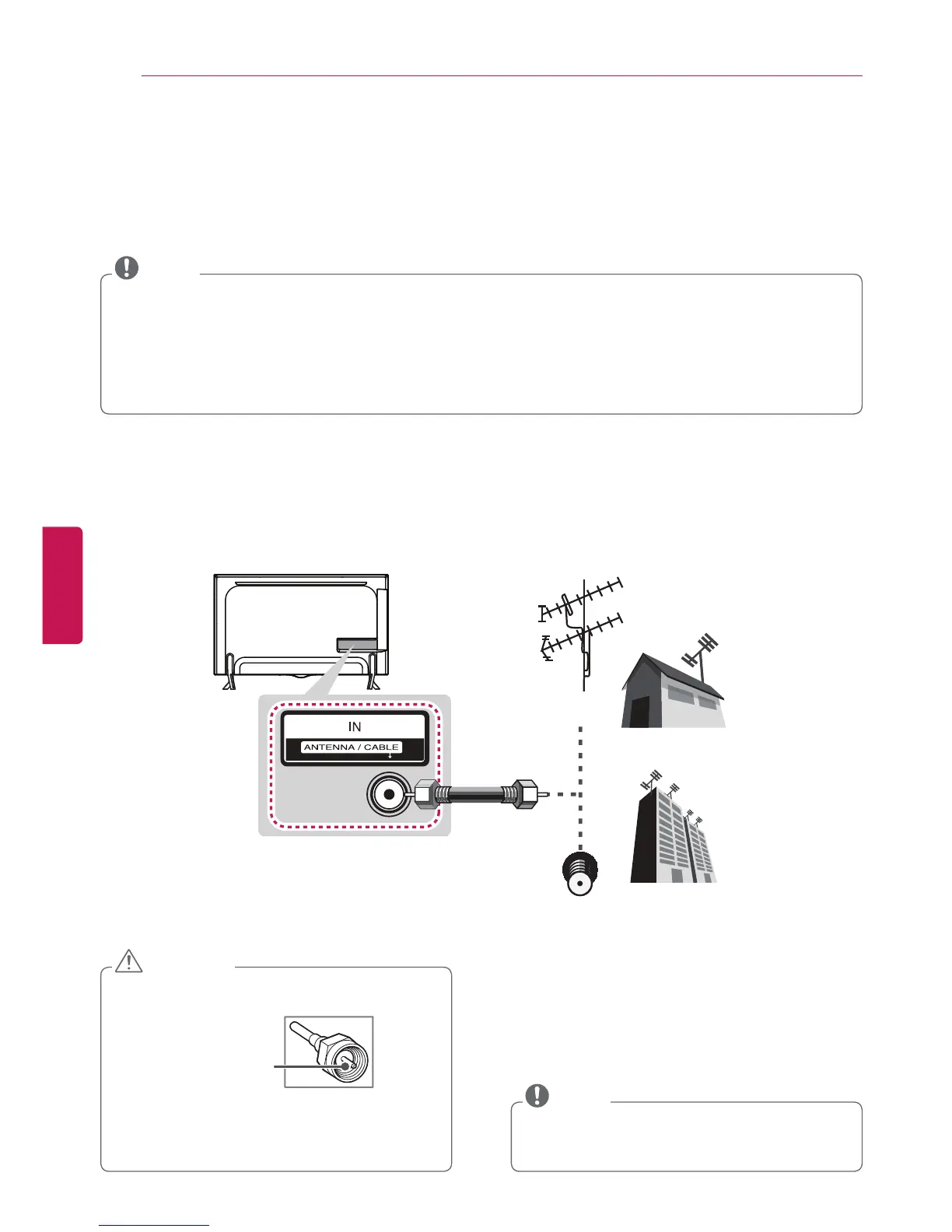

Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations
may differ from the actual items and an RF cable is optional.
VHF Antenna
UHF Antenna
Coaxial (75Ω)
(*Not provided)
Antenna
Terminal
f Make sure not to bend the copper wire of
the RF cable.
Copper wire
f Complete all connections between devices,
and then connect the power cord to the
power outlet to prevent damage to your TV.
CAUTION
f Use a signal splitter to use 2 TVs or more.
f DTV Audio Supported Codec: MPEG,
Dolby digital.
NOTE
To Next Page
