EXTERNAL CONTROL DEVICE SETUP
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
* The connection interface may differ from your TV.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC
)
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- or
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2

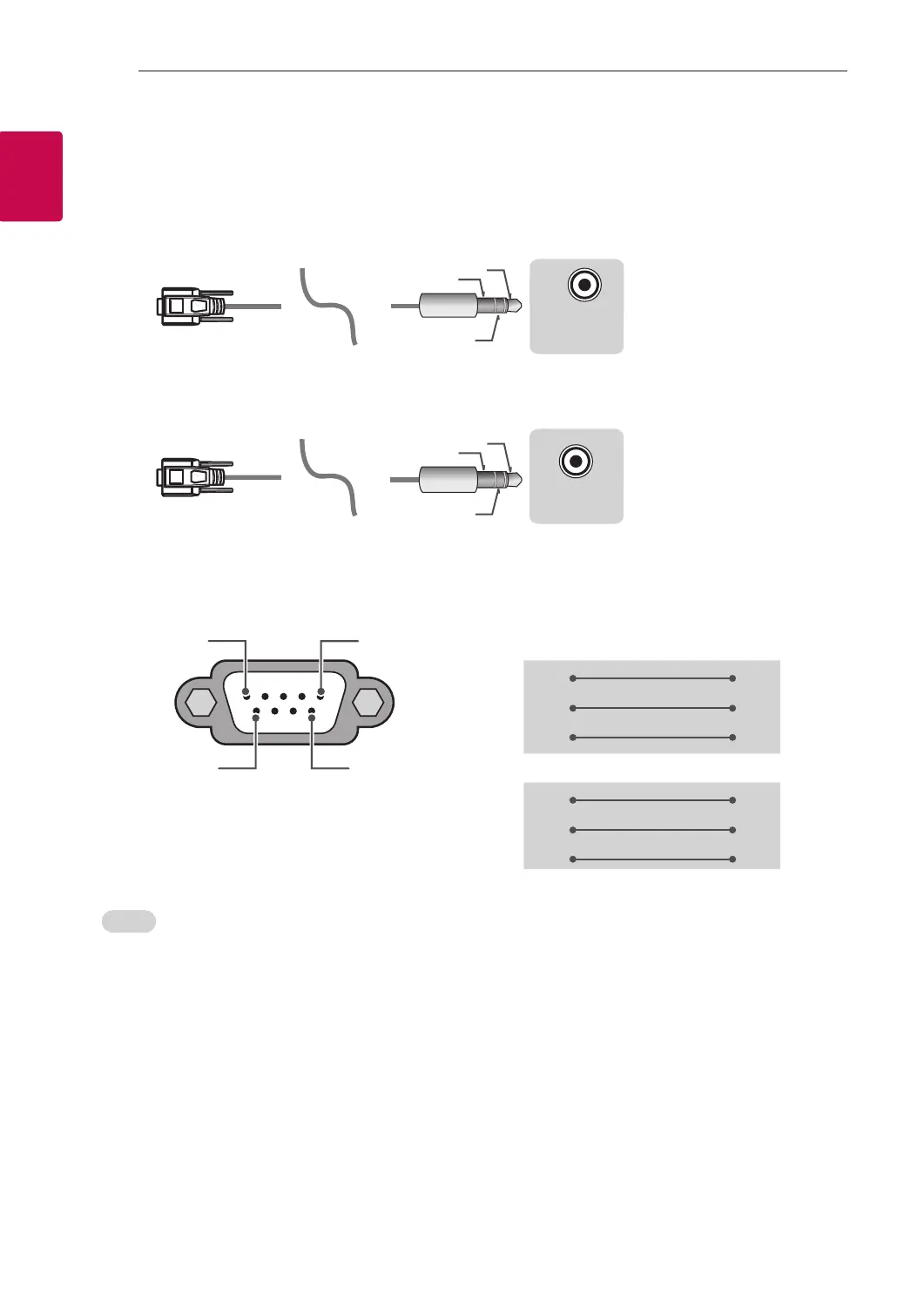

Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
OR
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p.6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
* (Depending on model)

LG 49UJ6500 Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	49 \
Display brightness	- cd/m²
Display technology	LED
Native aspect ratio	16:9
Display diagonal (metric)	123 cm
Motion interpolation technology	TruMotion 60 Hz
3D	No
App store	LG Content Store
Operating system version	3.5
Operating system installed	Web OS
Wi-Fi standards	Wi-Fi 5 (802.11ac)
HDMI ports quantity	4
USB 2.0 ports quantity	2
Digital audio optical out	1
Component video (YPbPr/YCbCr) in	-
Consumer Electronics Control (CEC)	SimpLink
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Audio system	DTS
RMS rated power	20 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Product color	Silver
Panel mounting interface	300 x 300 mm
Package depth	158 mm
Package width	1193 mm
Package height	770 mm
Package weight	13600 g
Tuner type	Analog & digital

Weight and Dimensions

Depth (with stand)	232.9 mm
Height (with stand)	705 mm
Weight (with stand)	11500 g
Depth (without stand)	79.4 mm
Width (without stand)	1107 mm
Height (without stand)	645 mm
Weight (without stand)	11300 g
