A
C
CESSING INST
ALLATION

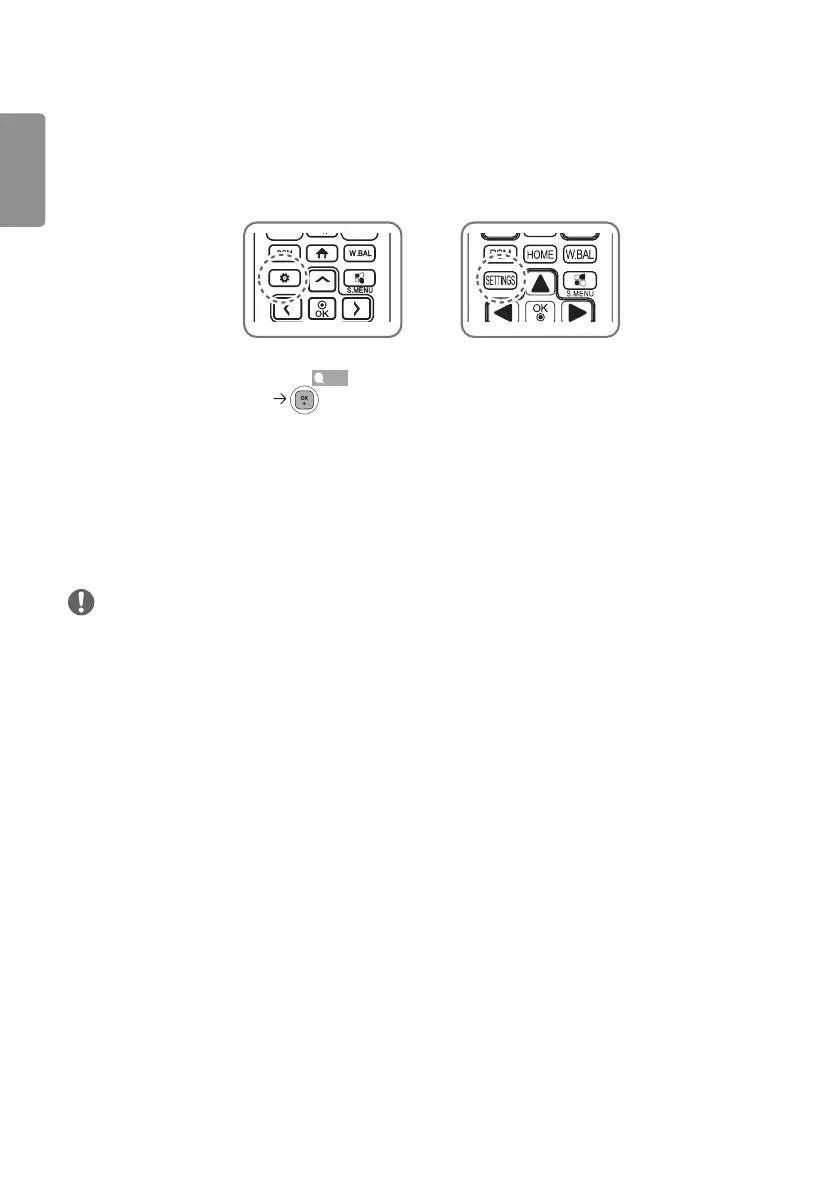

MENU
1
Pr
ess and hold the SET
TINGS button for 5 seconds.
or
2
When
Input ID (The top right c
orner
) is displayed, enter your passwor
d.
(The default value is 0, 0, 0, 0
)
3
When the
Install
ation Menu is displayed, select the desir
ed option.
-
Signage Setup
-
USB Cloning
-
P
assword Change
-
Fail Ov
er
-
ISM Method
-
Server
-
Lock Mode
NOTE
•
Images in the manual may look different fr
om the actual product.
ENGLISH
4
99
101
Table of Contents
Table of Contents
2
Important Precautions
3
Electrical Power Related Precautions
3
Precautions in Installing the Product
5
Precautions for Moving the Product
6
Precautions for Using/Cleaning the Product
7
Product Disposal (Only, Hg Lamp Used LCD Monitor)
7
Assembly and Preparation
8
Optional Accessories
8
Buttons
9
Portrait Layout
10
Attaching and Removing the LG Logo Bracket
10
Installing on a Wall
12
Safety and Precaution Guide for Installation
15
Remote Control
16
Making Connections
18
Connecting to a PC
18
External Device Connection
18
Connecting Multiple Monitors
20
Using the Input List
21
Troubleshooting
22
Product Specifications
25
Licenses
28
User Settings
32
Main Menu Settings
32
Picture Settings
32
Sound Settings
36
Network Settings
38
General Settings
41
Entertainment
44
Using Multimedia Features
44
Connecting USB/SD Storage Devices
44
Photo & Video
47
Supported Photo & Video Files
47
Viewing Photos and Videos
49
Scheduled Playing
50
Export
50
Music
51
Supported Music Files
51
Playing Music
51
Delete
51
Supersign Contents
52
Information
52
Local Contents Scheduler
53
Setting a Scheduled Playing
53
Screen Share
54
Configuring Widi (Wireless Display)
54
Group Manager
55
Leveler Tool
57
Control Manager
58
How to Use
59
Follow the Steps below if You Encounter Issues
60
Multi-Screen
63
PICTURE ID Settings
64
Ir Codes
65
To Control Multiple Products
67
Connecting the Cable
67
Communication Parameter
68
Command Reference List
69
Transmission/Reception Protocol
73
Current Temperature] D N
79
Time Elapsed] D L
80
Product Serial Number] F y
80
Software Version] F Z
80
White Balance Red Gain] J M
80
White Balance Green Gain] J N
80
White Balance Blue Gain] J O
80
White Balance Red Offset] S X
80
White Balance Green Offset] S y
80
White Balance Blue Offset] S Z
81
Screen Off] K D
81
Tile Mode] D D
81
Check Tile Mode] D Z
81
Tile ID] D I
81
Natural Mode] D J
82
DPM (Standby Mode)] F J
82
Remote Control]/[Local Key Lock] K M
82
Power on Delay] F H
82
Fail over Select] M I
82
Fail over Input Select] M J
83
IR Operation]
83
Local Key Operation]
83
DATA (Hexadecimal)
83
Daylight Saving Time] S
84
PM Mode] S
85
ISM Method] J
85
Network Settings] S
85
Auto-Adjustment] J U
86
Power on Status]
86
Wake on LAN (Networked Standby Mode)]
86
Intelligent Auto]
87
OSD Portrait Mode]
87
Reset to Initial Settings]
87
Time Sync] S N
87
Contents Sync]
87
Pivot Mode]
87
Studio Mode] S N
88
LAN Daisy Chain] S N
88
Content Rotation] S N
88
DPM (Standby Mode) Wake up Control] S N, 0B 00 to
88
Scan Inversion] S N
88
Aspect Ratio] ([Rotation]) S N
89
Easy Brightness Control Mode] S M
89
Easy Brightness Control Schedule] S S
89
Aspect Ratio] ([Multiscreen]) X D
90
Screen Mute] ([Multiscreen]) X E
90
Screen off Always] S N, 0D
90
Screen Video Freeze] K X
90
Wireless [Wake on LAN (Networked Standby Mode)] S N
91
Justscan Toggle] S N
91
Holiday Schedule Mode] S N, 1A
91
Holiday Schedule] S N, 1B
91
Dual Screen Off] S N
92
Fan Control] D O
92
Fan Failure Check] D W
92
Luminance Value Read] M U
92
BLU Maintenance] M
92
T 93 [Power Indicator Settings] F O
93
OSD Display] K L
93
Semi-Transparent Brightness] S N
93
Hybrid Mode] S N
93
Return Interval] S N
93
Proximity Sensitivity] S N
93
HDMI IT Contents] S N
94
Upnp Mode] S N, 9C
94
Model Name Check] F V
94
Analog Signage BLU Setting S N, C2
94
Analog Signage BLU On/Off
95
S N, C3
95
BLU Manual On/Off S N, C4
95
Silent Fan Mode S N, C7
95
Accessing Installation Menu
100
Installation Menu
101
Signage Setup
101
Power on Status
101
Wake on LAN
101
LAN Daisy Chain
101
Power off Management
102
Rotation
104
Beacon
105
Baudrate (9600/115200)
105
Power on Delay (0 ~ 250)
106
Check Screen
106
Digital Audio Input
106
Speaker
106
USB Auto Playback
106
Interface Selection
107
OPS Power Control
107
Multi Display Mode
107
Power Indicator
107
Sync Mode
108
Intelligent Auto
109
Studio Mode
109
HDMI IT Contents
109
White Balance
109
Application
110
Web Browser
110
Status Message
111
SIMPLINK Setup
112
Local Dimming
112
Holiday Schedule
112
Easy Brightness Control
112
Analog Signage BLU Setting
113
Crestron
113
Enterprise Settings
113
No Signal Image
113
Signage 365 Care
114
Quiet Mode (Fan OFF)
114
Factory Reset
114
Guide to Using Content Rotation
115
USB Cloning
117
Send to USB
117
Receive from USB
117
Logo Image Download
117
Password Change
117
Fail over
118
Manual
118
ISM Method
119
Mode
119
Repeat
120
Wait
120
Repeat Day
120
Start Time
120
End Time
120
Action Cycle
121
Bar Image
121
Bar Color
121
Direction
121
Bar Image Download
122
User Image Download
122
User Video Download
122
How to Reset or Delete Downloaded Bar
122
Server
123
Set Automatically
123
Server IP Type
123
Server IP
123
Server Status
123
Port Number
123
Secured Connection
123
Control Server IP Type
123
Control Server IP
123
Control Server Port
123
Lock Mode
124
Usb
124
Osd
124
Wi-Fi
124
Reset to Initial Settings
124
IR Operation
124
Local Key Operation
124
