EXTERNAL EQUIPMENT SETUP
22
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do
receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.

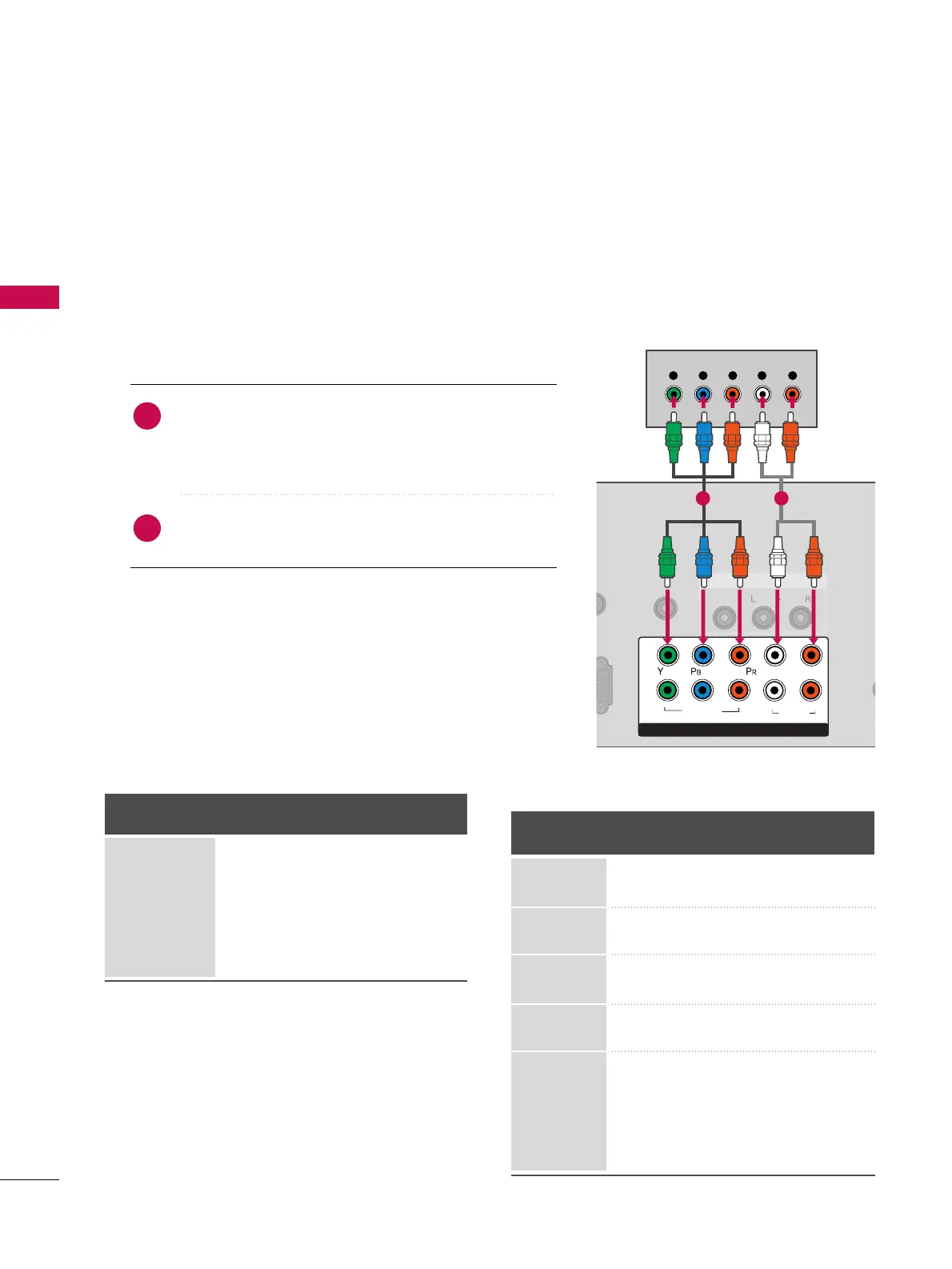

Component Connection
1. How to connect
Connect the video outputs
(
Y, PB, PR
)
of the digital set-
top box to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO 11
jacks on
the TV. Match the jack colors (Y = green, P
B = blue, and
P
R = red).
Connect the audio output of the digital set-top box to
the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO 11
jacks on the TV.
2
1
2. How to use
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box. operation
)
■
Select the
CCoommppoonneenntt11
input source on the TV using the
IINNPPUUTT
button on the remote control.
■
If connected to
CCOOMMPPOONNEENNTT IINN 22
input, select the
CCoommppoonneenntt22
input source on the TV.
■
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
■
Image shown may differ from your TV.
ANT
CA
O IN
/DVI)
REMOTE
CONTROL IN
AUDIO
VIDEO
/MONO
AV IN 1
COMPONENT IN
1
2
VIDEO
AUDIO
L
R
Y L RPB PR
1
2
Y, CB/PB, CR/PR
Supported Resolutions
Horizontal Vertical
Frequency
(
KHz
)
Frequency
(
Hz
)
15.73 59.94
15.73 60.00
31.47 59.94
31.47 60.00
44.96 59.94
45.00 60.00
33.72 59.94
33.75 60.00
27.00 24.00
33.75 30.00
67.432 59.939
67.50 60.00
26.97 23.94
33.71 29.97
Resolution
720x480i
720x480p
1280x720p
1920x1080i
1920x1080p
Signal
480i
480p
720p
1080 i
1080 p
Component
Yes
Yes
Yes
Yes
Yes
HDMI
No
Yes
Yes
Yes
Yes

LG 50PJ350 Specifications

General

Depth	55.8 mm
Height	721.36 mm
Weight	27600 g
Pixel pitch	0 mm
Audio system	Mono/Stereo/Dual (MTS/SAP), Dolby Digital
Product color	Black
LED indicators	Stand-by
RMS rated power	20 W
Display diagonal	50 \
Depth (with stand)	309.9 mm
Display brightness	1500 cd/m²
Display resolution	1365 x 768 pixels
Display technology	Plasma
Power requirements	100V - 240V AC, 50/60Hz
Width (with stand)	1170.9 mm
Auto channel search	Yes
HDMI ports quantity	3
Height (with stand)	782.3 mm
High frequency rate	600 Hz
Weight (with stand)	30000 g
USB 2.0 ports quantity	1
Contrast ratio (dynamic)	3000000:1
Contrast ratio (typical)	-
Panel mounting interface	400 x 400 mm
Lifetime to 50% brightness	100000 h
Power consumption (standby)	0.1 W
Component video (YPbPr/YCbCr) in	2
