LG 50PK350 User Manual

APPENDIX
114
APPENDIX
EXTERNAL CONTROL THROUGH RS-232C
RS-232C Setup

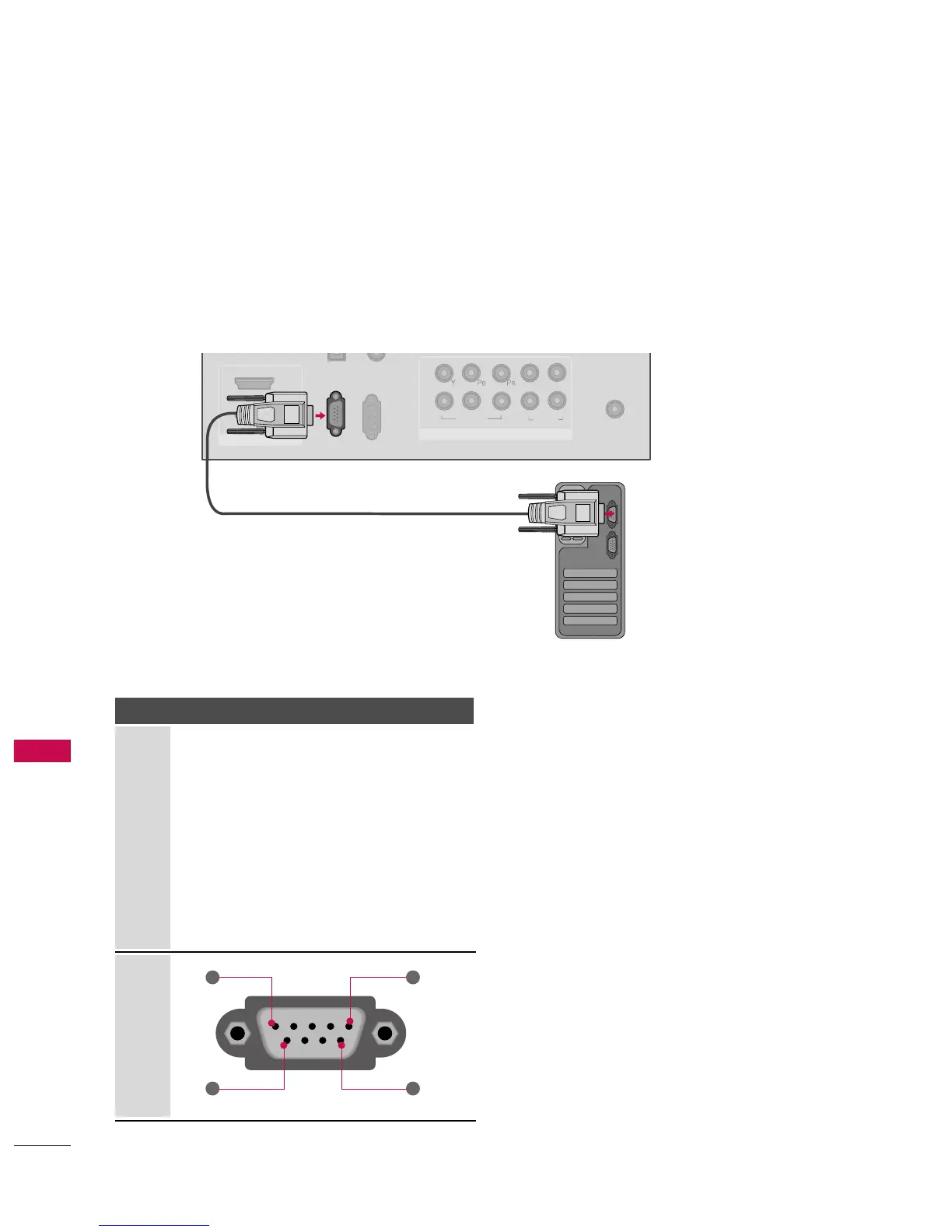

The RS-232C port allows you connect the RS-232C input jack to an external control device (such as a computer
or an A/V control system) to control the TV’s functions externally.
■
Note: RS-232C on this unit is intended to be used with third party RS-232C control hardware and software.
The instructions below are provided to help with programming software or to test functionality using telenet
software.
RGB(PC)
ANTENNA
IN
1
2
COMPONENT IN
VIDEO
AUDIO
L
R
HDMII IN
2
1
RS-232C IN
(CONTROL & SERVICE)
Ty p e o f C o n n e c t o r ; D - S u b 9 - P i n M a l e
No. Pin Name
1 No connection
2RXD
(
Receive data
)
3TXD
(
Tra n s m i t d a t a
)
4DTR
(
DTE side ready
)
5GND
6DSR
(
DCE side ready
)
7RTS
(
Ready to send
)
8CTS
(
Clear to send
)
9No Connection
1
6
5
9
PC
Communication Parameters
■
Baud rate : 9600 bps
(
UART
)
■
Data length : 8 bits
■
Parity : None
■
Stop bit : 1 bit
■
Communication code : ASCII code
■
Use a crossed (reverse) cable.
