LG 50PK550 User Manual

209
APPENDIX

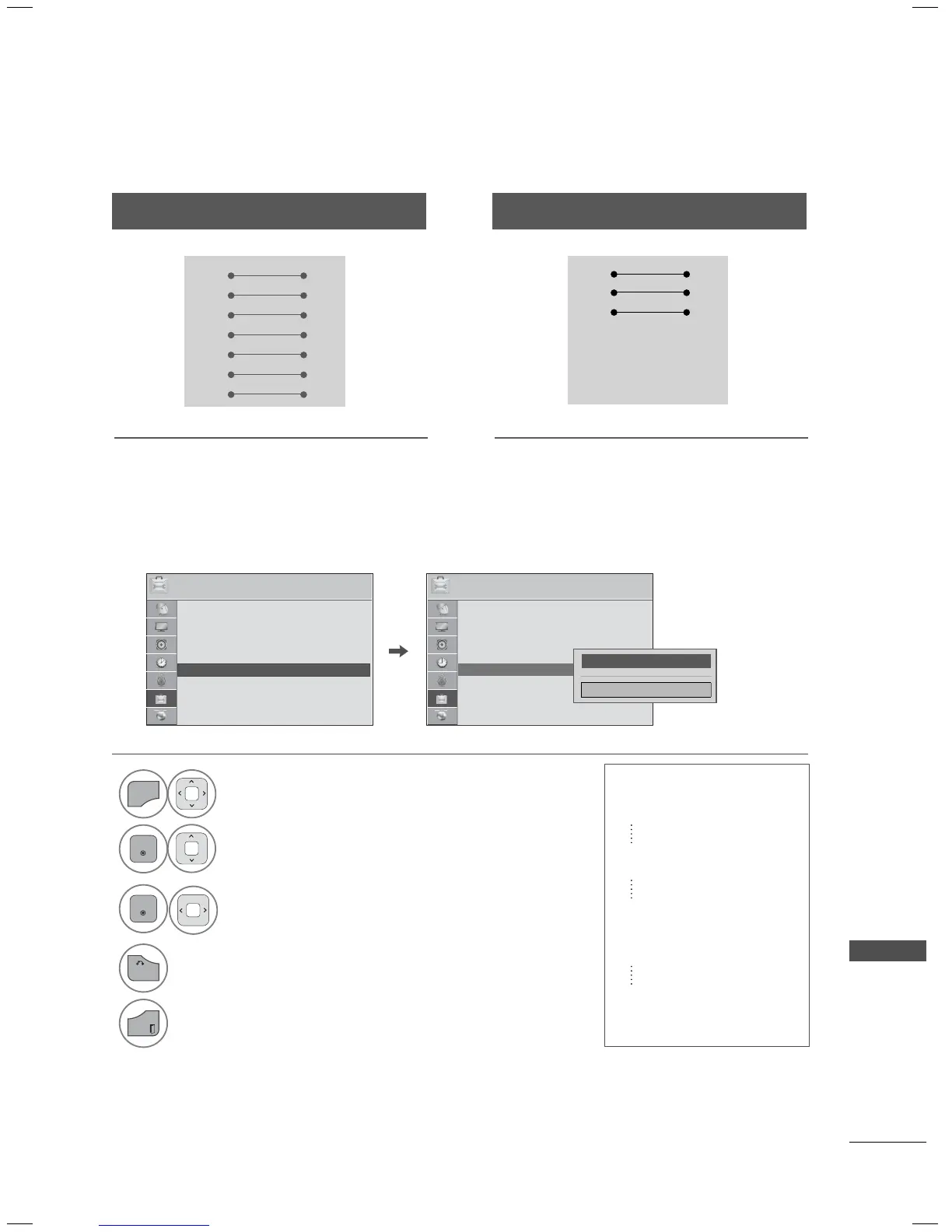

RS-232C Configurations
Use this function to specify a TV ID number.
Refer to ‘Real Data Mapping’.
Set ID
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9
7-Wire Configuration
(
Serial female-female NULL modem cable
)
3-Wire Configurations
(
Not standard
)
1
MENU
Select OPTION.
2
ENTER
Select Set ID.
3
ENTER
Choose the desired TV ID number.
The adjustment range of Set ID is 1~
99.
4
BACK
Return to the previous menu.
EXIT
Return to TV viewing.
ꔛ
Real data mapping
0 Step 0
A Step 10 (Set ID 10)
F Step 15 (Set ID 15)
10 Step 16 (Set ID 16)
63 Step 99 (Set ID 99)
64 Step 100
OPTION
ꔂ Move ꔉ Enter
OPTION
ꔂ Move ꔉ Enter
• Language
• Caption : Off
• Power Indicator
• Initial Setting
• Set ID : 1
• Mode Setting : Home Use
ꔀ
ꔉ
• Language
• Caption : Off
• Power Indicator
• Initial Setting
• Set ID : 1
• Mode Setting : Home Use
◀ 1 ▶
Close

LG 50PK550 Specifications

General

Depth	55.3 mm
Height	728.3 mm
Weight	28500 g
Equalizer	Yes
Audio system	Infinite Sound
Product color	Black
Response time	0.001 ms
Audio (L/R) in	2
LED indicators	Stand-by
RMS rated power	20 W
Display diagonal	50 \
Depth (with stand)	309.7 mm
Display technology	Plasma
Power requirements	100V - 240V, 50/60 Hz
Width (with stand)	1171.4 mm
HDMI ports quantity	3
Height (with stand)	786.2 mm
Weight (with stand)	31200 g
USB 2.0 ports quantity	1
Favorite pages quantity	31 pages
Contrast ratio (dynamic)	3000000:1
Panel mounting interface	400 x 400 mm
Viewing angle, horizontal	190 °
Lifetime to 50% brightness	1000000 h
Power consumption (standby)	0.1 W
Power consumption (typical)	190 W
