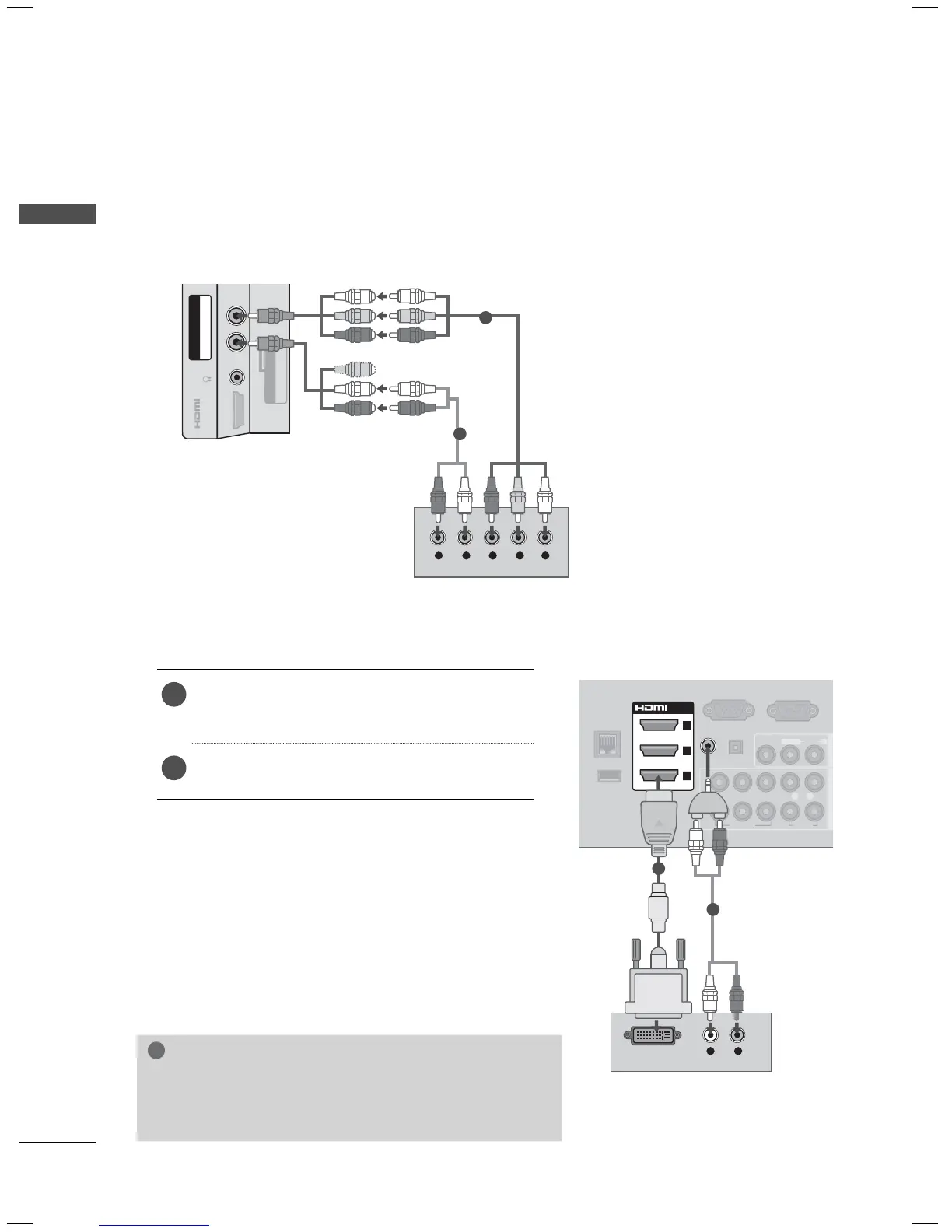

DVI to HDMI Connection
1. How to connect
1
Connect the DVI output of the digital set-top
box to the HDMI/DVI IN 1, 2, or 3* jack on the
TV.
2
Connect the digital set-top box audio output to
the AUDIO IN
(
RGB/DVI
)
jack on the TV.
2. How to use
ꔛ
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-
top box.
)
ꔛ
Select the HDMI1, HDMI2, or HDMI3* input source
on the TV using the
INPUT button on the remote
control.
!
NOTE
► A DVI to HDMI cable or adapter is required for this con-
nection. DVI doesn't support audio, so a separate audio
connection is necessary.
L R
DVI OUTPUT
AUDIO
RGB IN (PC)
LAN
WIRELESS
CONTROL
RS-232C IN
( CONTROL&SERVICE)
VIDEO AUDIO
L(MONO)
R
VIDEO
AUDIO
COMPONENT INAV IN 1
YP B P R
L R
AUDIO OUT
2
1
/DVI IN
2
3
1
(RGB/DVI)
AUDIO IN
OPTICAL DIGITAL
ꔡ
1
2
* HDMI3: Except 50/60PK550, 32/42/47/55LD650,
42/47LD655, 32/37/42/47LD840
For LED LCD TV
