MAKING CONNECTIONS
DVI to HDMI Connection

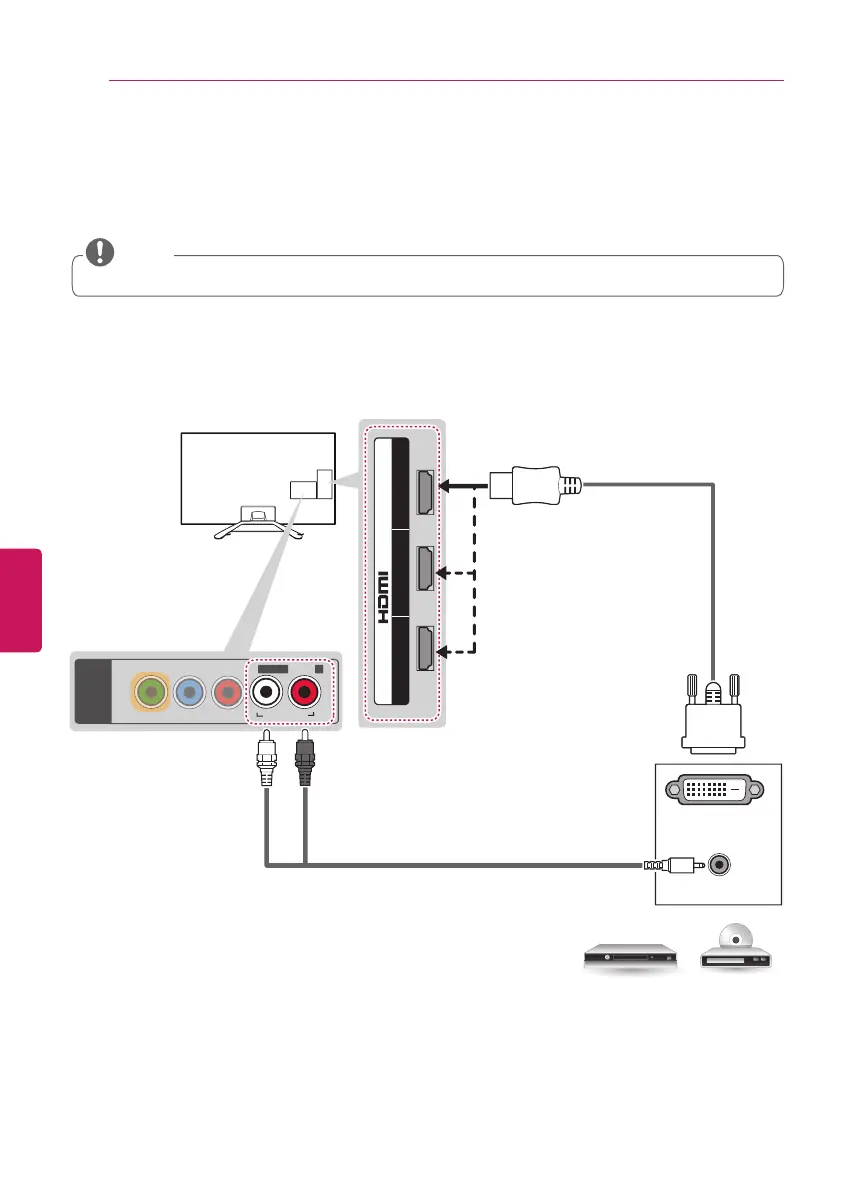

Transmits the digital video signal from an external device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown in the following illustration. To transmit an audio signal,
connect an audio cable.
y
When using the HDMI/DVI cable, Single link is only supported.
NOTE
Choose any HDMI input port to connect.
It does not matter which port you use.
2 1
(ARC)
3
(MHL)
/DVI IN
AUDIO OUT
DVI OUT
VIDE
PC-AUDIO IN
L/MONO AUDIO R
COMPONENT IN
/AV IN
WHITE
RED
(*Not Provided)
(*Not Provided)
DVD / Blu-Ray / HD Cable Box
To Next Page
