ENG
ENGLISH
22
MAKING CONNECTIONS

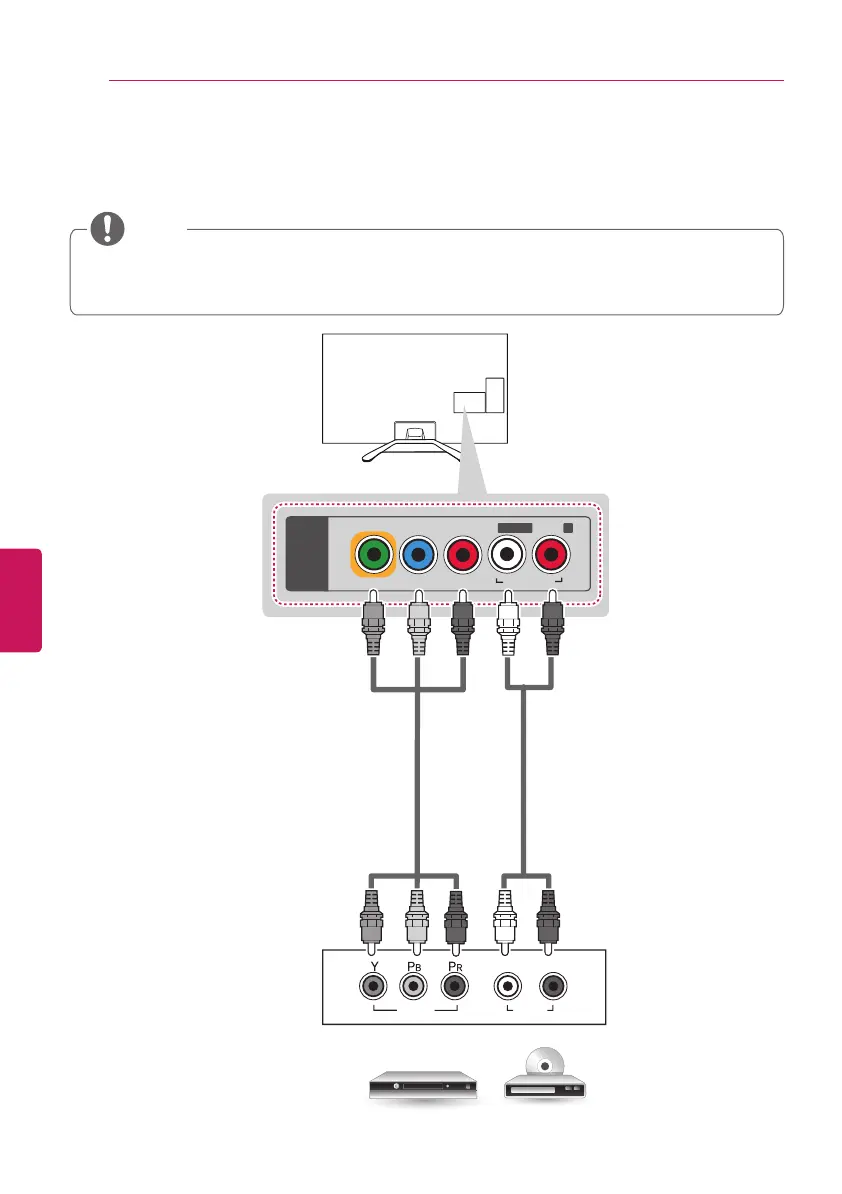

Component Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external
device and the TV with a component cable as shown in the following illustration.
y
If cables are installed incorrectly, it could cause the image to display in black and white or with
distorted color.
y
Check to ensure the cables are matched with the corresponding color connection.
NOTE
AUDIO
VIDEO
L
R
P
B PR
VIDEO
/Y
PC-AUDIO IN
L/MONO AUDIO R
COMPONENT IN
/AV IN
(*Not Provided)
(*Not Provided)
DVD / Blu-Ray / HD Cable Box
GREEN
GREEN
BLUE
BLUE
RED
RED
RED
RED
WHITE
WHITE
To Next Page
