MAKING CONNECTIONS
Component Connection

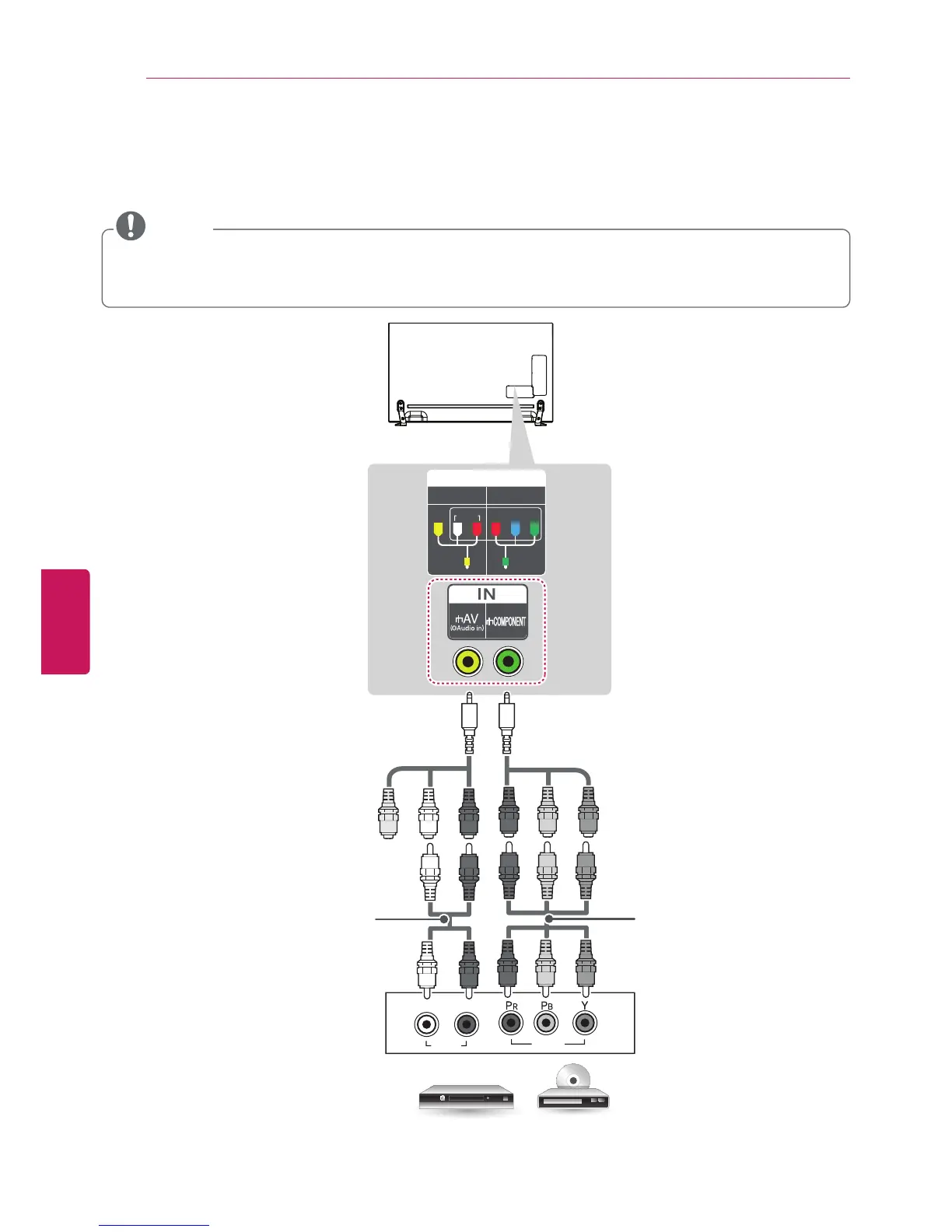

Transmits analog video and audio signals from an external device to the TV. Connect the external
device and the TV with a component cable as shown in the following illustration.
y
If cables are installed incorrectly, it could cause the image to display in black and white or with
distorted color.
y
Check to ensure the cables are matched with the corresponding color connection.
NOTE
IN
COMPONENT AV
VIDEO AUDIO Y P B P R
VIDEO
AUDIO
LR
GREEN
BLUE
RED RED
WHITE
GREEN
YELLOW
YELLOW
WHITE
RED
GREEN
BLUE
RED
WHITE
RED
GREEN
BLUE
RED
(Use the composite video cable provided.) (Use the component video cable provided.)
DVD / Blu-Ray / HD Cable Box
(*Not Provided)(*Not Provided)

LG 55LA9650 Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	54.6 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Supported video modes	720p, 1080i, 1080p
Screen format adjustments	4:3, 14:9, 16:9
Supported graphics resolutions	3840 x 2160
Motion interpolation technology	-
3D	Yes
3D type	Passive
Built-in camera	No
Bundled software	Windows 8 Certified
3D glasses quantity	4
Storage temperature (T-T)	-20 - 60 °C
Supported 3D technologies	LG Cinema 3D
Storage relative humidity (H-H)	70 - 85 %
Operating relative humidity (H-H)	70 - 80 %
Smart modes	Game, Movie, Standard, Vivid
Operating system version	Home Dashboard 3.0
Sound modes	Game, Movie, Music, Sports, Standard
Audio decoders	Dolby Digital
RMS rated power	34 W
Number of speakers	2
Equalizer bands quantity	6
RF ports quantity	1
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio formats supported	AAC, AC3, EAC3, HAAC, MP3, PCM
Image formats supported	JPEG XR
Video formats supported	DIVX HD, MPEG
Product color	Silver
Compatible products	AN-MR400 AN-VC500 AN-VC400 AG-F315
Panel mounting interface	400 x 400 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Operating temperature (T-T)	0 - 40 °C
Remote control type	Magic
Package depth	178 mm
Package width	1295 mm
Package height	840 mm
Package weight	31752 g

Weight and Dimensions

Depth (with stand)	261 mm
Height (with stand)	790 mm
Weight (with stand)	24600 g
Depth (without stand)	- mm
Width (without stand)	1220 mm
Height (without stand)	740 mm
Weight (without stand)	26100 g
