LG 55LB5610 User Manual

(P1101)
30P HD LVDS wafer
51P FHD LVDS wafer
(P1100)
COMP2_L/R_IN
COMP2_Y+/AV_CVBS_IN, COMP2_Pb+/Pr+
AV2_L/R_IN
AV2_CVBS_IN
CK+/-, D0+/-, D1+/-, D2+/-_HDMI2
DDC_SCL/SDA_2, HDMI_CEC
Serial Flash
(8Mbit)
IC1300
SPI_SCK/SDI/SDO/CS
System EEPROM
(256Kbit)
IC104
I2C_SCL/SDA
NAND FLASH
(1Gbit)
IC102
PCM_A[0-7],…
RXA0+/-~RXA4+/-, RXACK+/-
RXB0+/-~RXB4+/-, RXBCK+/-
SPK_R
SPK_L
AMP_SCL/SDA
AUD_MASTER_CLK,
AUD_LRCH,
AUD_LRCK, AUD_SCK
STA380BW
(IC3401)
Main SOC
M1A -256MB 내장
(IC101)
Connector
(P600)
KEY1/2, LED_R, IR
REAR
HDMI1
(JK801)
TU_SCL / SDA
SIF
D_IF
CVBS
Comp1 & AV1
(JK1701)
SPDIF_OUT
SPDIF(Optic)
(JK1001)
4/7
AV2
성장 시장
SIDE
USB
(JK700)
HDMI2(MHL)
(JK803)
CK+/-, D0+/-, D1+/-, D2+/-,_HDMI4, DDC_SCL/SDA_4, HDMI_CEC
SIDE_USB_DM/DP
USB1_OCD/CTL
TPS65281
+5V_USB
MHL_CD_SENSE
HP_L/ROUT, SIDE_HP_MUTE
Headphone
(JK1500)

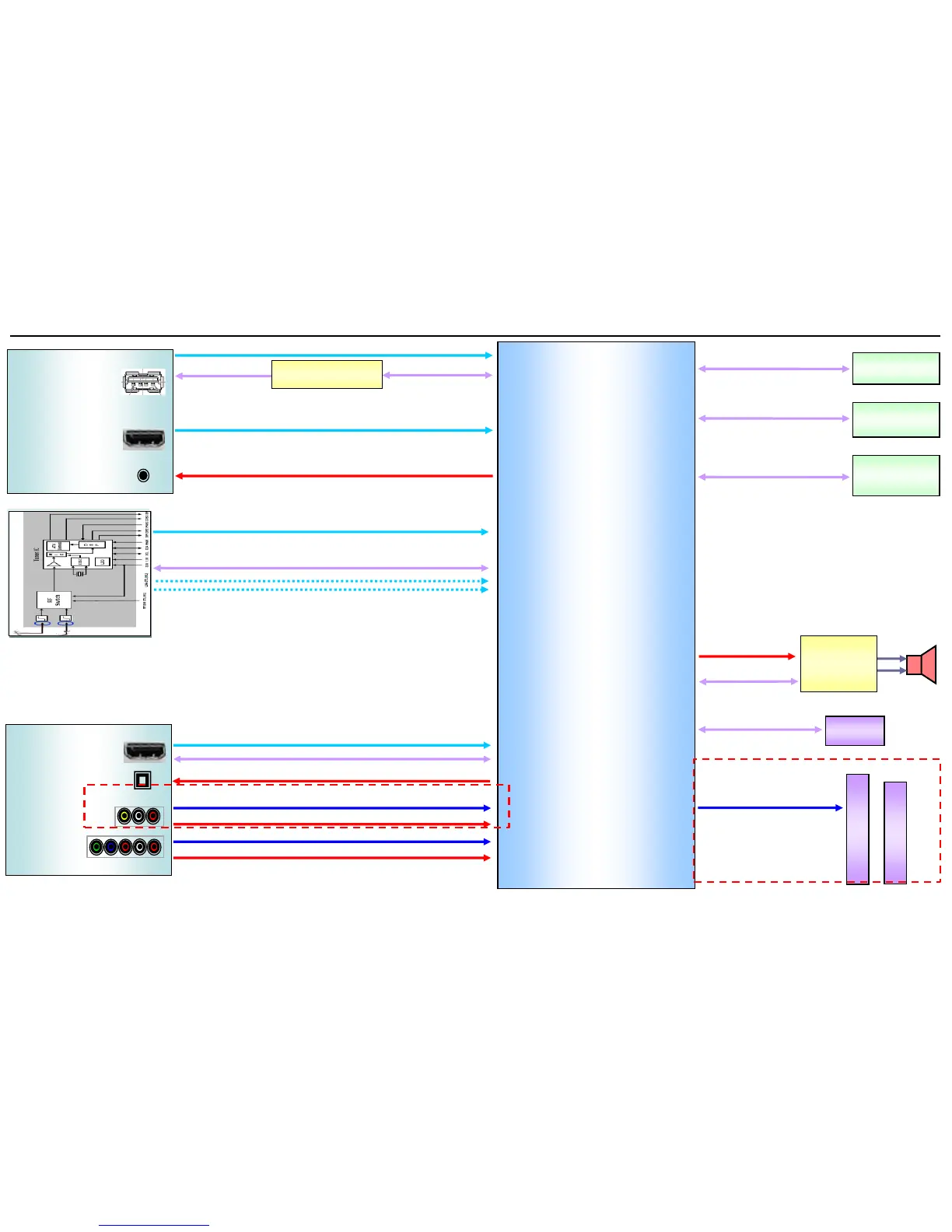

2-3. Block Diagram T/C 2D Model
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

LG 55LB5610 Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	55 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	50 Hz
LED backlighting type	-
Display diagonal (metric)	139 cm
Motion interpolation technology	MCI (Motion Clarity Index) 100
Tuner type	Analog & digital
Digital signal format system	DVB-T
Audio system	Virtual Surround
RMS rated power	20 W
Number of speakers	2
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	- W

Weight and Dimensions

Depth (with stand)	255 mm
Height (with stand)	772 mm
Weight (with stand)	18400 g
Depth (without stand)	57 mm
Width (without stand)	1243 mm
Height (without stand)	725 mm
Weight (without stand)	18000 g
