Component connection

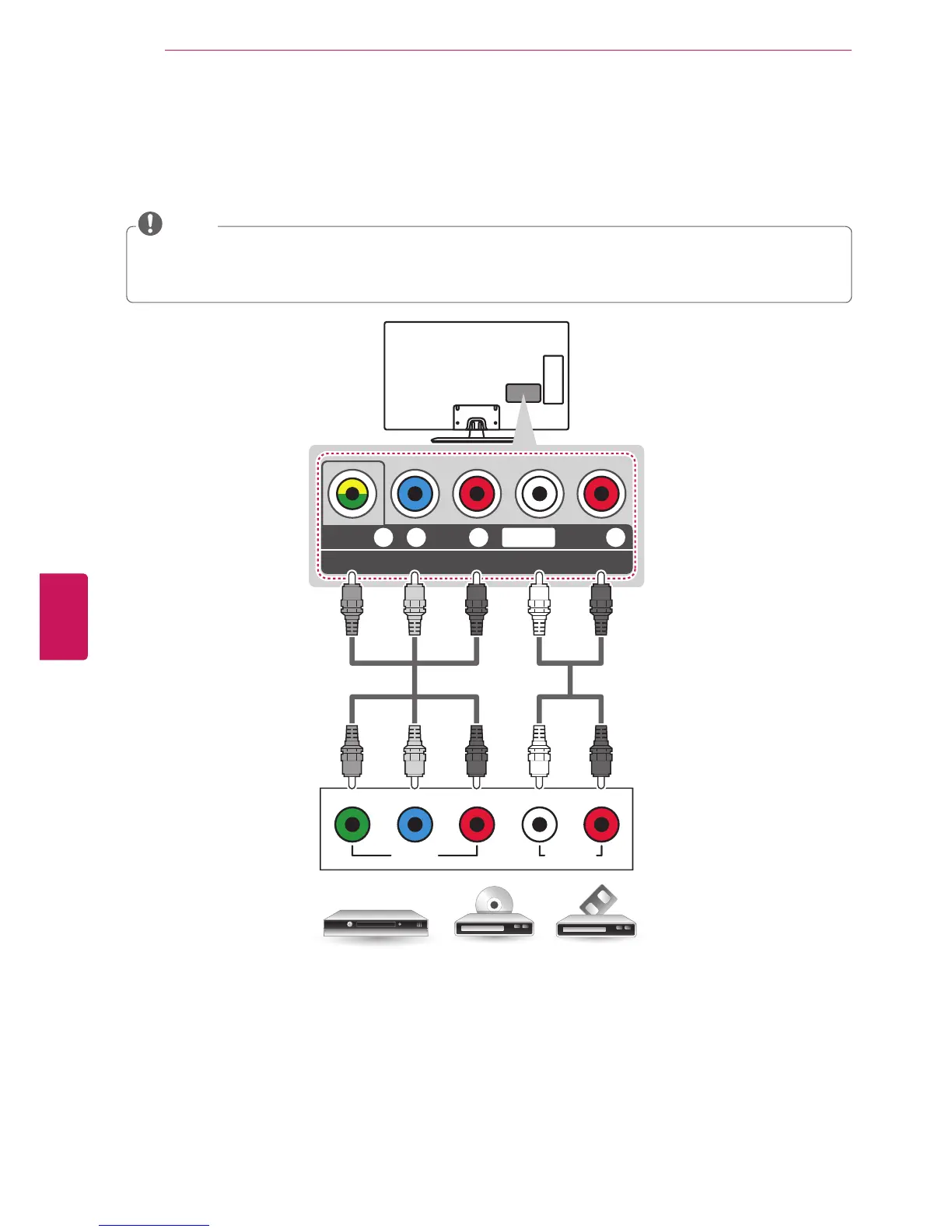

Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with a component cable as shown in the following illustration.
y
If cables are installed incorrectly, it could cause the image to display in black and white or with
distorted color.
y
Check to ensure the cables are matched with the corresponding color connection.
NOTE
COMPONENT IN / AV IN
VIDEO/
PB PR
Y R
AUDIO
L/MONO
PB PR
Y RL
VIDEO AUDIO
VCR / DVD / Blu-Ray / HD Cable Box
GREEN
RED
BLUE
(*Not Provided)
RED
WHITE
GREEN
RED
BLUE
RED
WHITE
(*Not Provided)
To Next Page
