LG 55LW5600 User Manual

IR CODES
'HSHQGLQJRQPRGHO
How to Connect
&RQQHFW\RXUZLUHGUHPRWHFRQWUROWRWKH5HPRWH&RQWUROSRUWRQWKH79
Remote Control IR Codes

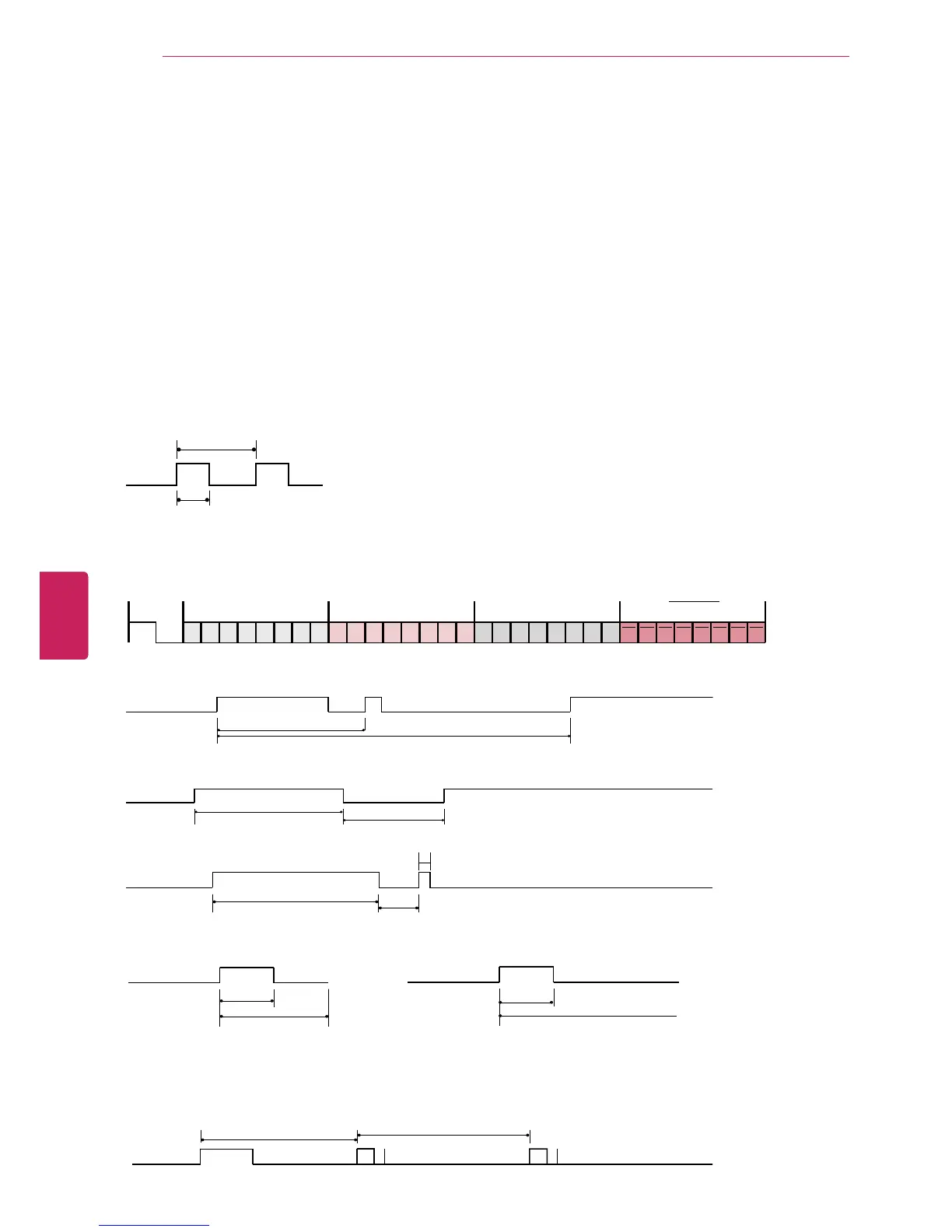

Output waveform
6LQJOHSXOVHPRGXODWHGZLWKN+]VLJQDODWN+]
T1
Tc
Frame configuration
VWIUDPH
C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Lead code Low custom code High custom code Data code Data code
5HSHDWIUDPH
Repeat code
Tf
Lead code
4.5 ms
9 ms
Repeat code
2.25 ms
9 ms
0.55 ms
Bit description
0.56 ms
1.12 ms
0.56 ms
2.24 ms
Bit “0” Bit “1”
Frame interval: Tf
7KHZDYHIRUPLVWUDQVPLWWHGDVORQJDVDNH\LVGHSUHVVHG
Tf Tf
Tf=108ms @455KHz
124
ENG
ENGLISH
IR CODES

LG 55LW5600 Specifications

General

Response time	2.6 ms
Display diagonal	55 \
Native aspect ratio	16:9
LED backlighting type	-
Supported video modes	1080i, 1080p, 720p
Contrast ratio (dynamic)	50000000:1
3D	Yes
Product color	Black
DVI port	No
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	2
Component video (YPbPr/YCbCr) in	1
Consumer Electronics Control (CEC)	Anynet+
Audio formats supported	MP3
Image formats supported	JPG
Video formats supported	DIVX
Smart modes	Cinema, Game, Sports

Weight and Dimensions

Depth (with stand)	338 mm
Height (with stand)	851 mm
Weight (with stand)	26000 g
Depth (without stand)	29.9 mm
Width (without stand)	1293 mm
Height (without stand)	785 mm
Weight (without stand)	22000 g
