MAKING CONNECTIONS
AUDIO
VIDEO
L R
COMPONENT
IN
VIDEO
AUDIO
LP
B
P
R
R
Y
VIDEO
AUDIO
R
L/MONO
AV IN
AUDIO IN (PC)
Component Connection

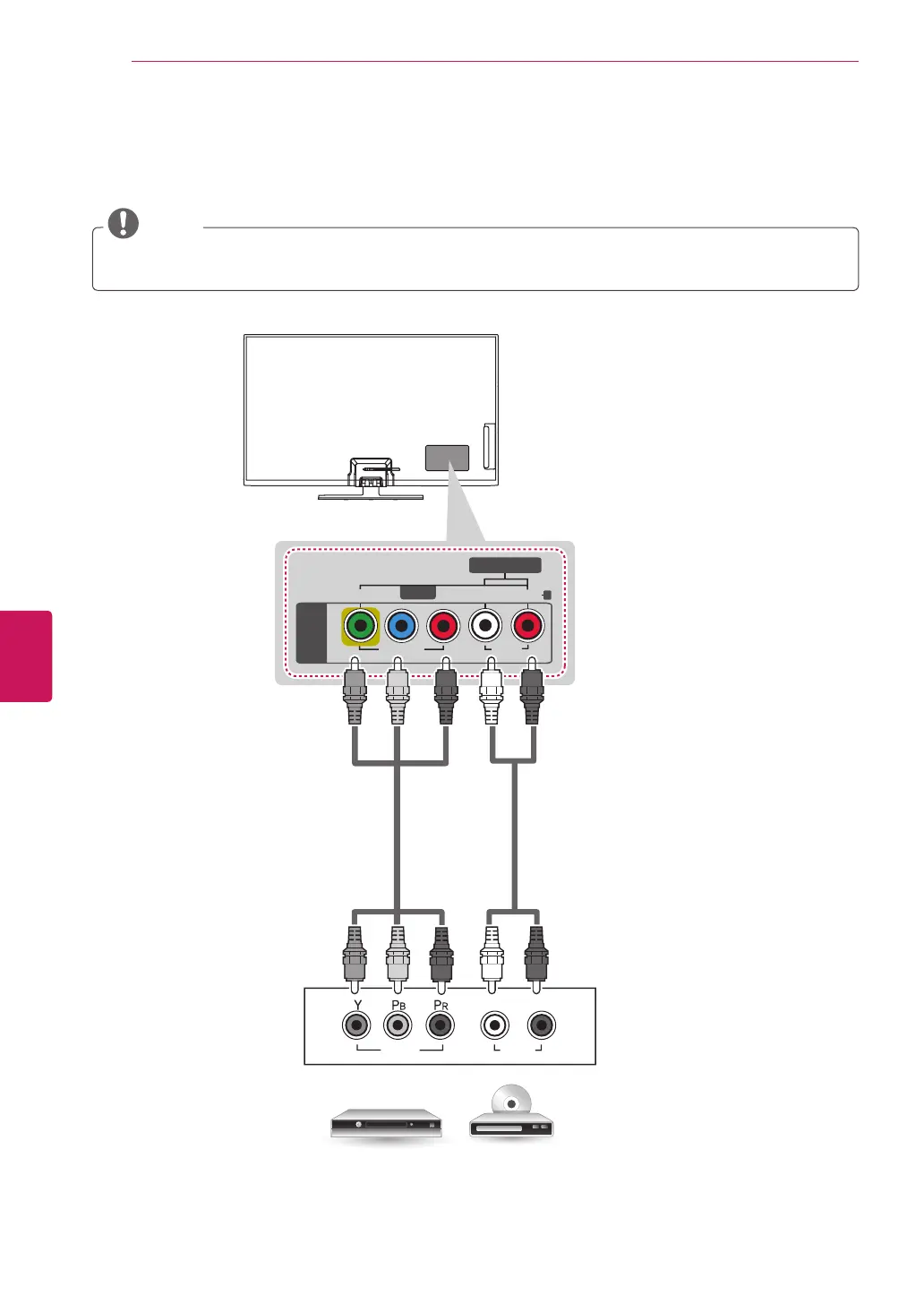

Transmits the analog video and audio signals from an external device to the TV. Connect the external device and the TV
with the component cable as shown in the following illustration.
NOTE
y
If cables are installed incorrectly, it could cause the image to display in black and white or with distorted color.
y
Check to ensure each cable is matched with the corresponding color connection.
(*Not Provided)
(*Not Provided)
DVD / Blu-Ray / HD Cable Box
GREEN
GREEN
BLUEBLUE
REDRED
RED
WHITE
WHITE
RED
To Next Page
