Connecting to an HD receiver, DVD player, or VCR
Connect a HD receiver, DVD player, or VCR to the TV and select an appropriate input mode.
HDMI Connection
HDMI is the best way to connect a device.

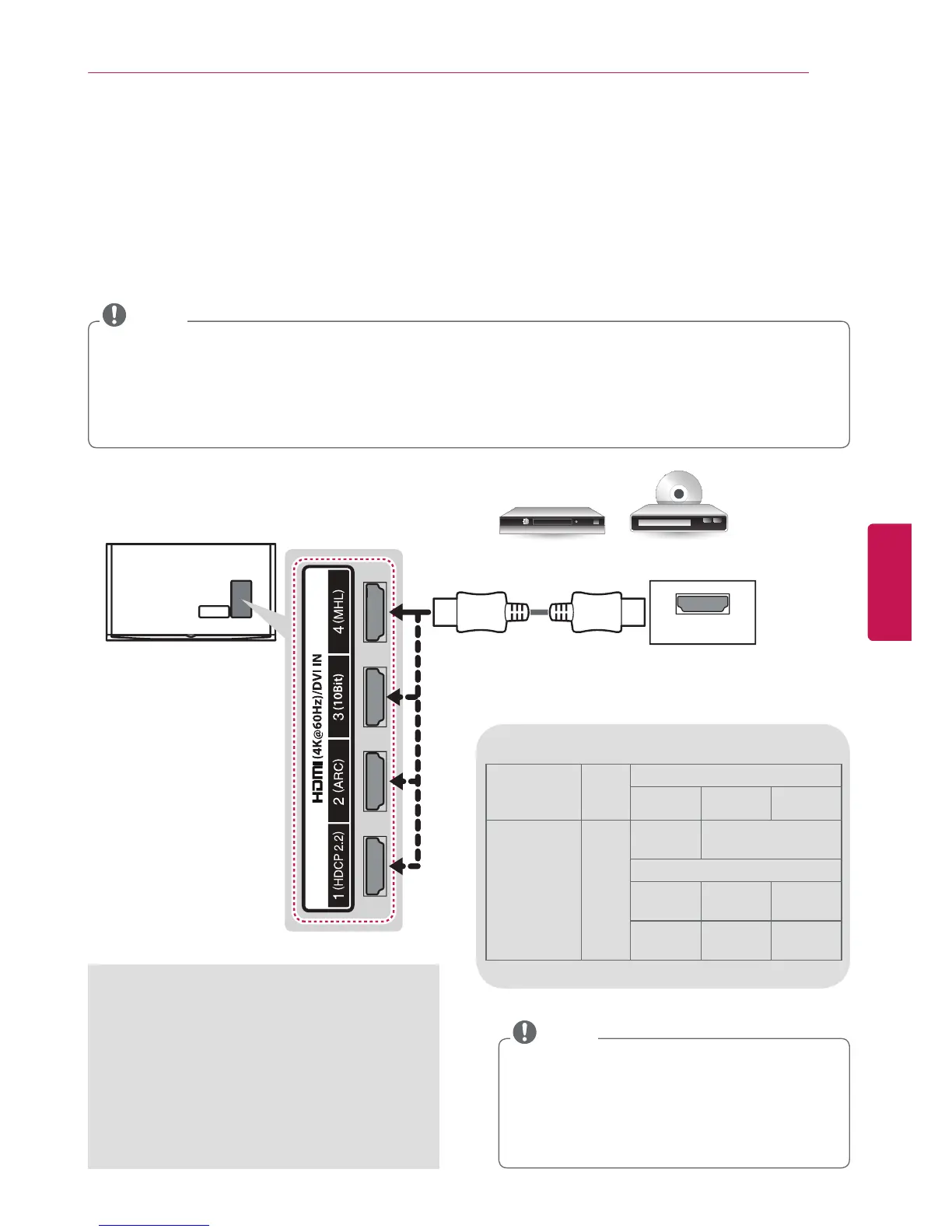

Transmits digital video and audio signals from an external device to the TV. Connect the external device
and the TV with the HDMI cable as shown in the following illustration.
f Use the latest High Speed HDMI™ Cable that supports CEC (Customer Electronics Control) function.
f High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
f HDMI Audio Supported Format: PCM (Up to 192 kHz, 32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz)
-> DTS is not supported.
f When you use an HDMI cable(HDMI port3), it is recommended that you use the cable provided. If
you use a regular HDMI cable, use a high-speed HDMI cable (3m or less). (Depending upon model.)
NOTE
Choose any HDMI input port to connect.
It does not matter which port you use.
HDMI
Blu-Ray / HD Cable Box / HD STB / DVD
ARC (Audio Return Channel)
f When connected with a high-speed
HDMI cable, digital audio can be sent to a
compactible device without an additional
optical audio cable.
f ARC is only supported on the HDMI IN 2
(ARC) port. An external audio device that
supports ARC should be connected to HDMI
IN 2 (ARC) if you wish to use ARC.
f HDMI specifications may be different for
each input port, so make sure to check the
device specifications before connecting.
f Contact customer service for more
information on the HDMI specifications of
each input port.
NOTE
4K@ 60Hz Support Format
Resolution
Frame
rate
(Hz)
Color Depth / Chroma Sampling
8 bit 10 bit 12 bit
3840 X 2160p
4096 X 2160p
59.94
60.00
YCbCr
4:2:0
YCbCr 4:2:0
1
YCbCr 4:2:2
1
YCbCr
4:4:4
1
RGB
4:4:4
1
1
Supported at HDMI3 Port only
HDMI Cable
To Next Page
