27
ENGLISH
MAKING CONNECTIONS
Composite Connection

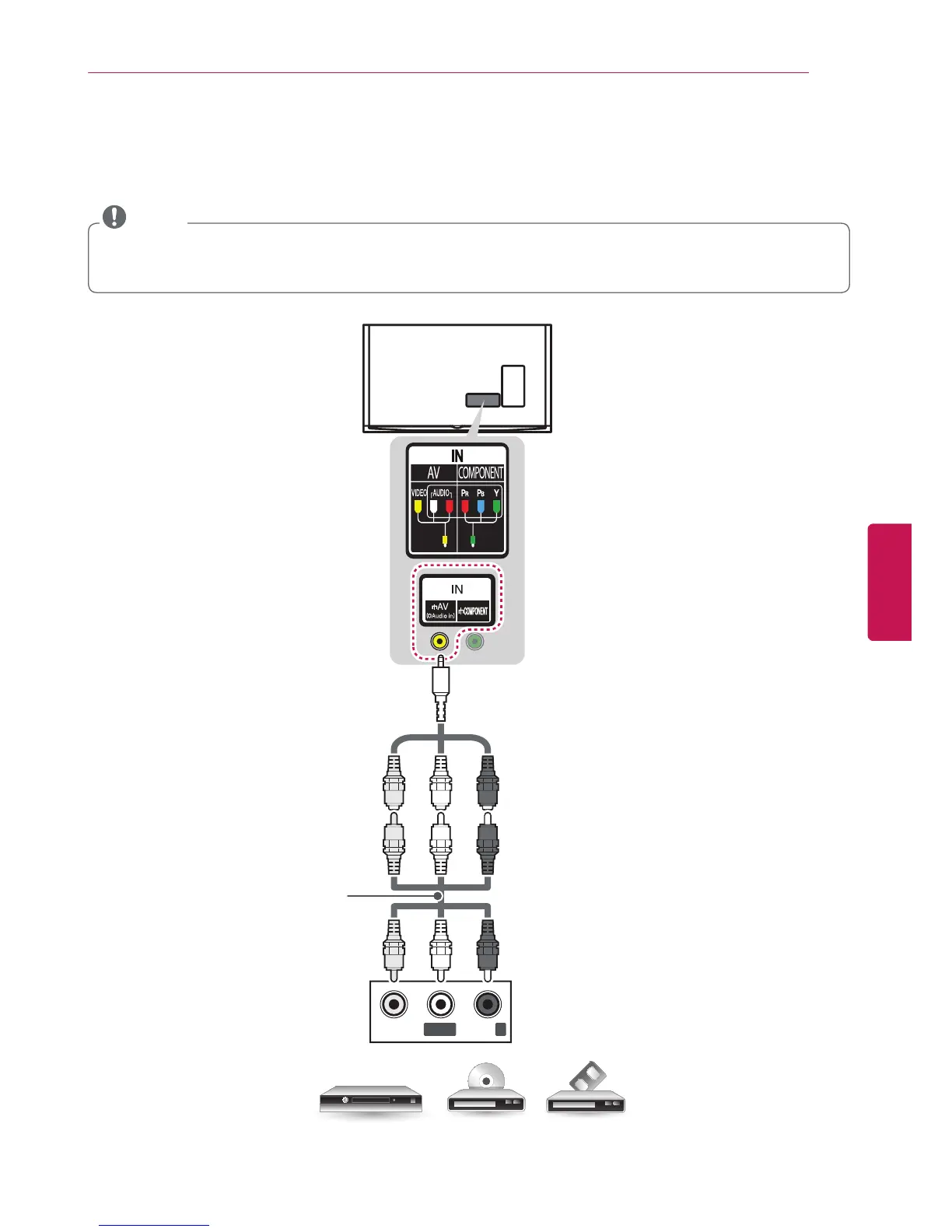

Transmits analog video and audio signals from an external device to the TV. Connect the external
device and the TV with the composite cable as shown in the following illustration.
f If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack
of the TV.
f Check to ensure the cables are matched with the corresponding color connection.
NOTE
VIDEO
L(MONO)
AUDIO
R
YELLOW YELLOW
WHITEWHITE
REDRED
Blu-Ray / HD Cable Box / DVD
(*Not provided)
YELLOW
(Use the composite video cable provided.)
To Next Page
