LG BD550 User Manual

16 Installation
Installation
3

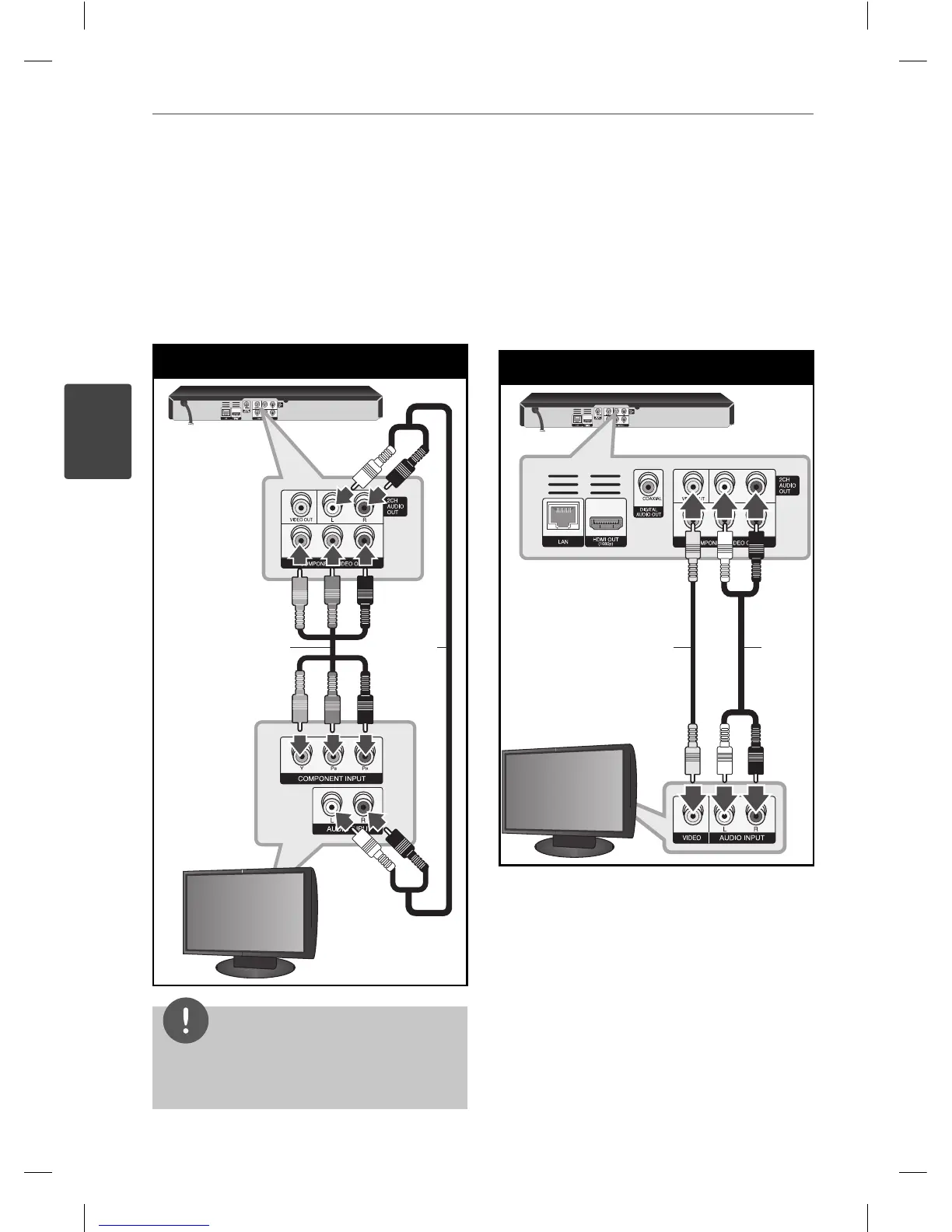

Component Video Connection
Connect the COMPONENT VIDEO OUT jacks on
the player to the corresponding input jacks on
the TV using component video cable. Connect
the left and right AUDIO OUT jacks of the
player to the audio left and right IN jacks on
the TV using the audio cables.
Component Connection
Component
video cable
Audio
cable
BD Player
TV
NOTE
When you use COMPONENT VIDEO OUT
connection, you can change the resolution for the
output. (Refer to “Resolution setting” on page 17.)
Video/Audio (Left/Right)
Connection
Connect the VIDEO OUT jack on the player to
the video in jack on the TV using a video cable.
Connect the left and right AUDIO OUT jacks of
the player to the audio left and right IN jacks
on the TV using the audio cables.
Video/Audio Connection
Video cable Audio
cable
BD Player
TV
